Paytec Eagle - Page 6

6

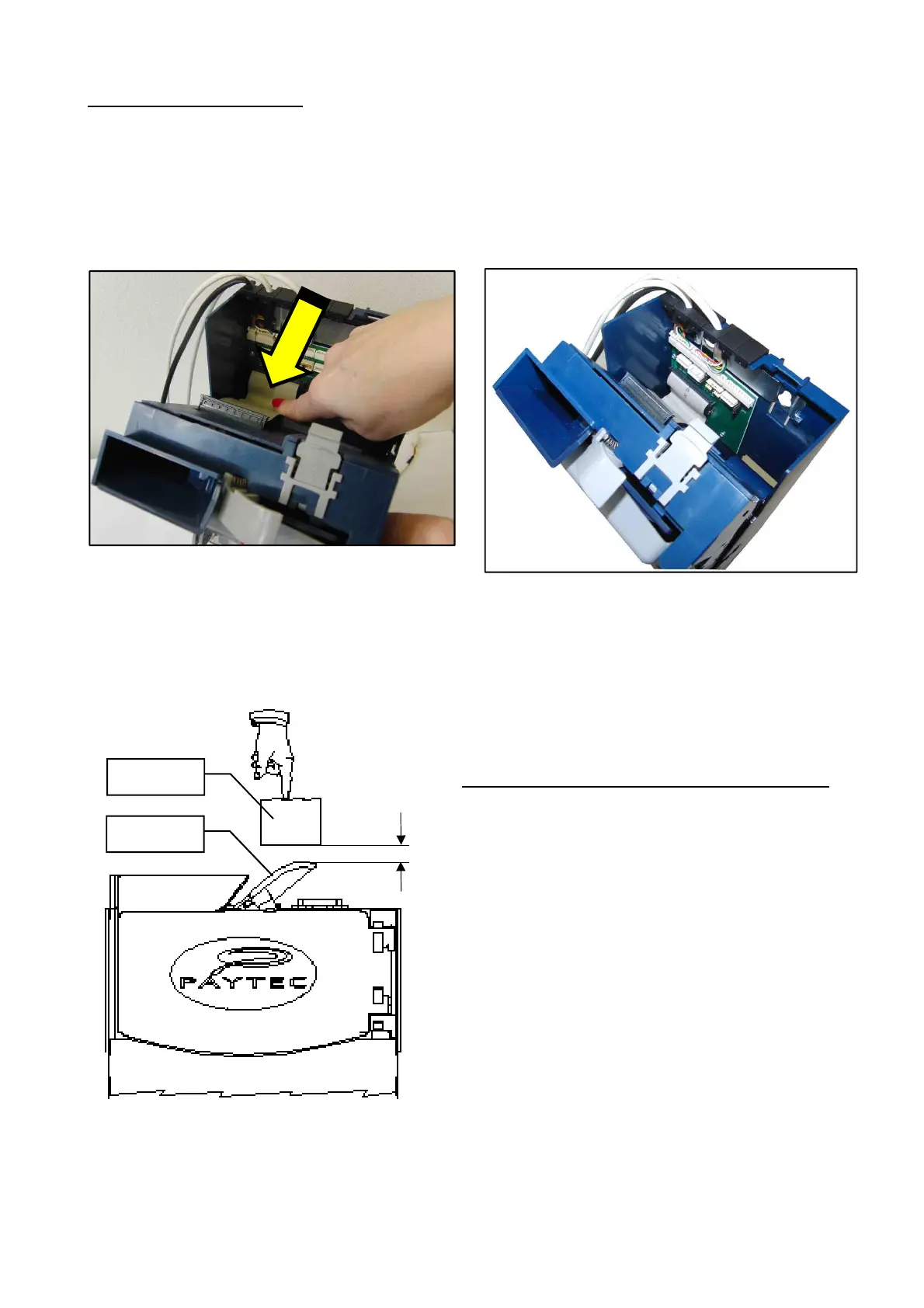

Repositioning the selector
When repositioning the selector, please check the flat cable bends correctly (keep the flat cable pressed while
rotating the selector.
While rotating the selector back to its position (Fig.1E), keep the flat cable pressed so that it bends correctly
downwards (Fig.1F).
Checking coin recovery lever and alignments
• The coin recovery lever must be unconstrained (2-3
mm. from the lever of the VM - Fig.1G).
• Press the coin recovery lever/button on VM and check
the lever on EAGLE causes the validator door to
open/close well.
• The entry coin chute must be perfectly aligned with the
machine’s; insert a few coins (system OFF) and check
they fall in the recovery cup of the VM.
• Check the payout channel of EAGLE is perfectly
aligned with the payout recovery cup of the VM.
• The VM must be installed on a flat surface.
Fig.1F
Fig.1E
Fig.1G
3 mm
LEVER VM
REC.LEVER
