Removing tube group

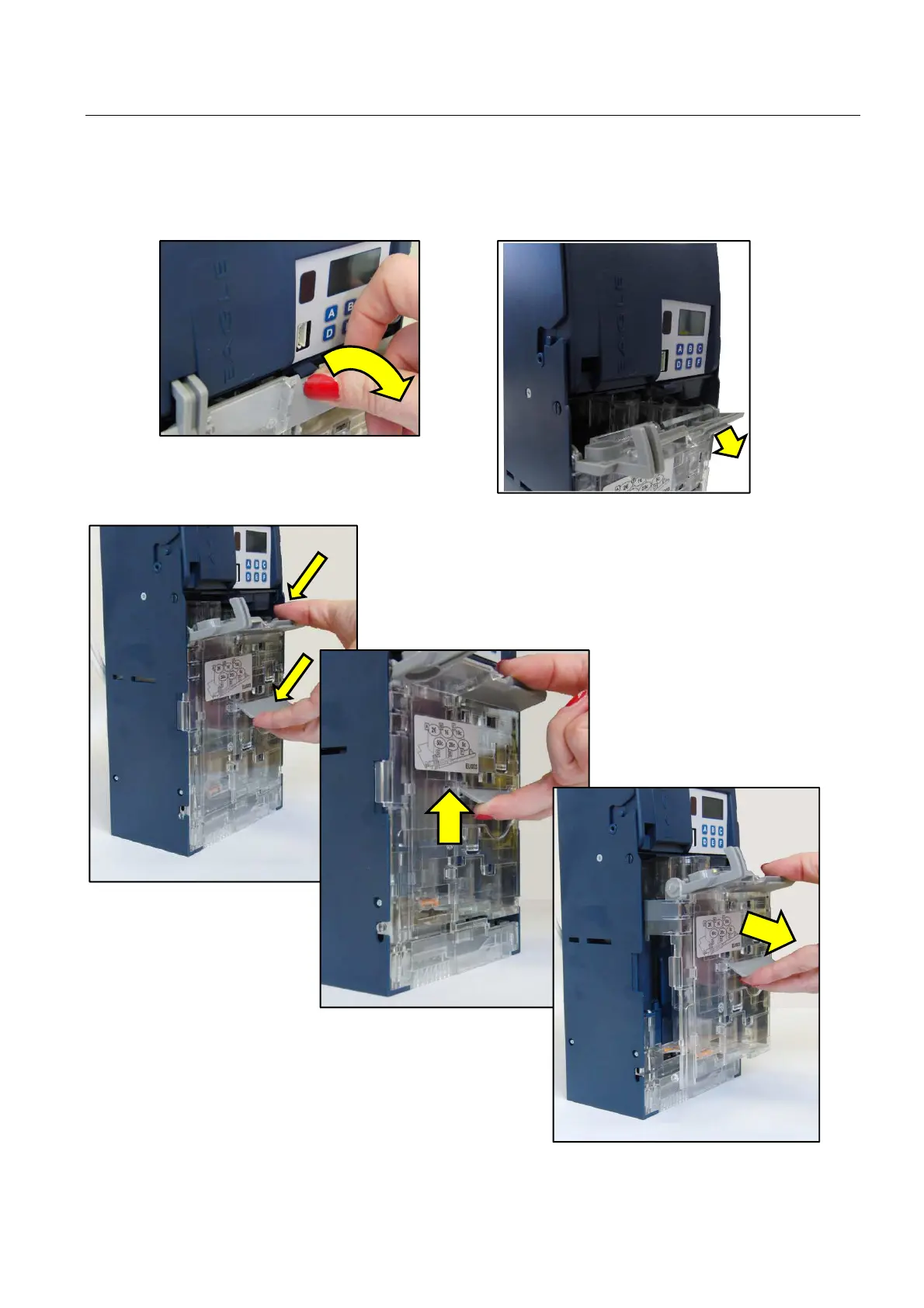

1. Lift up the release latch and lower the winglet (Fig.3A-3B).
2. Grab the tube group as in Fig.4A.
3. Lift up the tube group (Fig.4B) so that tubes snap free of their ejectors.
4. Pull out the tube group (Fig.4C).
Fig.3A
Fig.3B
Fig.4A
RELEASE TUBE GROUP
Fig.4B
LIFT UP TUBE GROUP
Fig.4C
EXTRACT TUBE GROUP
