Functions SLIDES - MOVE
Should pullers get stuck, this function is used to reposition them by activating the three ejection motors in manual
mode.
The operations must be made with the changegiver ON (it is not necessary to activate serial protocol, though).
Function SLIDES: an attempt is made to automatically
reposition the pullers being stuck (the puller must be stuck in a
position where the nail on the motor shaft can rotate and fit the
carving on the puller again).
Function MOVE: an attempt is made to manually reposition
pullers (with short rotations of the motor shaft).
Using function SLIDES

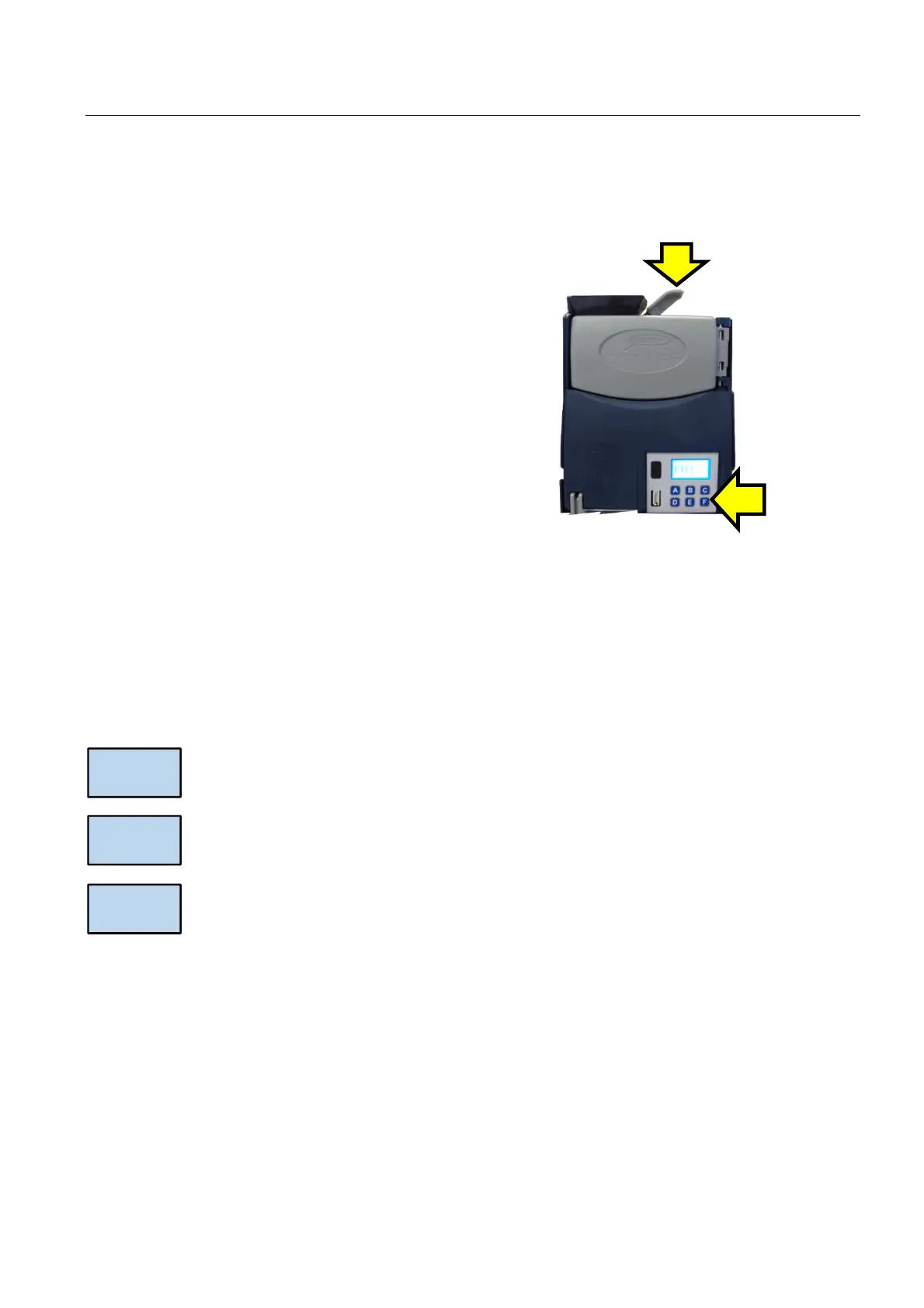

Press F while keeping the Escrow lever pressed.
The message “Slides” is displayed (release the lever).
Press F again to activate the function: a sequence of six letters (P or M) is displayed representing the six pullers
(ABCDEF).
P = puller in its correct position.
M = puller out of position.
Every puller is in its correct position.
Puller F is out of position.
Press F to reposition the puller (the message “Slide ON” is displayed).
Message “Slide ON”.
Press D to exit the function or switch the changegiver OFF. If the puller does not return to its
correct position, you must perform a manual procedure (function MOVE).
PPPPPP
PPPPPM
Sl.ON
Fig.12
