PDi PDI-P20LCDC - Wall Mounting on Supplied Bracket; Bracket Components; Pillow Speaker Switch Note

15 Document Number: PD196-103 Rev 1

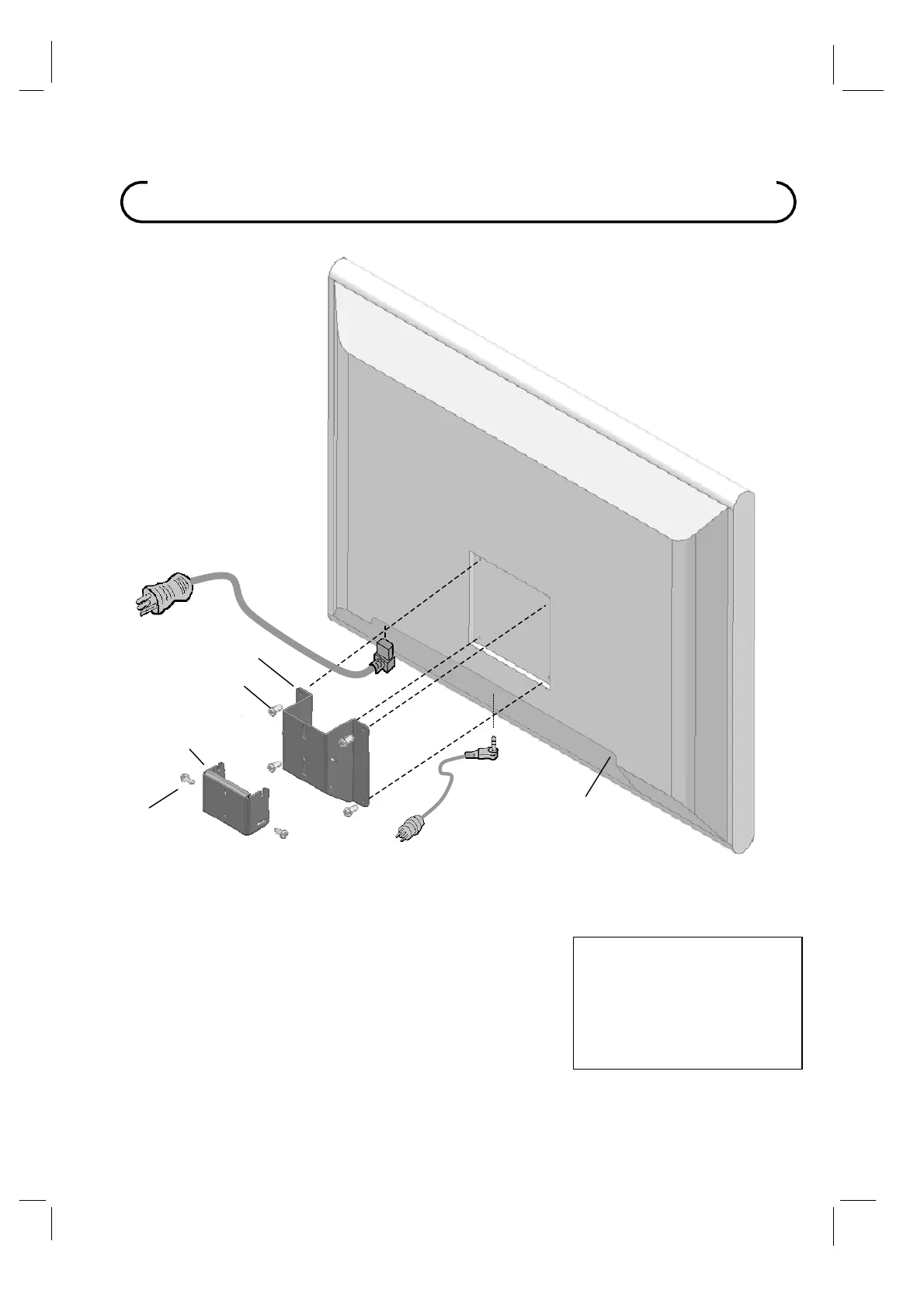

Figure 2
Pillow S
p
eaker Jum
p
e
r
A
C Power Cord
M4 x 6mm
Screws (4)
Pilfer Screws (2)
CATV Coax Connector
(Coax Not Shown)
Back Mount
Wall
Mount
Wall Mountin
g
on Su
pp
lied Bracket
Note: Make sure the pillow speaker
selection switch is set to the correct
setting before plugging in the jumper.
The switch changes the voltage
supplied to the pillow speaker, and
could overdrive the pillow speaker if
incorrectly set
