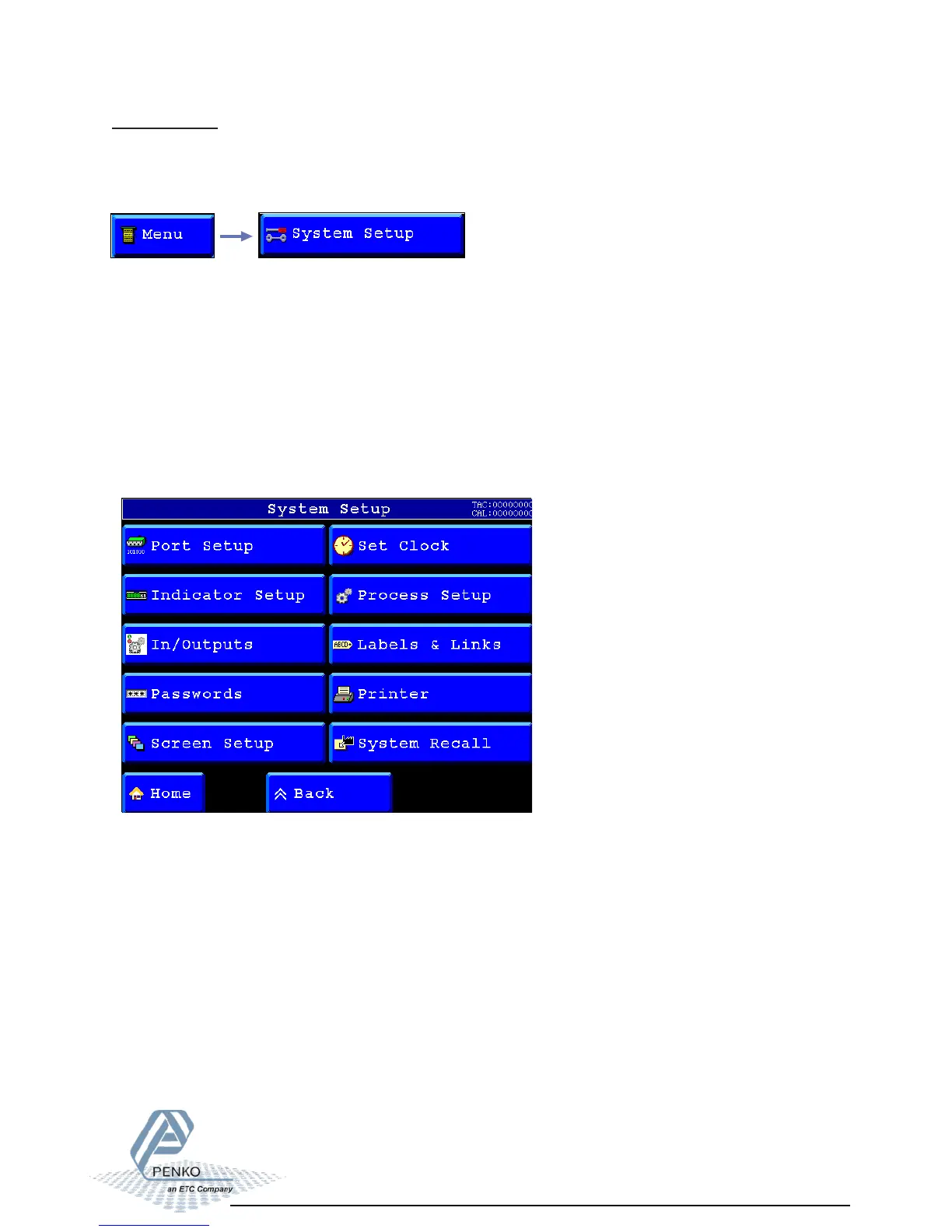

FLEX 2100
11
S
yst
em setu
p
:
F
rom
t
his m
enu it
s pos
sible t
o acc
es
s
all s
et
t
ings
f
or t
he f
lex.
T
o go t
o t
his
m
enu,
selec
t
“S
ys
t
em s
et
up” f
r
om
t
he Main m
enu.
S
y
st
em s
et
up 01
Dif
f
er
ent
opt
ions
ar
e:
- Po
rt
Setup
-
I
ndicat
or S
et
up
-
In
/Ou
tp
u
ts
- Pa
sswo
rd
s
- Scre
en
Se
tup
- Se
t
Cl
o
ck
- Pro
cess se
tup
-
Labels and link
s
- Pri
nter
- Syst
e
m Re
ca
l
l
10
12
Table of Contents
Safety Information
2
Wiring Connections
4
Loadcells, In/Outputs and Power Supply
4
Profibus and Ethernet
6
Dimensions Flex 2100 Panel Mount
7
Stainless Steel
8
Button Explanation
9
Edit Buttons
9
Leave Menu Buttons
9
ON/OFF Buttons
9
Recipe Menu
10
Recipe Number
10
Name
10
Edit
10
System Setup
11
Port Setup
12
Address
12
Baudrate
12
Stopbits
12
CAN 1 Port
13
Buslink Address
13
Buslink Subaddress
13
USB Port
13
USB Buslink Active
14
Profibus Setup
14
Indicator Setup
17
Formatting
18
Mode
19
Max Load
20
Sample Rate
21
Certified Text
21
Class
21
Filter
22
Overall
22
Digital
22
Calibration
24
Show
24
Weight
24
Points
25
Transducers
28
Geometric
29
Indicators
30
Recall
31
External Devices
31
In/Outputs
32
For Flex 2100 Indicator Only
33
Positive Hysteresis
34
Negative Hysteresis
34
DAC Setup
35
For Flex 2100 Indicator
35
DAC Calibrate
36
USB Stick
36
Passwords
38
Screen Setup
39
Screens
39
Screen Active
40
Buttons
41
Select Colour
42
Header Background
42
Header Text
42
Element Background
43
Element Text
43
Menu Background
43
Disabled Text
44
Element Readout
44
Button Face
44
Bar Levels
44
Set Levels
45
Marker Trigger
45
Calibrate Screen
45
Backlight and Buzzer
46
Key Beep
46
Visualization Priority
46
Company Name
46
Extendend Register for E-Mark
48
Printer
50
Printer Layout
50
Header
51
Footer
51
Printer Port
51
Ethernet Report
52
USB Report
52
System Recall
52
Extended Registers
53
Scope
54
Log
54
Configuration Settings
57
Error Codes Explained
63
Weigher Error Code
63
Profibus Protocol Description
64
Cutout FLEX2100 Panelmount
65
