PENKO FLEX2100 - Profibus & Ethernet Ports

FLEX 2100
6

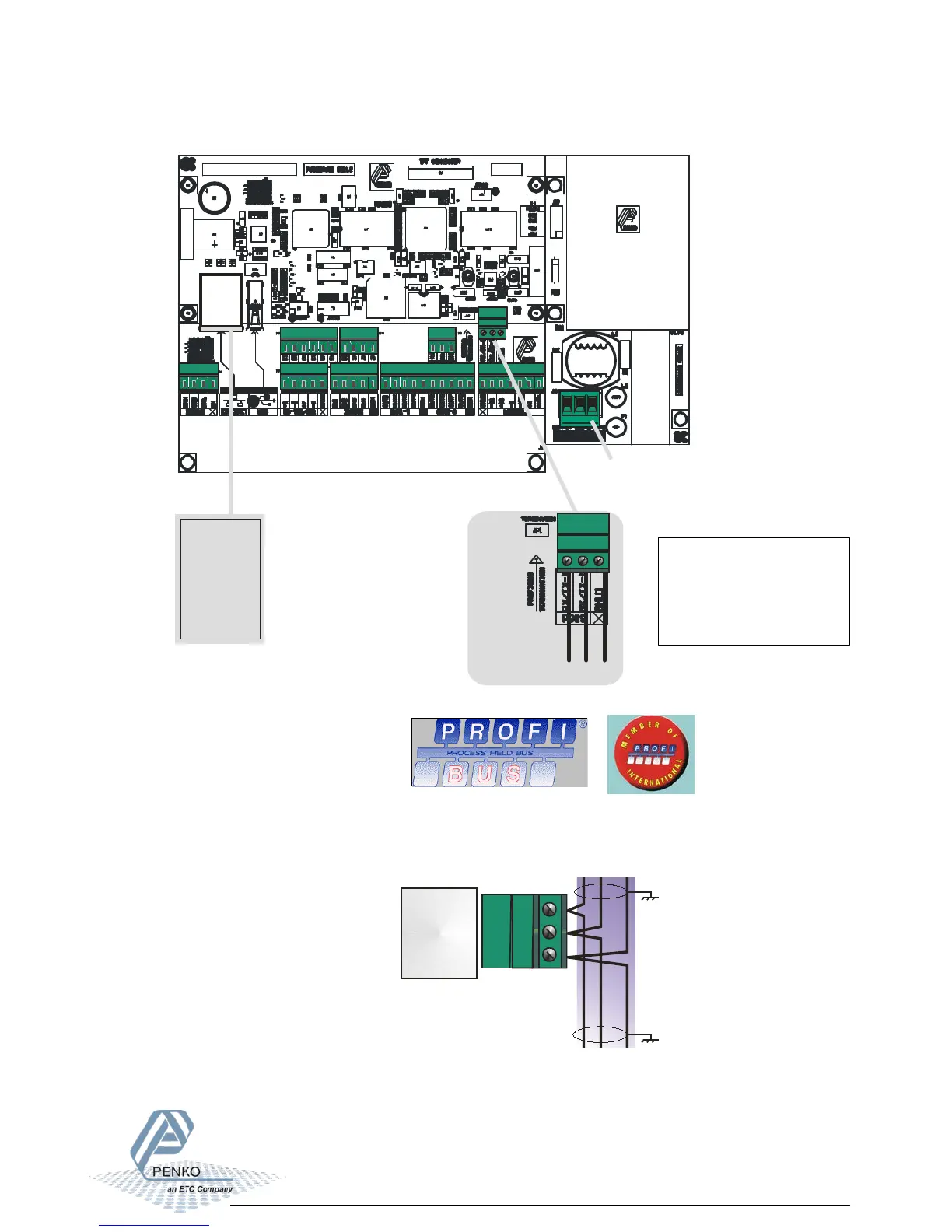

PROFIBUS PORT CONNECTIONS
RxD/Tx D-P
Profibus
cable.
WIRING CONNECTIONS:
PROFIBUS & ETHERNET
Wiring connections 03
earth
B A
LB
LF1S028
0317M
RJ-45 Ethernet connector
led functions:
Green= Link
Yellow= Active
1 = td+
2 = td-
3 = rd+
4 = not used
5 = not used
6 = rd-
7 = not used
8 = not used
SHIELD
RxD/Tx D-N
Place jumper
for profibus
termination
CE only;
100-240 Vac POWER SUPPLY VERSION
Main board revision F
or higher has a double
dip switch for Profibus
termination
