SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
A4 Shuttering

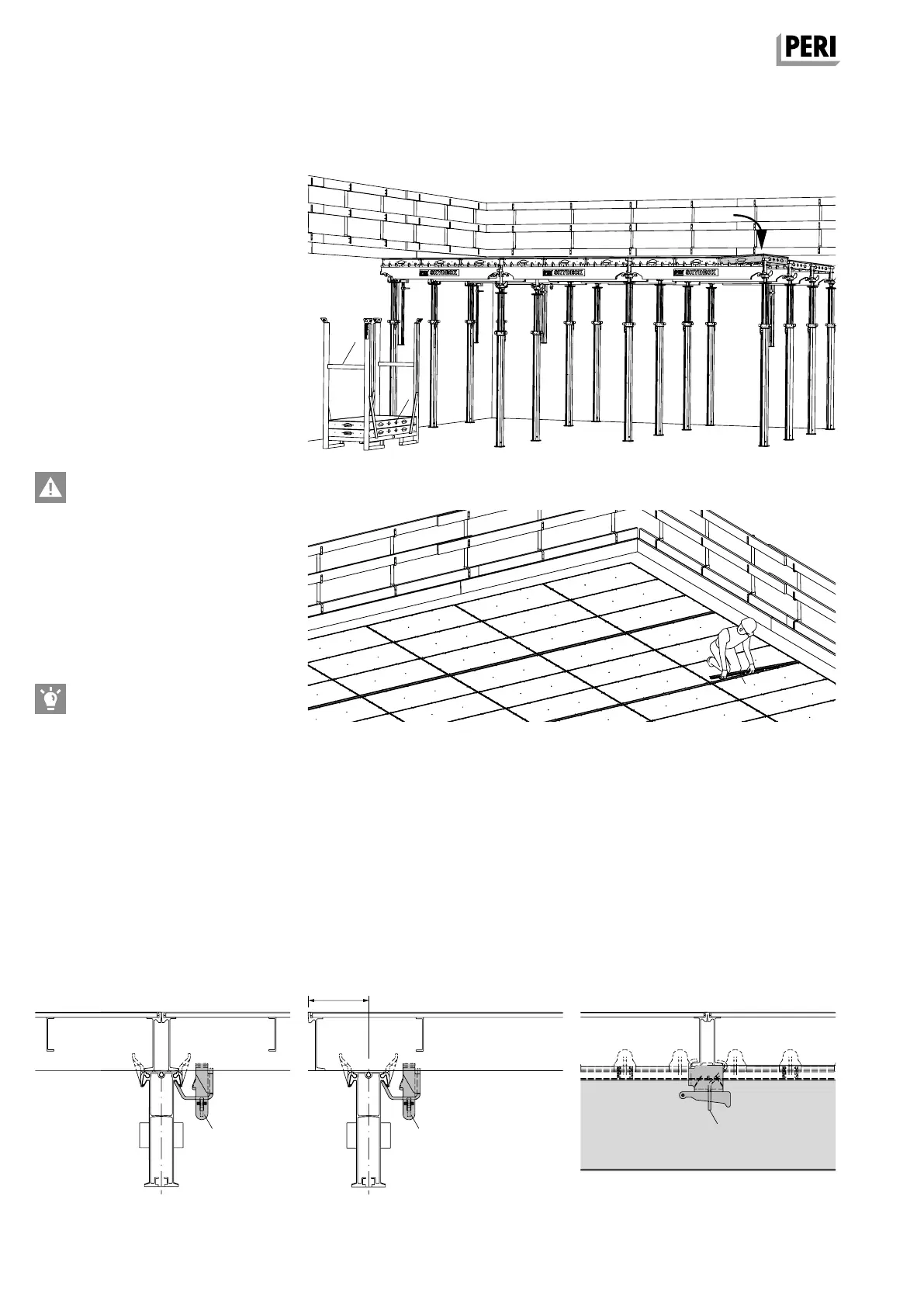

Shuttering the casting segment
Set down Pallet SD (5) with panels (3)
onto the forming area. Place panels in
the main beams. Make empty pallets
available in preparation for the striking
process. (Fig. A4.18)
1. Shutter the standard fields until there
is no more space for the Main Beam
SLT 225 or Compensation Beam
SLT150.
2. Form the infill areas. See A5.
3. Continually insert Cover Strip SAL (4).
(Fig. A4.19)
4. Thinly spray the forming area with a
release agent – also from below if
used for the first time.
Risk of slipping!
The forming area becomes slippery
through the use of release agents!
– Be extremely careful when access-
ing forming areas after spraying!
– Weather conditions are to be tak-
en into account!
Regarding the tightness of the panel
joints, e.g. for casting segments/setting
of stopends, push the panels tightly
together and secure on the last main
beam with Panel Wedge Clips SPKK
(20).
(Fig. A4.20 – Fig. A4.22)
Panel Wedge Clip SPKK
The panel wedge clip is used to connect
2 panels with one main beam.
Possible applications
1. Panel joint in the middle of main
beam
Fig. A4.20
Fig. A4.18
Fig. A4.19
2. Overlapping panel Side view
Fig. A4.21 Fig. A4.22
