SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration

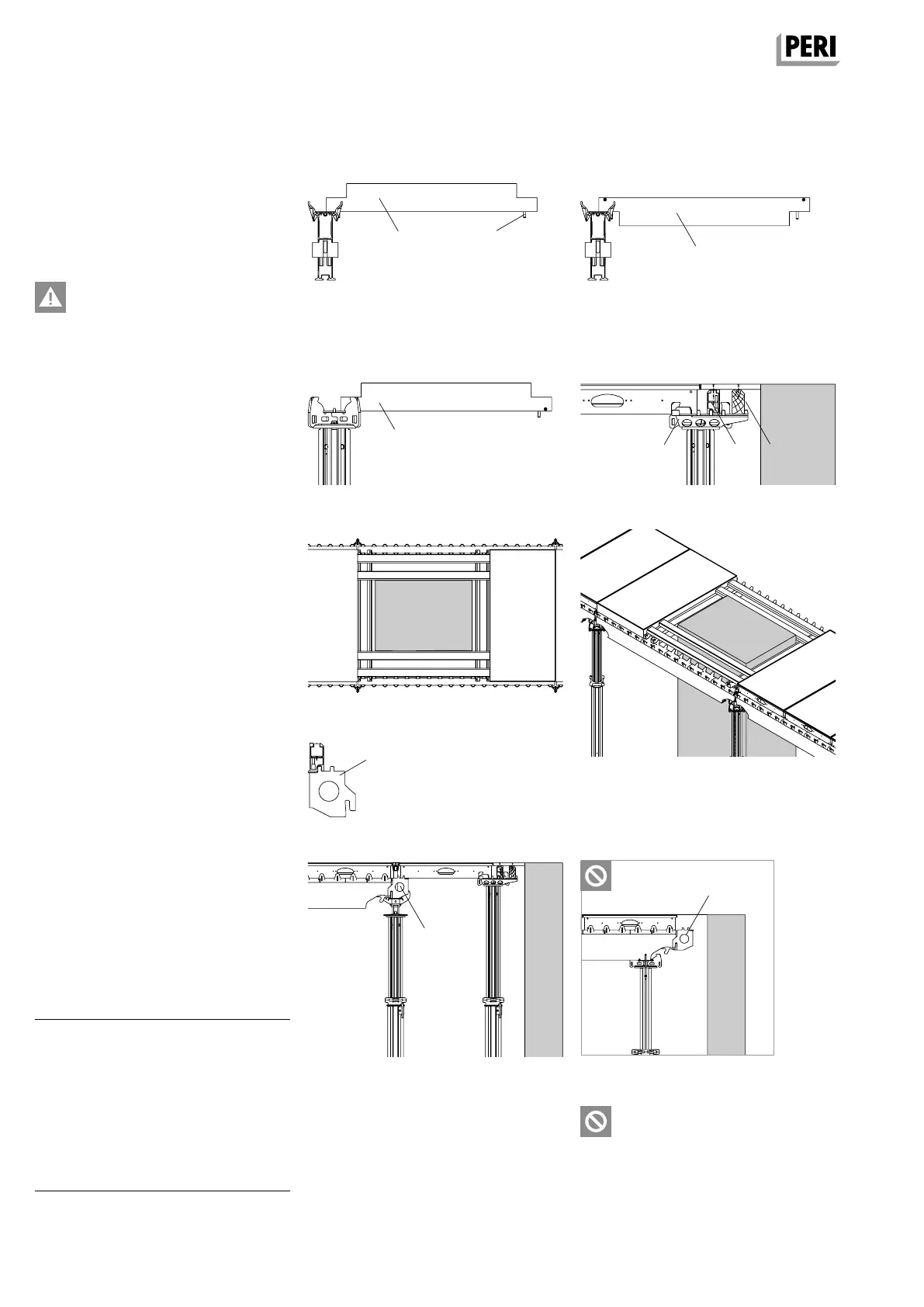

A5 Compensations
System components
For the realization of compensations
and shuttering of columns, a range of
system components is available.
Secure filler plates with nails!
Edge Beam SRT 150-2,
SRT 75
Install vertically (Fig. A5.01) or
suspended. (Fig. A5.02)
The locking pin (9.1/10.1) secures
the Edge Beam SRT 150 (9) or
SRT 75 (10):
– to the Main Beam SLT in a longitudi-
nal direction. (Fig. A5.01 + A5.02)
– to the Prophead SSK in a transverse
direction. (Fig. A5.03)
– to the Combihead SCK (7) in a longi-
tudinal direction. (Fig. A5.04)
– in the End Support SSL (11) in a longi-
tudinal direction. (Fig. A5.07)
Filler Timber SPH
Install Filler Timber SPH (12) vertically or
horizontally.
– to the Combihead SCK. (Fig. A5.04)
– nailed laterally on the panel.
– horizontally, transverse to the sus-
pended Edge Beam SRT. (Fig. A5.05
+ A5.06)
End Support SSL
Use the End Support SSL as height ad-
justment for the transition from a stand-
ard bay to an infill area.
(Fig. A5.07)
The End Support SSL must always be
directly supported by means of a Prop-
head, Drophead or Combihead.
(Fig. A5.08)
Components
2 Main Beam SLT
3 Panel SDP
7 Combihead SCK
9 Edge Beam SRT-2 150
9* Edge Beam SRT-2 150, suspended
10 Edge Beam SRT-2 75
10* Edge Beam SRT-2 75, suspended
11 End Support SSL
12 Filler Timber SPH
SRT vertical
Fig. A5.01 Fig. A5.02
Fig. A5.03 Fig. A5.04
Fig. A5.07
Fig. A5.05
Fig. A5.06
Fig. A5.09Fig. A5.08
No End Support SSL without any direct
support through Prophead, Drophead or
Combihead.
SRT suspended*
The asterisk (*) refers to the installation
in a suspended position.
End Support SSL
