39
23
23
31
39
24
24.1
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
A7 Horizontal bracing
General
– Do not access the forming area be-
fore the formwork has been hori-
zontally anchored!
– Do not access the cantilevers be-
fore the bracing has been mount-
ed in a form-fitting manner!
Formwork positioned on open building
edges or concreting sections, is to be
secured against horizontal loads by
means of bracing.
Cantilevers, e.g. on edge bay, must be
additionally vertically braced in order to
prevent any tilting.
Example calculation: see Transfer of
horizontal loads from a casting seg-
ment.
Bracing of the inner bay
– Maintain spacings
– Bays must be braced longitudinally
and horizontally
Assembly
1. Mount Base Plate on a sufficiently
load-bearing surface area, e.g. using
PERI Anchor Bolt 14/20x130, Item no.
124777. Take into consideration the
Technical Data Sheet!
2. Attach Anchor Chain to the panels:
– In the longitudinal direction, attach
Anchor Chain (23) to the Tension
Sleeve SAO (39). (Fig. A7.03)
– In the transverse direction, connect
panels to scaffold tube (31). Wrap
Chain (23) around the scaffold tube.
(Fig. A7.03a)
3. Secure Anchor Chain to Base Plate
using bolts, and secure bolts by
means of cotter pins. (Fig. A7.03b)
Components
23 Anchor Chain (permissible ten-
sion force = 3 kN)
24 Base Plate RS
24.1 Anchor Bolt PERI 14/20 x 130
31 Scaffold Tube
39 Tension Sleeve SAO

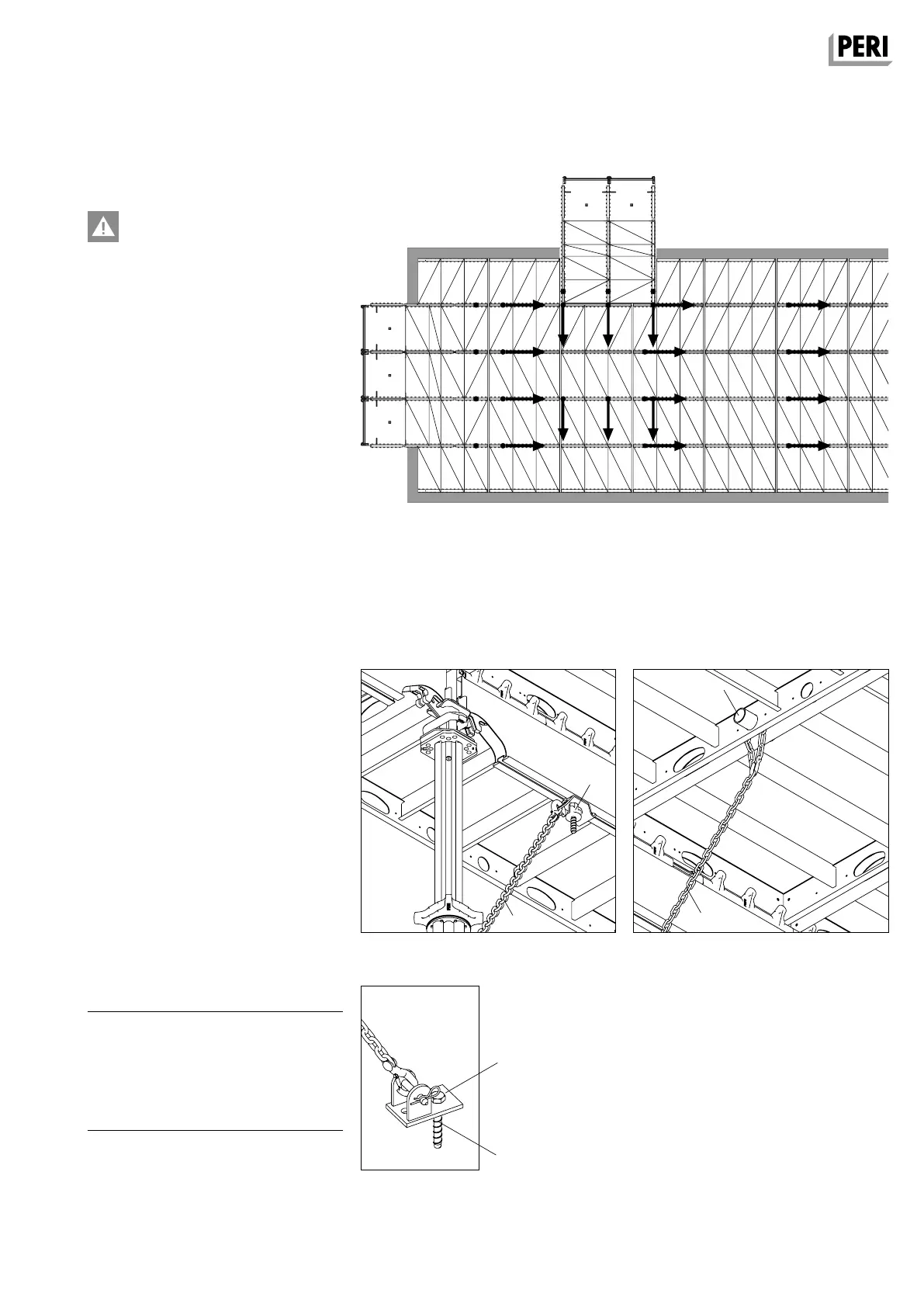

Fig. A7.02
Schematic representation
Influencing area,
e.g. slab d = 25 cm.
Longitudinal direction
Fig. A7.03 Fig. A7.03a
Fig. A7.03b
Lateral direction
SKYDEKC AuV_ex_791458.indb 39 13.12.16 16:56
