SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
A6 Shuttering around columns
2 recessed panels
Maximum column dimensions
x = 65 cm, y = 138 cm.
Secure filler plates with nails!

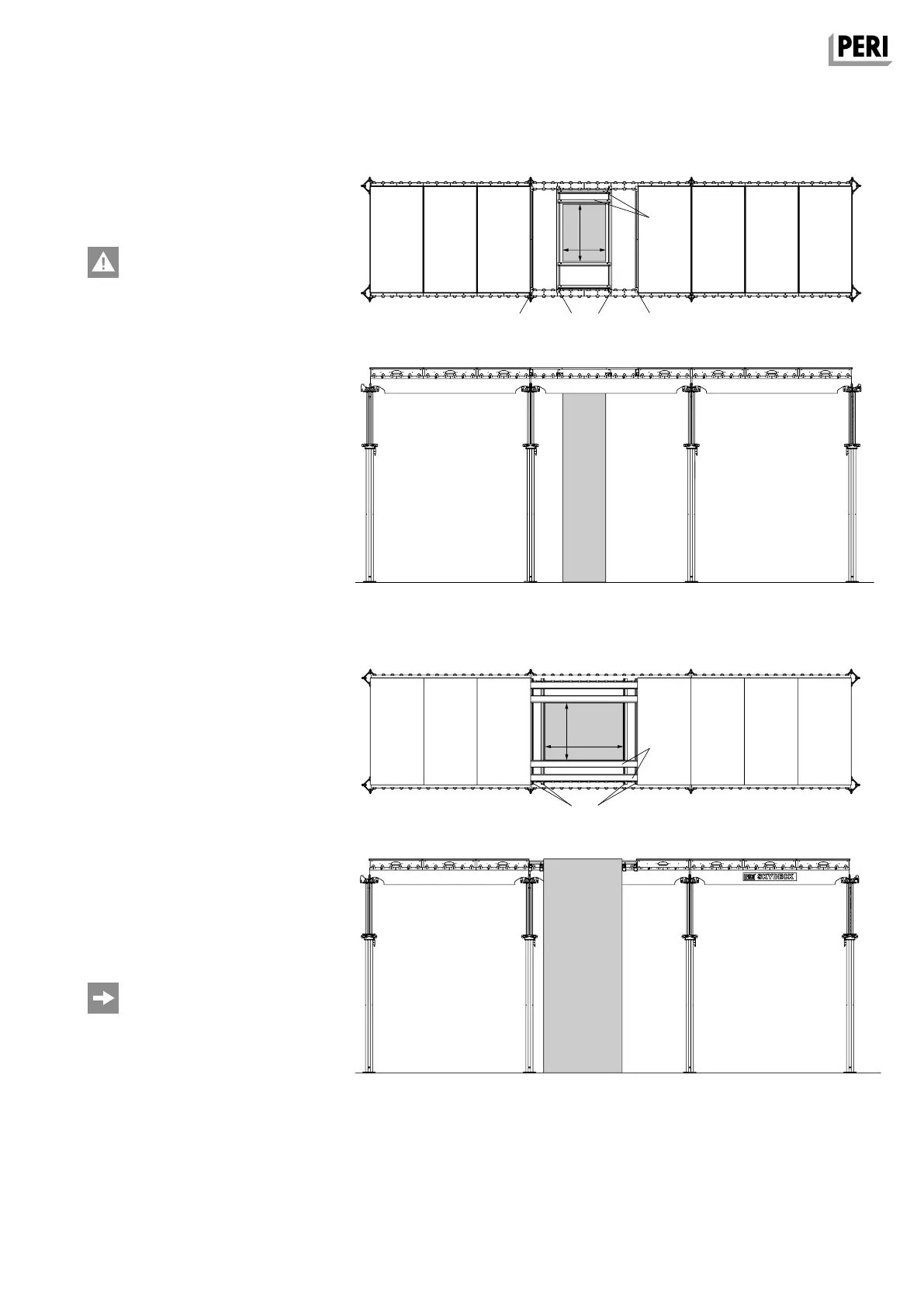

Install Edge Beam SRT 150 (9) vertically
at the panel edge. Insert Edge Beam
SRT 150 (9*) in a suspended position at
the column.
Likewise, insert Edge Beam SRT 75
(10*) in the Edge Beam (9*) in a sus-
pended position. (Fig. A6.05 + A6.06)
Maximum column dimensions
x = 130 cm, y = 138 cm.
Depending on the slab thickness and
prop width, the transverse-positioned
filler plates are to be additionally sup-
ported, see Table A6.02.
Insert Edge Beam SRT-2 150 (9*) in a
suspended position. Lay Filler Timber
SPH 150 (12) in a flat position. Permissi-
ble widths of influence for flat Filler Tim-
ber SPH, see Table A6.02 on next page.
(Fig. A6.07 + A6.08)
With smaller cross-sections, form infill
areas with Panel SDP 37.5.
Take into account the supporting direc-
tion of the formlining.
Fig. A6.06
Fig. A6.07
Fig. A6.08
Fig. A6.05
