A9 SKYDECK platforms
Platform installation
Risk of falling!
– Cantilevers should not have form-
work erected or be stepped on be-
fore being firmly secured with ten-
sion chains.
– When lingering on the slab form-
work, measures must be taken to
prevent falling, e.g. PPE.
– Clearly mark unsecured building
edges!
Begin with the platform assembly in
one area in which there is no risk of
falling to the rear or at the side (e.g.
Area II, see Ground Plan Fig. A9.01).
1. With the help of the Erection Aid
SSH, access the recess of the plat-
form decking and pull the platform
out from its safe position. (Fig. A9.12)
2. Move the platform into position at an
angle from above in front of the last
panel onto the cantilevered main beam.
3. By further lowering the platform, pos-
itive assembly is carried out:
– The slide (45.1) on the underside of
the platform is secured when posi-
tioned in the platform support (2.7) on
the Main Beam SLT 375. (Fig. A9.12a)
The platform is locked in position
and secured against tipping.
– The slide safety device locks into
the teeth of the main beam.
The platform is secured against
moving in the longitudinal
direction of the beam.
4. Detach both crane hooks. Site per-
sonnel must wear personal protection
equipment (PPE) to prevent falling!
– Crane eye swivels downwards and
the securing hook grips under the
self-draining edges of the main
beam. If necessary, press down
the crane eye.
The platform is additionally
secured against tipping and
lifting. (Fig. A9.12b)
5. Install other platforms in the same
way with the shuttering aid.
6. Close infill areas < 75 cm using con-
tractor’s own resources, e.g. scaffold
planks 24 x 4.5 cm.

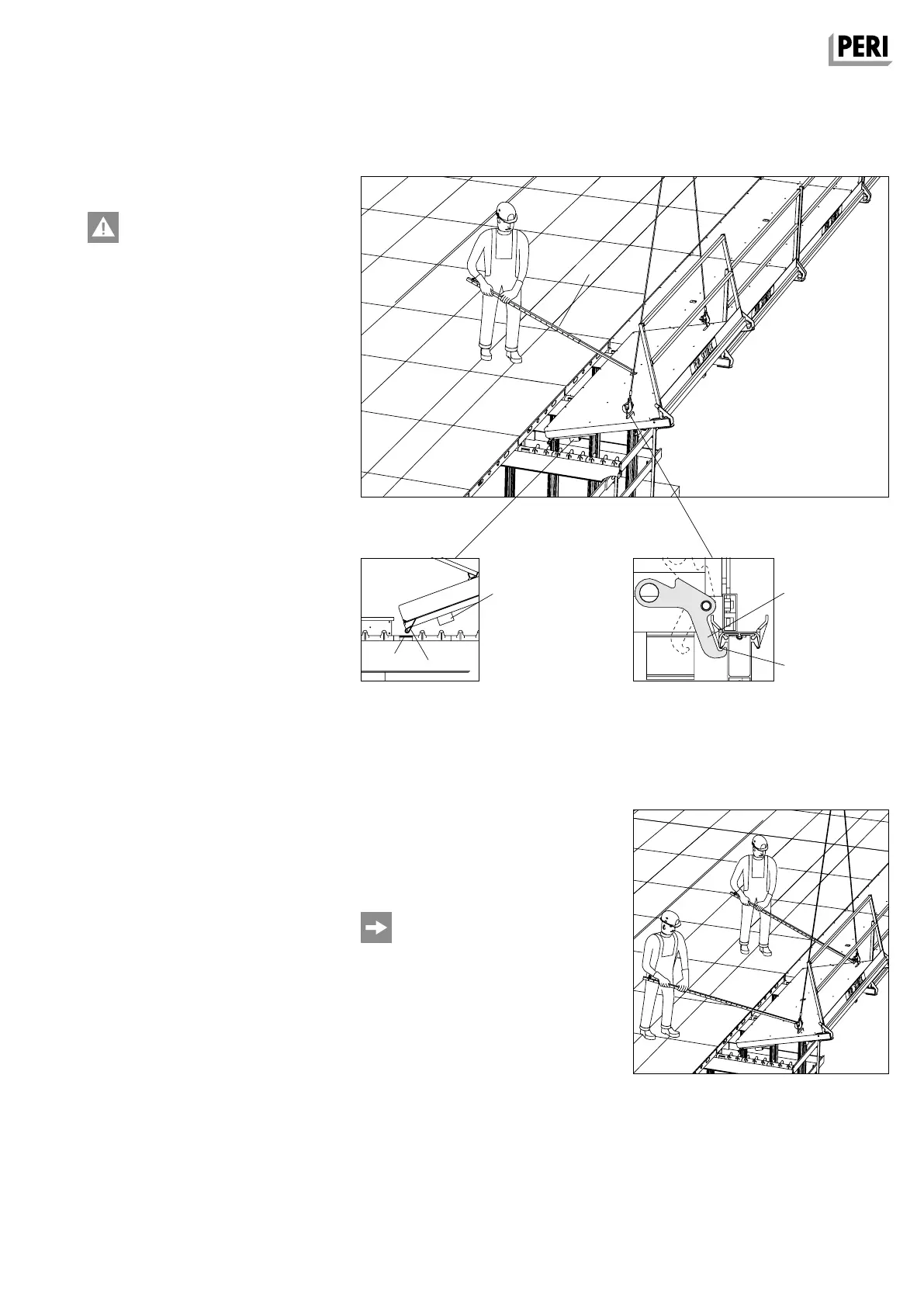

Fig. A9.13
Fig. A9.12a Fig. A9.12b
Securing hook
Shuttering Aid
SSH
Self-draining
edges
Anti-slip device
7. Handrails for infill areas are created
using handrail boards 3 x 15 cm and
toe boards (use nail holes in platform
guardrails) or standard couplings and
scaffold tubes.
For difficult assembly situations, e.g.
wind, guide the platform with 2 shutter-
ing aids. (Fig. A9.13)
Fig. A9.12
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
