28
14
31 1
11
2.5
2,25 m (+5 cm)
≤ 75 cm
1,5 m
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
A5 Compensations

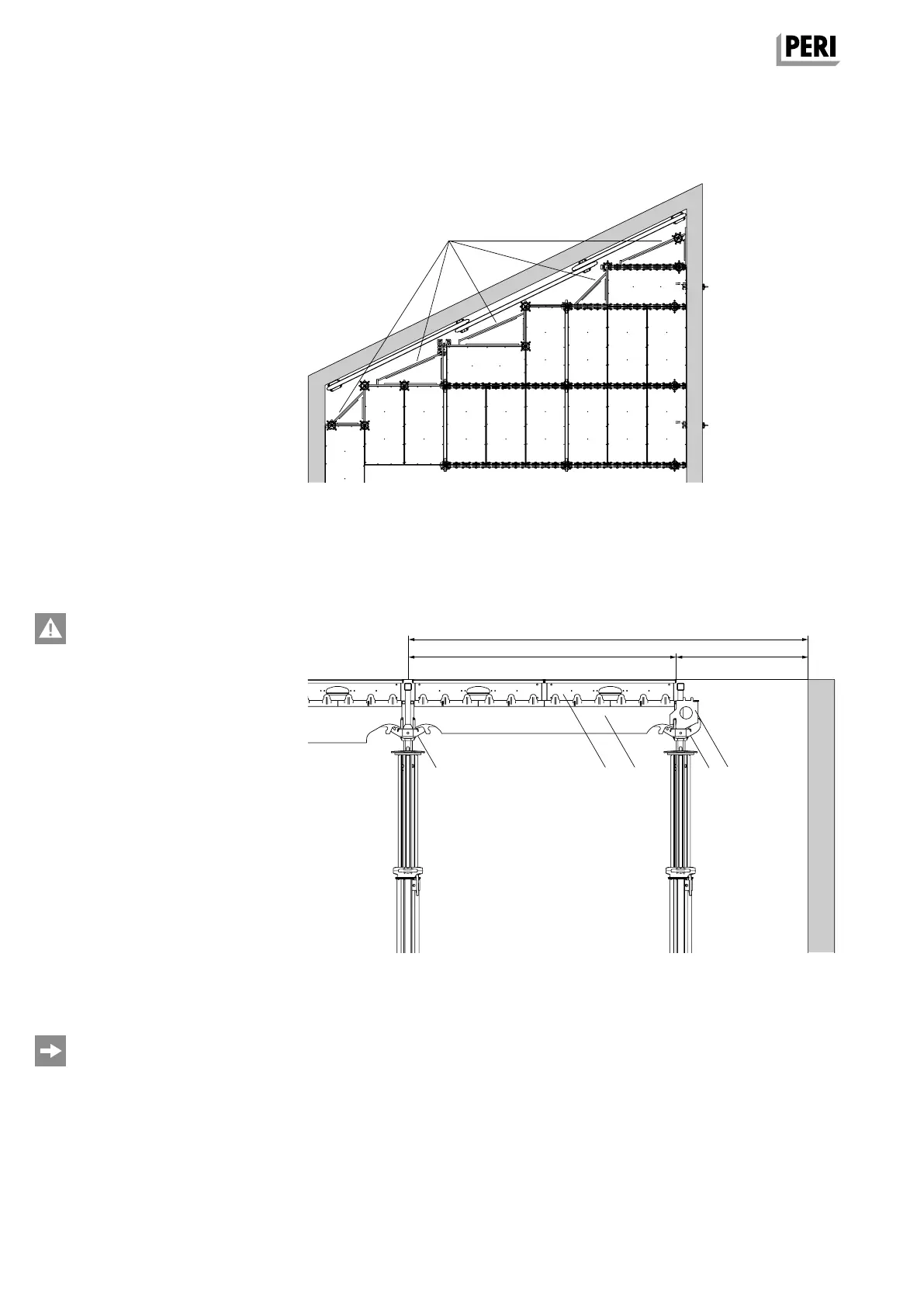

Fig. A5.20
Triangular Frame SDR
150/75, 75/75
Form infill areas with inclined walls us-
ing triangular frames.
Forming the infills
1. Continue forming in the system as
long as possible.
2. Carry on forming operations with filler
panels as well as transversely
inserted panels – as for longitudinal
and transverse compensations.
3. Lay Triangular Frame (14) on the sup-
port (Main Beam, Prophead or Combi-
head, End Support). (Fig. A5.20)
4. Place the support on the wall side.
5. Install formlining and secure in posi-
tion with nails.
Longitudinal compensations
Secure filler plates with nails!
Drophead infills up to 2.25 m + 5 cm.
Prophead infills up to 2.25 m.
Length of room minus n x 2.30 m
(2.25 m) = compensation area.
See Tables: Fillers / Forming around
columns.
Forming longitudinal compensations
between 75 cm and 2.25 m
1. Continue forming with prop, Compen-
sation Beam SLT 150 (2.5) and Panel
SDP (3) as in the standard bay.
(Fig. A5.21)
2. Depending on the required load-bear-
ing capacity, continue forming with
filler panels. See PERI Tables.
3. Forming of gaps up to 75 cm, see
following pages.
– Take into account the load-bearing
capacity and supporting direction of
the formlining. See PERI Tables.
– Timbers are securely nailed on the
panel inner side before panels are
assembled. Use the nail holes in the
panel edge struts.
Fig. A5.21
