SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
A5 Compensations
In corners where longitudinal and trans-
verse compensations meet, the Combi-
head (7) is aligned in the direction of the
main beam. (Fig. A5.19 A)
Install the cantilever of the Combihead
(7) up to the compensation area.
(Fig. A5.19 B)
In the system with the Drophead (1), the
Combihead (7) is always installed trans-
versely if it is positioned under a cover
strip. As a result, the panels are prevent-
ed from slipping out of position.
(Fig. A5.19 C)
With a transverse positioned Combi-
head, e.g. in compensation areas, place
panels at least as far as the central axis
or further!

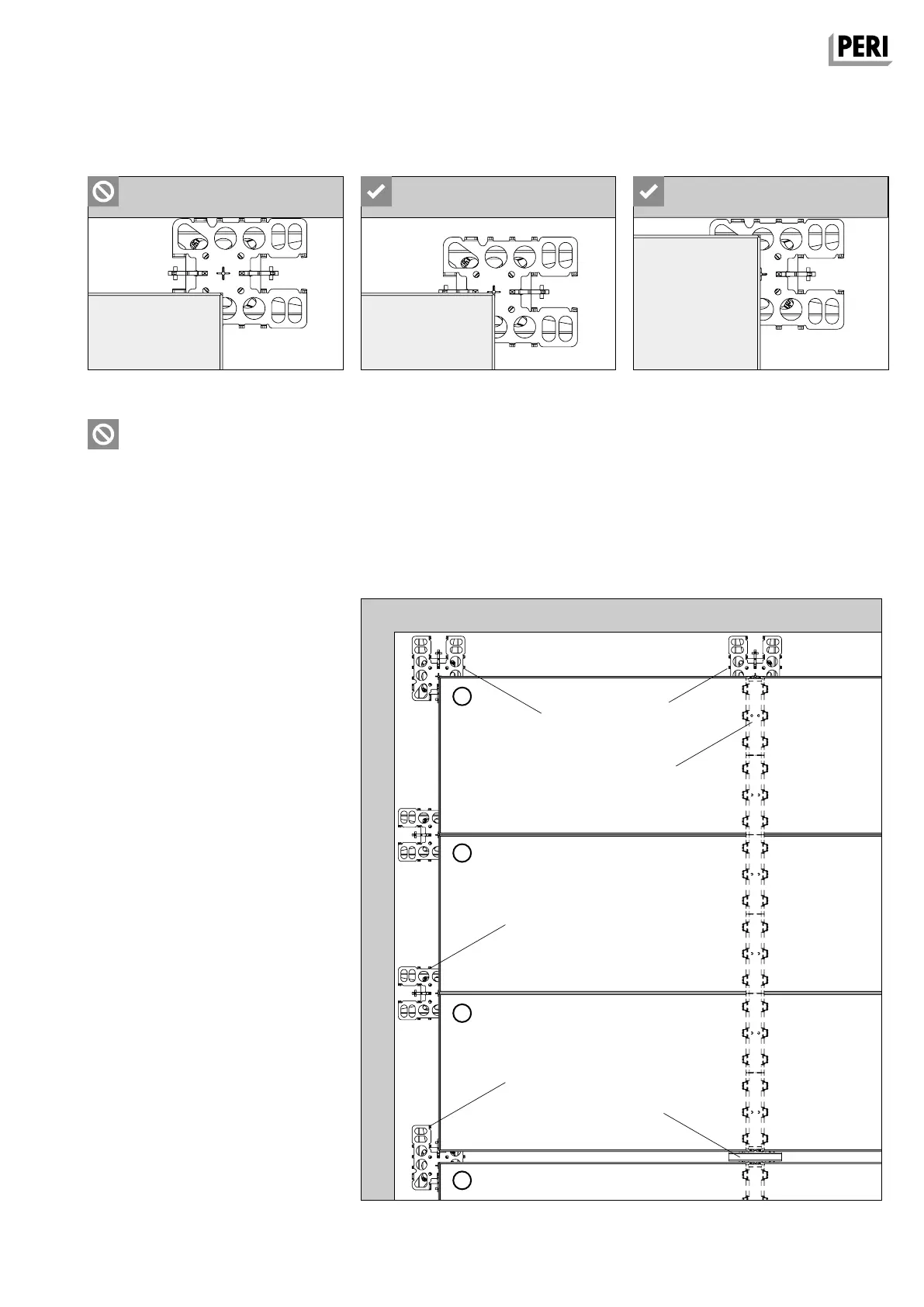

Fig. A5.18a Fig. A5.18bFig. A5.18
Fig. A5.19
