SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration

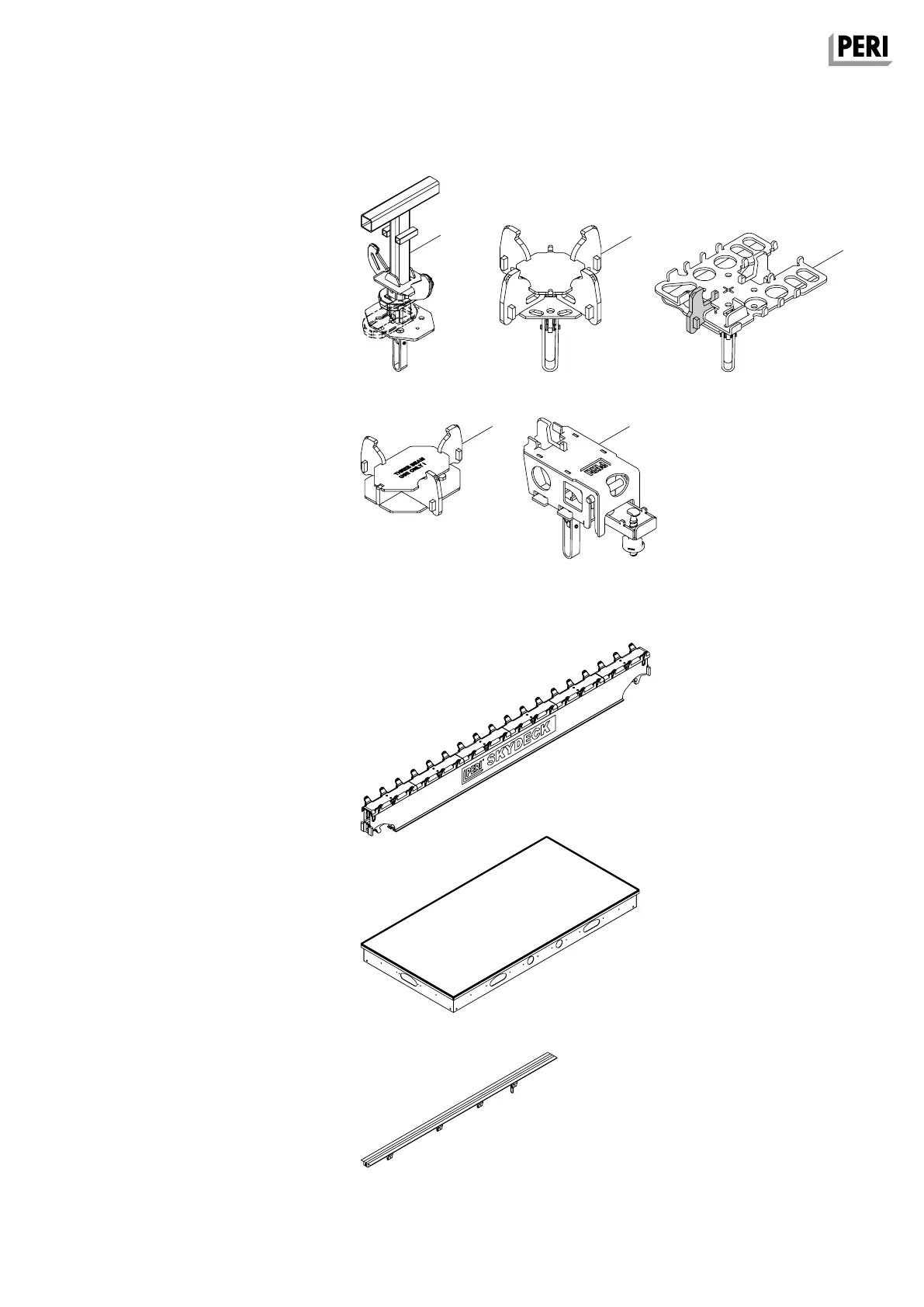

A2 System components
Fig. A2.02
Main beams
– Main Beam SLT 225
– Main Beam SLT 150
For the exclusive use with the
SKYDECK Platform SDB, a main beam
which can accommodate the Platform
SDB is available.
It may only be used for the described
purposes.
– Main Beam SLT 375
Panel SDP
The Panel SDP is available with the fol-
lowing dimensions:
– Panel SDP 150x75
– Panel SDP 150x50
– Panel SDP 150x37.5
– Panel SDP 75x75
– Panel SDP 75x50
– Panel SDP 75x37.5
Cover Strip SAL
The Cover Strip SAL is available with
the following dimensions:
– Cover Strip SAL 150
– Cover Strip SAL 75
– Cover Strip SAL 50
– Cover Strip SAL 37.5
Propheads
Drophead SFK (1)
Prophead SSK (6)
Combihead SCK (7)
Transition Head SDSK (26)
Transition Head SDFK (27)
The Drophead SFK can be used for all
standard situations and allows the re-
moval of main beams and panels while
simultaneously supporting the slab.
The Prophead SSK must be used in all
starting fields. Prophead SSK and
Combihead SCK are used, e.g. for com-
pensations.
Prophead SDSK and Prophead SDFK are
used when changing direction.
Fig. A2.04
Fig. A2.03
Fig. A2.01
