SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
A5 Compensations
Gap 0 – 12 cm
1. Place Panel SDP (3) over the Main
Beam SLT (2) and secure with Panel
Wedge Clips (20). (Fig. A5.33 –
A5.35)
2. Nail Filler Timber SPH (12) or timber
(13) up to max. 6 cm on the panel.
(Fig. A5.35) Screw Filler Timber SPH
(12) or timber (13) up to max. 6 cm on
the panel. (Fig. A5.36)
3. Install formlining (16) and secure with
nails.
If panels (3) are placed over the main
beam (2), the panel edge can not laterally
stabilize the main beam.
Secure every main beam with a Panel
Wedge Clip SPKK to prevent
overturning!
Gap 5 – 12.5 cm
1. Position Combihead SCK (7) with can-
tilever in the direction of the infill.
2. Install Panel (3).
3. Install Edge Beam SRT-2 (9) or Filler
Timber SPH (12) in the Combihead
(7).
4. Install formlining (16) and secure with
nails. (Fig. A5.36)

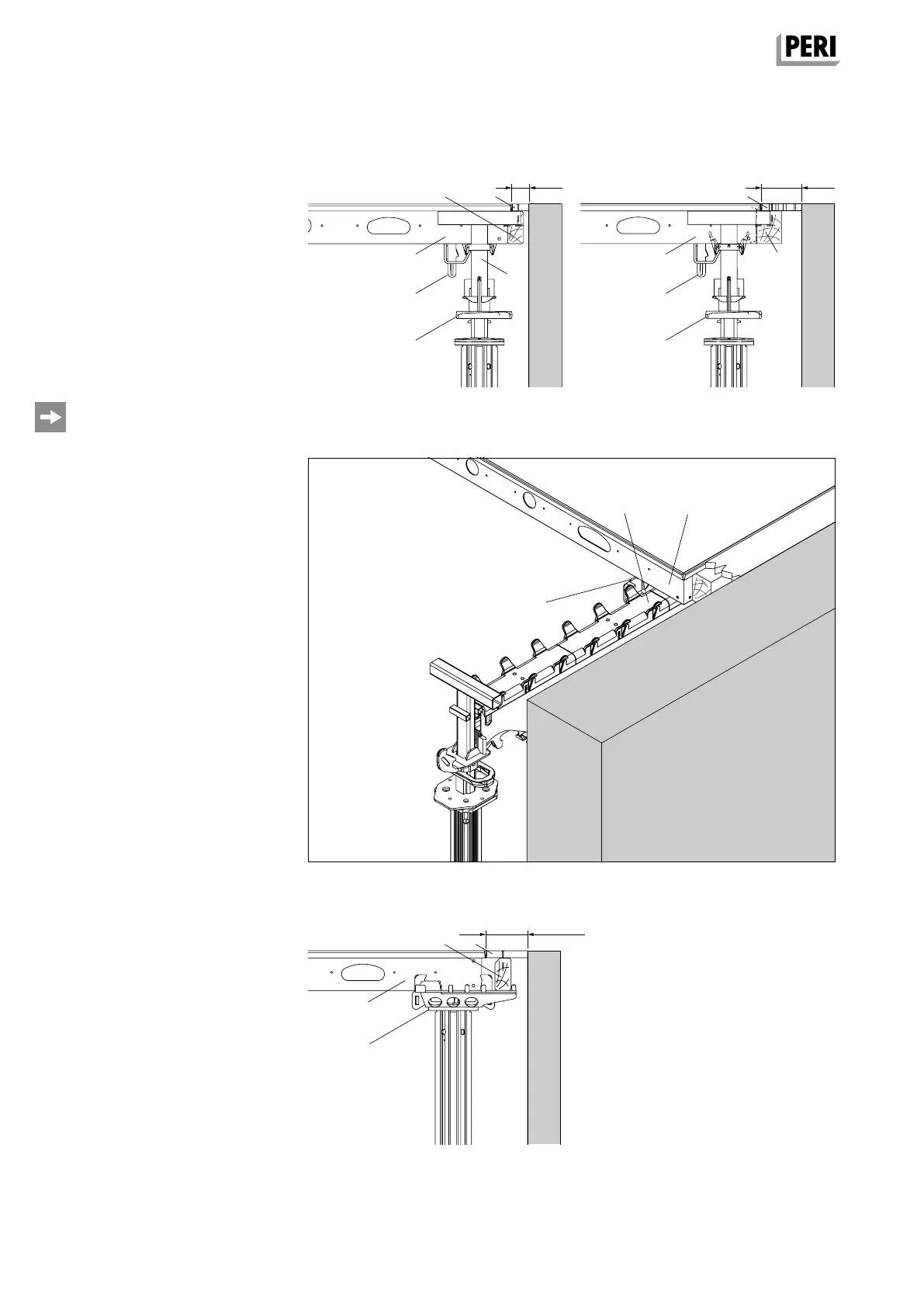

Fig. A5.33
Fig. A5.35
Fig. A5.34
Fig. A5.36
