A9 SKYDECK platforms
Tensioning the corner tables
Use anchor chains for securing the ta-
bles to the floor.
1. Attach one tension chain (23) to the
outer Table Connector STV (38) on
each of the bottom Main Beams
SLT 375, and diagonally tension.
2. Attach one tension chain (23.1) to the
Tension Sleeve SAO to the first top
and inner-positioned Main Beam SLT
375, and diagonally tension.
3. On the middle, top main beam, attach
two tension chains to the Tension
Sleeves SAO. Diagonally (23.2) ten-
sion the first tension chain; the sec-
ond tension chain (23.3) is vertically
tensioned. (Fig. A9.07 + A9.07a)
Risk of falling!
During assembly, measures must be
taken to prevent falling, e.g. PPE!
4. Mount the SKYDECK Platform SDB
(45): see A9 Platform installation.
5. Close the filler areas: see A5 Com-
pensations and A6 Shuttering of
columns.
Components
23 Tension chain
38 Table Connector STV
45 SKYDECK Platform SDK

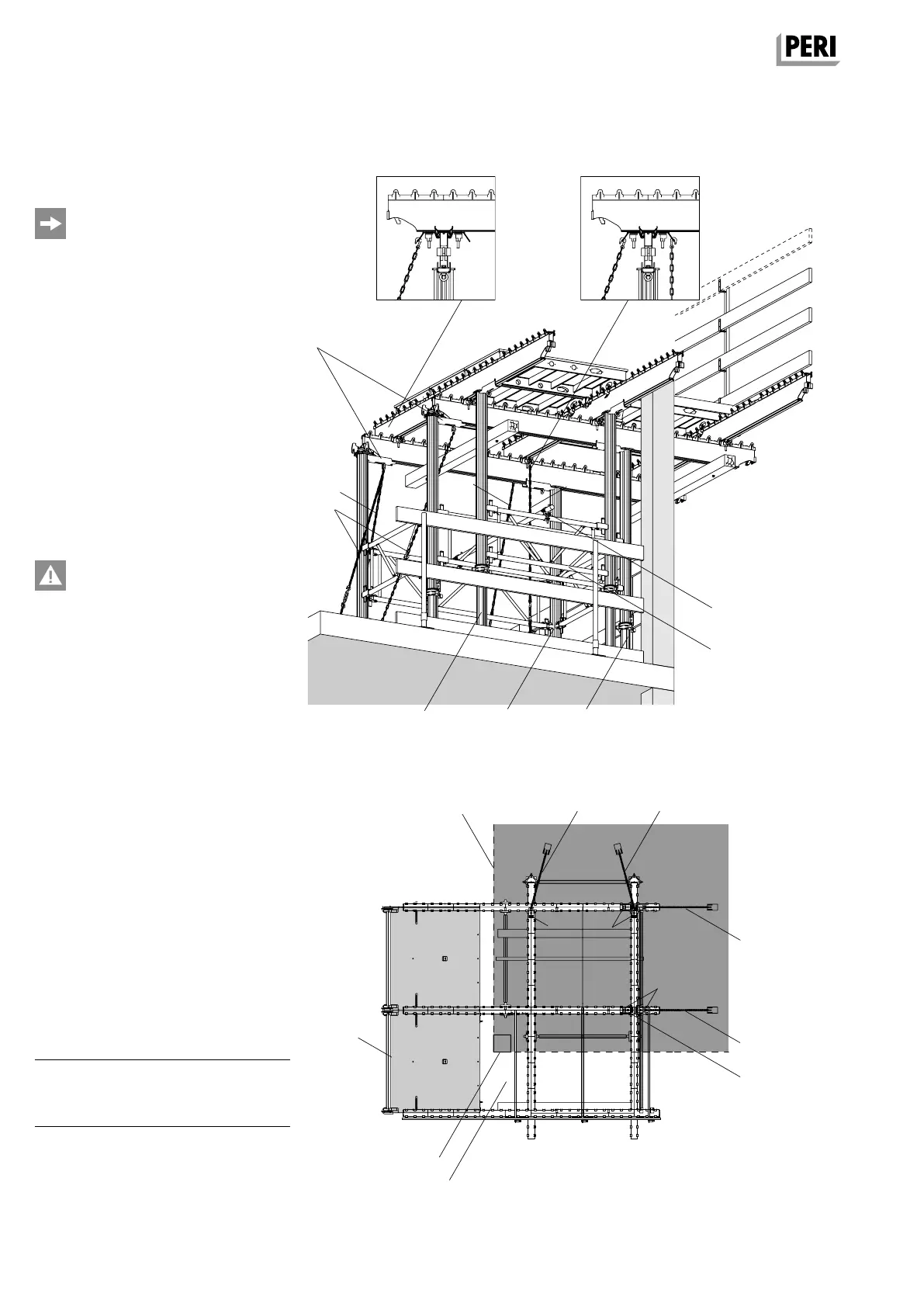

Fig. A9.07
Fig. A9.07a
Scaffold coupling
additional propPropadditional prop
Edge of building
Corner column
Filler area
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
