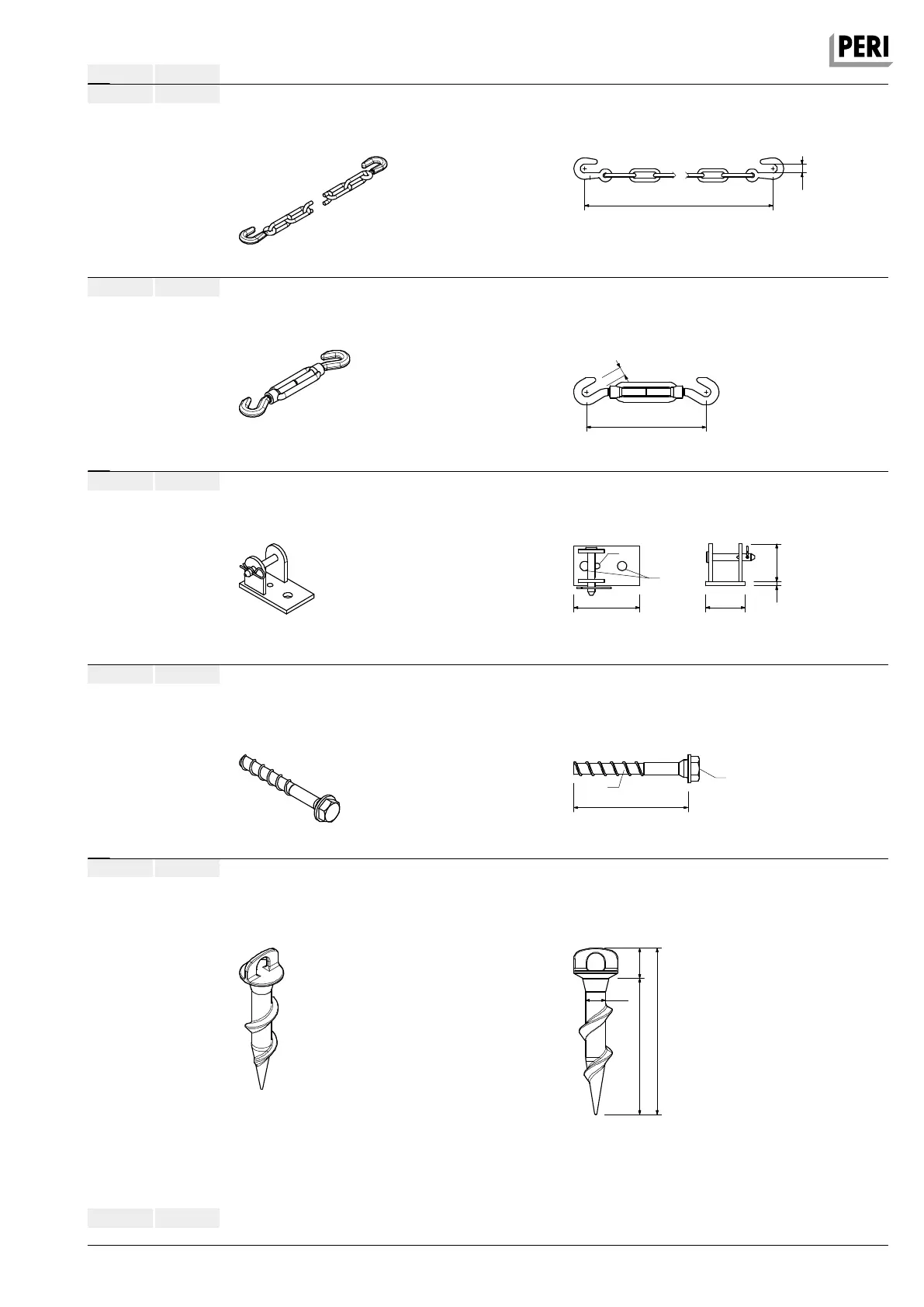

SKYDECK Panel Slab Formwork
93
Item no. Weight kg
123970 0.047 Screw-On Sleeve PERI M16/164
For temporary mounting of components on rein-
forced concrete slabs.
Note
Inserted into the fresh concrete immediately after
concreting.
1
8
9
1
5
5
3
4
23Ø
123973 0.240
Accessories
Bolt ISO 4014 M16 x 130-8.8, galv.
124777 0.210 Anchor Bolt PERI 14/20 x 130
For temporary fixation to reinforced concrete
structures.
Note
See PERI data sheet!
Drilling Ø 14 mm.
130
SW 24
Ø14
028100 1.830 Base Plate for RS
For assembly of RS Push-Pull Props.
Complete with
1 pc. 018050 Pin Ø 16 x 65/86, galv.
1 pc. 018060 Cotter Pin 4/1, galv.
150
90
1
0
8
5
Ø21
Ø13
065074 0.450 Turnbuckle 3.0 kN, M12 Technical Data
Permissible tension force 3.0 kN.
min 220 max 300
1
6
065073 1.370 Anchor Chain 3.0 kN, l = 2.5 m Technical Data
Permissible tension force 3.0 kN.
2500
1
5
