SKYDECK Panel Slab Formwork
97
Item no. Weight kg

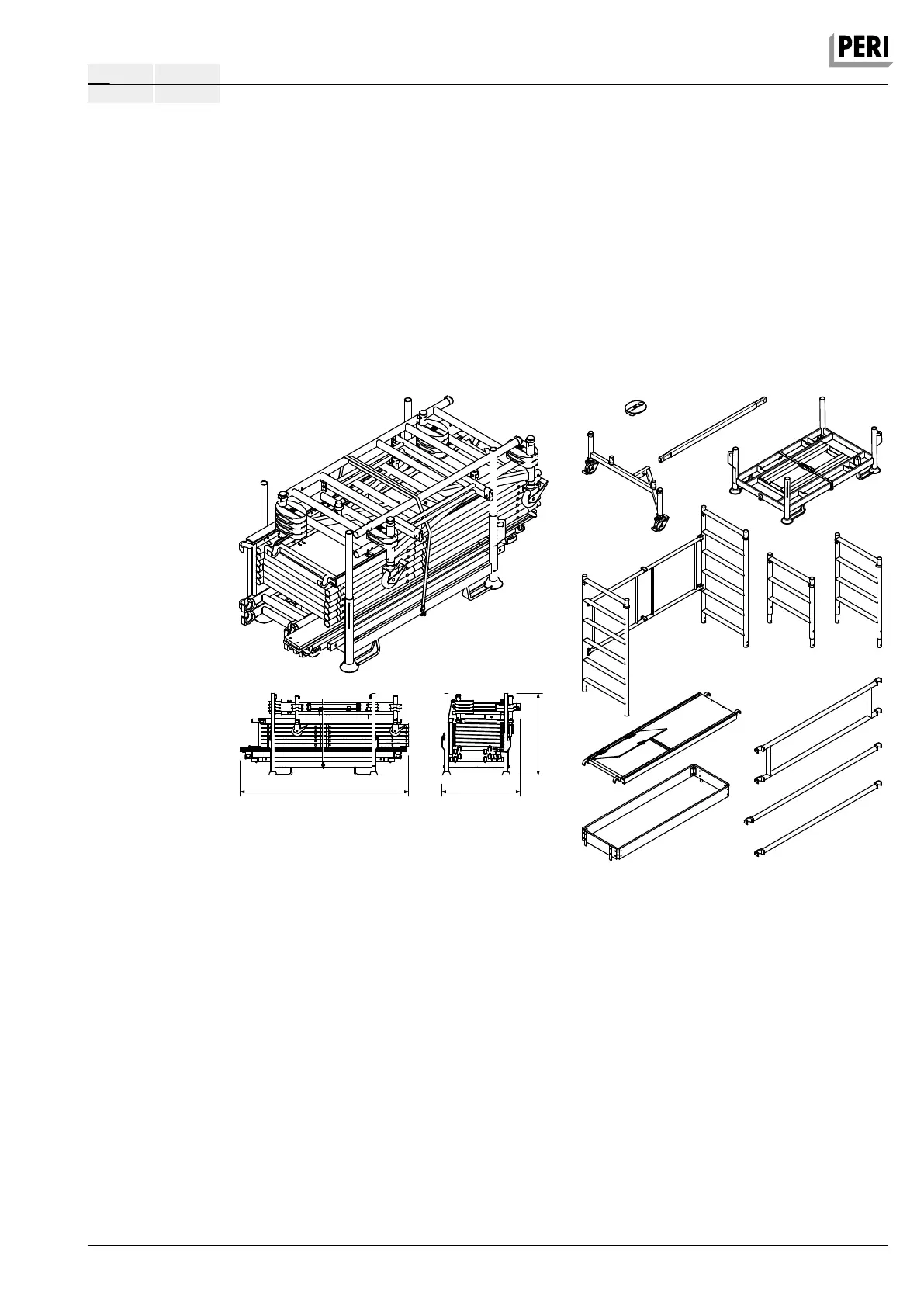

102031 363.000 Stripping Cart ASW 465, compl.
Mobile working scaffold. Height-adjustable in
30-cm-increments. Platform height max. 4.65 m.
Packed in:
Ring Pallet USP 104 Item no. 100678, with
Lashing Strap 25 x 5750 Item no. 100707 (x 1)
and Scaffold Tube Steel L = 1000 Item no. 100706
(x 6).
Complete with
1 pc. 102025 Folding Base Unit 160/190 ASW
6 pc. 102035 Vertical Frame 70/90 ASW
6 pc. 102034 Vertical Frame 70/120 ASW
2 pc. 102026 Entry Platform 190 ASW
1 pc. 102030 Toe-Board Set 70/190 ASW
4 pc. 102027 Double Guardrail 190 ASW
3 pc. 102028 Diagonal Brace 210 ASW
2 pc. 102029 Horizontal Brace 190 ASW
12 pc. 102807 Ballast 10 kg ASW
2 pc. 103040 Lateral complete ASW
1 pc. 102587 Center part ASW galv.
Note
Follow Instructions for Use!
Technical Data
Permissible load 100 kg/m
2
.
2360 1100
1
1
5
0
102030
102029
102028
102027
102026
102025
102035
102034
100678
102807
102587
103040
