Other connectors

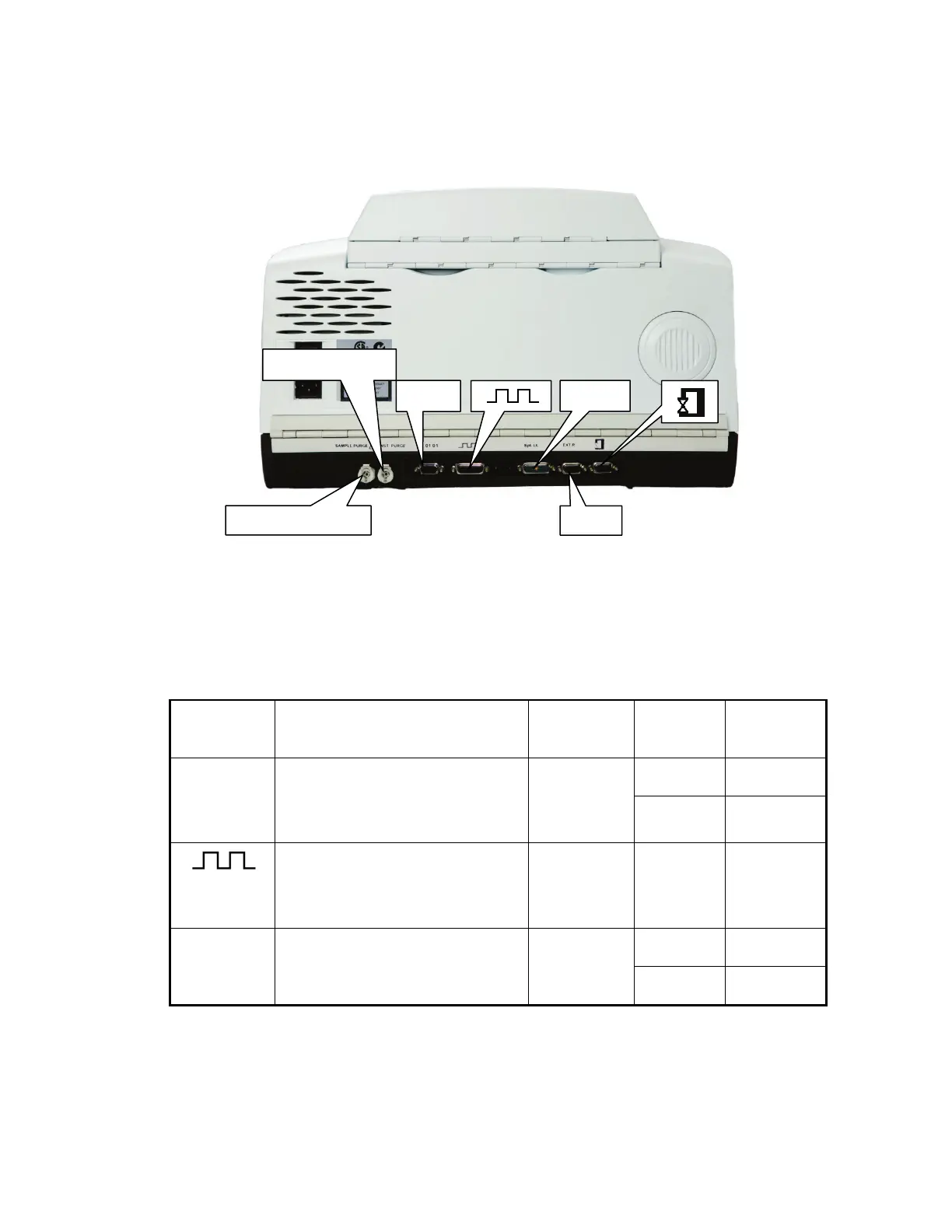

The communication ports for peripheral devices are shown in Figure 12.
Figure 12 Communication ports
Icons that identify the function of each of the communications ports are printed on the hinge
molding directly above the port.
Connector details
Icon Description Connector
Type
Voltages Maximum
Currents
10101
Serial port. Connects a PC to the
instrument using an RS232
interface cable. This connector is
only used for service diagnostics.
9-way
D-type
+12 V <100 mA
−12 V <100 mA
General Purpose Optical Bench
(GPOB). Allows synchronization
between the instrument and an
external accessory.
26-way
high density
D-type
+5 V <50 mA
Spt.Lt
Spotlight. Used to connect the
instrument to a Spotlight Imaging
System.
11-way
mixed
D-type
+5 V <100 mA
±12 V 50 mA
