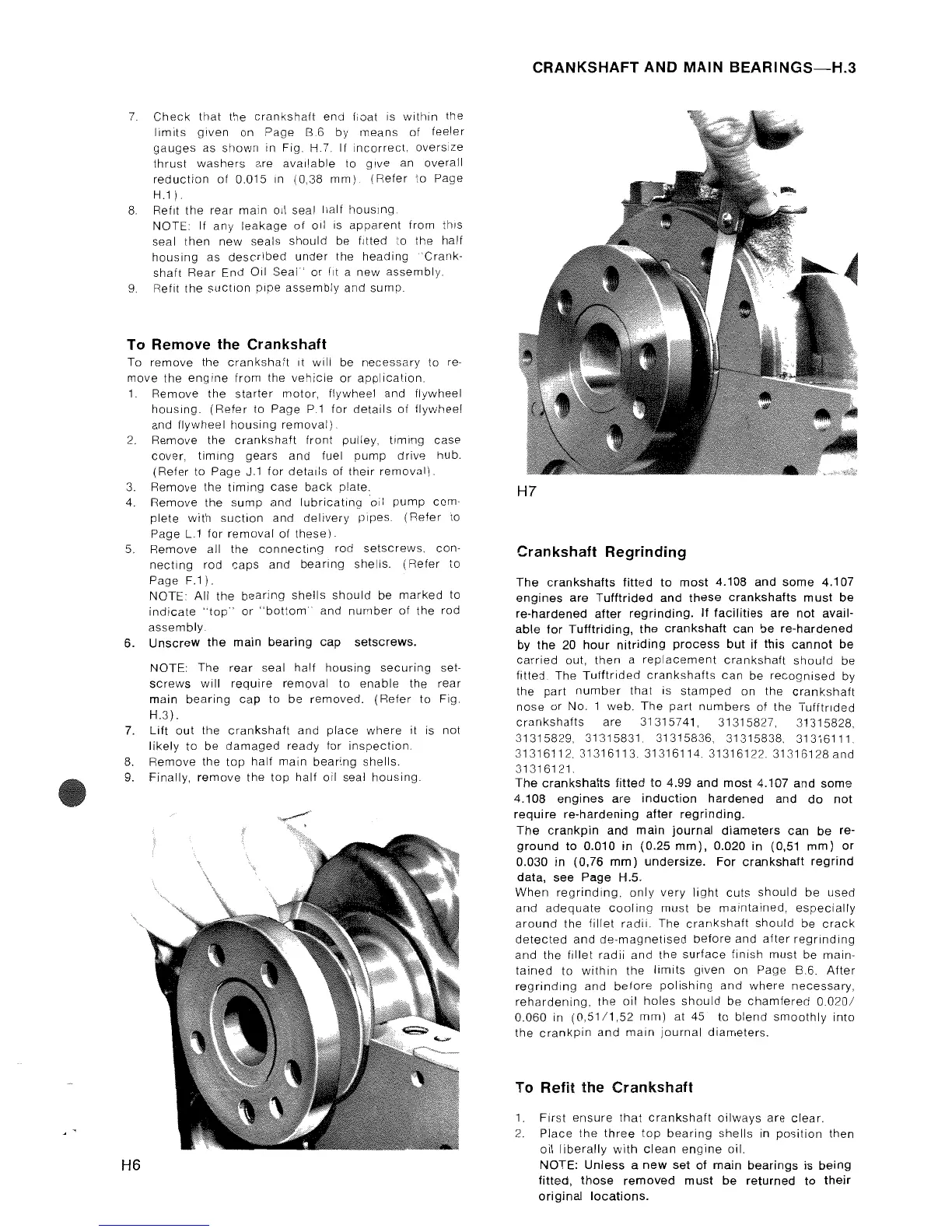

7.
Check
that
the
crankshaft
end
T;oat is
within
the
limits
given
on
Page
B.6
by
means
of
feeler
gauges
as
shown
in Fig. H.7. If
incorrect,
oversize
thrust
washers
are
available
to
give
an
overall
reduction
of
0.015 in
(0,38
mm)
(Refer
to
Page
H.1
).
8.
Refit
the
rear
main
oil
seal
half
housing.
NOTE:
If
any
leakage
of
oil
is
apparent
from
this
seal
then
new
seals
should
be
fitted
to
the
half
housing
as
described
under
the
heading
"Crank-
shaft
Rear
End
Oil
Seal"
or
fit a
new
assembly
9.
Refit
the
suction
pipe
assembly
and
sump.
To Remove the Crankshaft
To
remove
the
crankshaft
it
will
be
necessary
to
re-
move
the
engine
from
the
vehicle
or
application.
1.
Remove
the
starter
motor,
flywheel
and
flywheel
housing.
(Refer
to
Page
P.1
for
details
of
flywheel
and
flywheel
housing
removal)
2.
Remove
the
crankshaft
front
pulley.
timing
case
cover,
timing
gears
and
fuel
pump
drive
hub.
(Refer
to
Page
J.1
for
details
of
their
removal)
3.
Remove
the
timing
case
back
plate.
4.
Remove
the
sump
and
lubricating
oil
pump
com-
plete
with
suction
and
delivery
pipes.
(Refer
to
Page
L.1
for
removal
of
these).
5.
Remove
all
the
connecting
rod
setscrews.
con-
necting
rod
caps
and
bearing
shells.
(Refer
to
Page
F.1).
NOTE:
All
the
bearing
shells
should
be
marked
to
indicate
"top"
or
"bottom"
and
number
of
the
rod
assembly.
6.
Unscrew
the
main
bearing
cap
setscrews.
NOTE:
The
rear
seal
half
housing
securing
set-
screws
will
require
removal
to
enable
the
rear
main
bearing
cap
to
be
removed.
(Refer
to
Fig.
H.3)
7.
Lift
out
the
crankshaft
and
place
where
it is
not
likely
to
be
damaged
ready
for
inspection.
8.
Remove
the
top
half
main
bearing
shells.
9.
Finally,
remove
the
top
half
oil
seal
housing.
H6
CRANKSHAFT AND
MAIN
BEARINGS-H.3
H7
Crankshaft Regrinding
The
crankshafts
fitted
to
most
4.108
and
some
4.107
engines
are
Tufftrided
and
these
crankshafts
must
be
re-hardened
after
regrinding.
If
facilities
are
not
avail-
able
for
Tufftriding,
the
crankshaft
can
be
re-hardened
by
the
20
hour
nitriding
process
but
if
this
cannot
be
carried
out,
then
a
replacement
crankshaft
should
be
fitted.
The
Tufftrided
crankshafts
can
be
recognised
by
the
part
number
that
is
stamped
on
the
crankshaft
nose
or
No. 1
web.
The
part
numbers
of
the
Tufftrrded
crankshafts
are
31315741, 31315827,
31315828,
31315829, 31315831.
31315836, 31315838.
31316111
31316112.
31316113.
31316114. 31316122.
31316128and
31316121.
The
crankshafts
fitted
to
4.99
and
most
4.107
and
some
4.108
engines
are
induction
hardened
and
do
not
require
re-hardening
after
regrinding.
The
crankpin
and
main
journal
diameters
can
be
re-
ground
to
0.010
in
(0.25
mm),
0.020
in
(0,51
mm)
or
0.030
in
(0,76
mm)
undersize.
For
crankshaft
regrind
data,
see
Page
H.5.
When
regrinding,
only
very
light
cuts
should
be
used
and
adequate
cooling
must
be
maintained,
especially
around
the
fillet
radii.
The
crankshaft
should
be
crack
detected
and
de-magnetised
before
and
after
regrinding
and
the
fillet
radii
and
the
surface
finish
must
be
main-
tained
to
within
the
limits
given
on
Page
B.6.
After
regrinding
and
before
polishing
and
where
necessary,
rehardening,
the
oil
holes
should
be
chamfered
0.0201
0.060
in
(0,51/1,52
mm)
at
45
to
blend
smoothly
into
the
crankpin
and
main
Journal
diameters.
To Refit the Crankshaft
1.
First
ensure
that
crankshaft
oilways
are
clear.
2.
Place
the
three
top
bearing
shells
in
position
then
oil
liberally
with
clean
engine
oil.
NOTE:
Unless
a
new
set
of
main
bearings
is
being
fitted,
those
removed
must
be
returned
to
their
original
locations.
