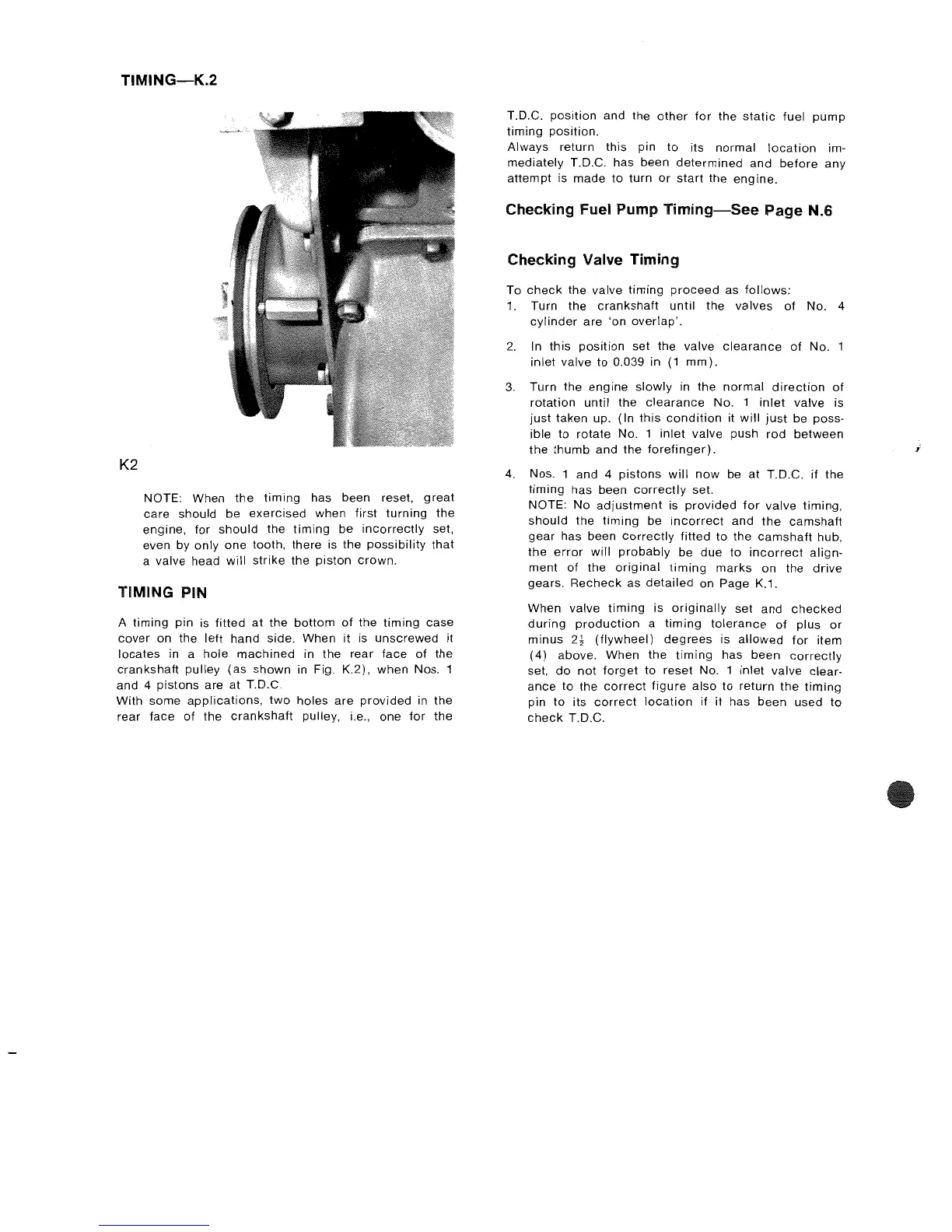

TIMING-K.2
K2
NOTE: When the
timing
has been reset,
great
care
should be
exercised
when first
turning
the
engine,
for
should
the
timing
be
incorrectly
set,
even by
only
one tooth, there is the
possibility
that
a valve head will
strike
the piston crown.
TIMING PIN
A
timing
pin is
fitted
at
the bottom
of
the
timing
case
cover
on the left hand side. When it is unscrewed
it
locates
in a
hole
machined
in
the
rear face
of
the
crankshaft
pulley
(as
shown in Fig.
K.2l,
when Nos. 1
and 4 pistons are at T.O.C.
With
some
applications,
two
holes are provided in
the
rear face of the
crankshaft
pulley, i.e., one
for
the
T.O.C.
position
and the
other
for
the
static
fuel
pump
timing
position.
Always return this pin to its
normal
location
im-
mediately T.O.C. has been
determined
and
before
any
attempt is made to turn
or
start
the
engine.
Checking Fuel Pump
Timing-See
Page N.S
Checking Valve Timing
To
check
the valve
timing
proceed
as
follows:
1.
Turn the
crankshaft
until
the valves
of
No. 4
cylinder
are 'on
overlap'.
2.
In this
position
set the valve
clearance
of
No. 1
inlet
valve
to
0.039 in
(1
mm).
3.
Turn the
engine
slowly
in the
normal
direction
of
rotation
until
the
clearance
No. 1
inlet
valve is
just
taken
up.
(In
this
condition
it
will
just
be poss-
ible
to
rotate No. 1
inlet
valve push rod
between
the
thumb
and the
forefinger).
4.
Nos. 1
and
4 pistons
will
now
be
at
T.O.C.
if
the
timing
has been
correctly
set.
NOTE:
No
adjustment
is
provided
for
valve
timing,
should
the
timing
be
incorrect
and
the
camshaft
gear
has been
correctly
fitted
to
the
camshaft
hub,
the
error
will
probably
be due to
incorrect
align-
ment
of
the
original
timing
marks
on
the
drive
gears.
Recheck
as
detailed
on Page K.1.
When valve
timing
is
originally
set
and
checked
during
production
a
timing
tolerance
of
plus
or
minus
2~
(flywheel)
degrees
is
allowed
for
item
(4)
above. When
the
timing
has been
correctly
set,
do
not
forget
to reset No. 1
inlet
valve clear-
ance
to the
correct
figure
also
to
return
the
timing
pin
to
its
correct
location
if
it
has been used
to
check
T.O.C.
