Operating Controls

Fig. 7 - 05

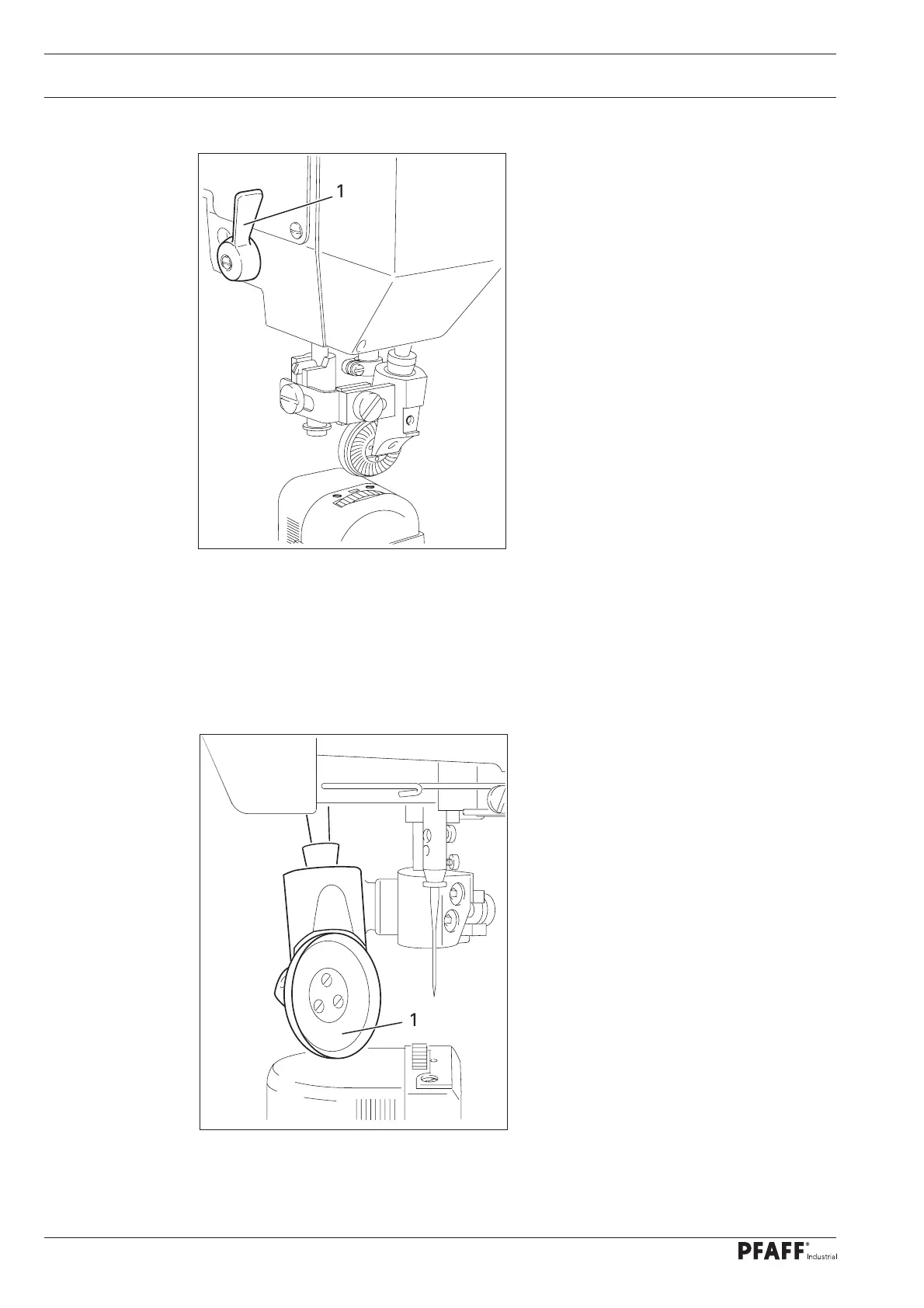

7.05 Hand lever to raise the roller presser

 Turning the hand lever 1 raises the roll-

er presser.

7.06 Swivelling out the roller presser

 The roller presser 1 can be swivelled out

by gently pulling downwards when the

roller presser is in the raised position.

Fig. 7 - 06
