Set-up and Initial Start-up
25

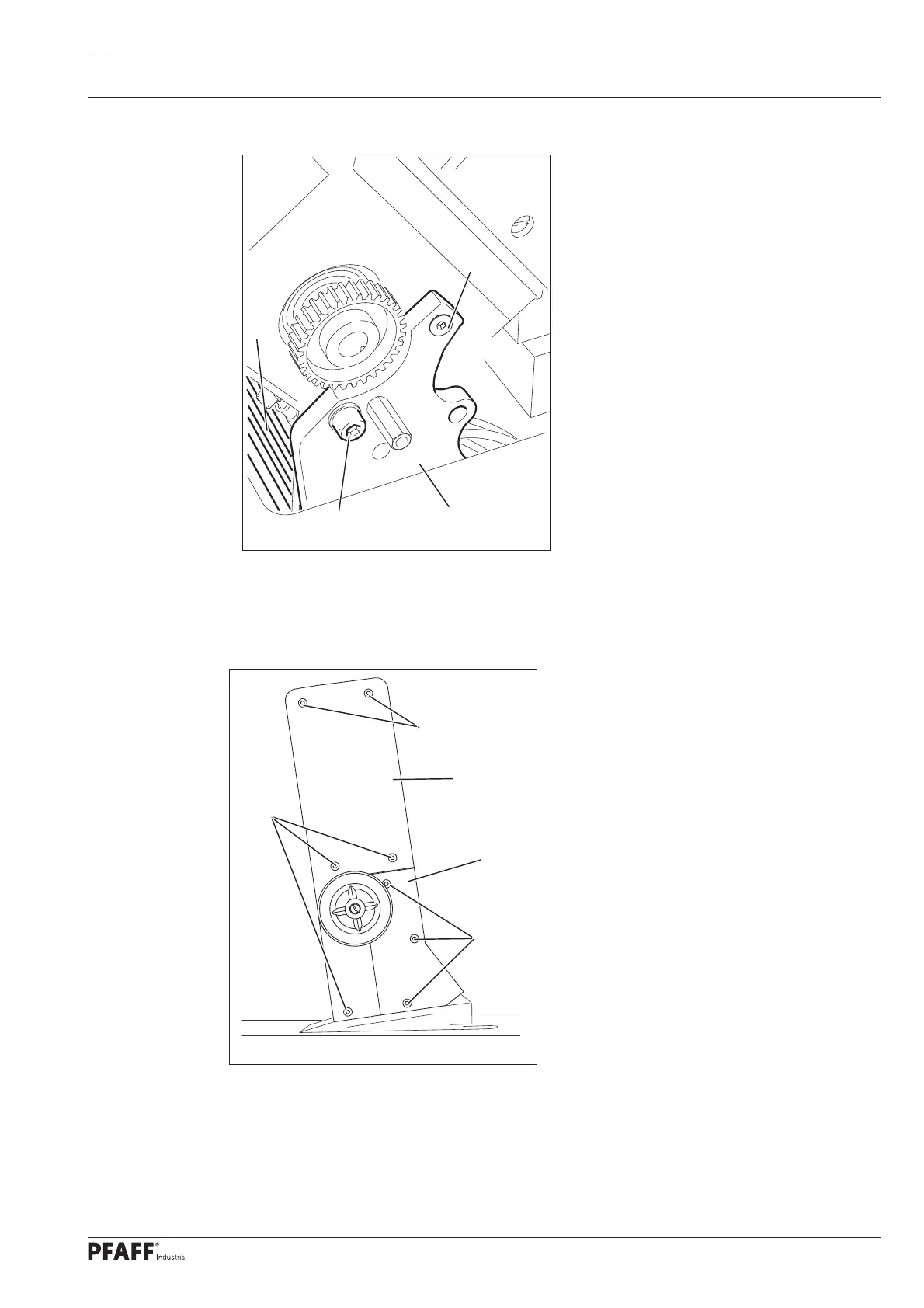

Fig. 8 - 05
8.02.02 Mounting the fl ange motor on the machine
 Use the screws 3 and 4 to fi x the bear-
ing plate 1 of the motor 2 to the ma-
chine housing (tighten the screws 3 and
4 slightly).
1
4
3
2
8.02.03 Mounting the machine cover
 Use the screws 2 (2x) and the screws 4
(3x) to fasten the cover 1 to the housing.
 Place the cover 3 on the cover 1 and fas-
ten with the screws 4 (3x).
Fig. 8 - 06
1
2
3
4
4
