Set-up
43
9
.11

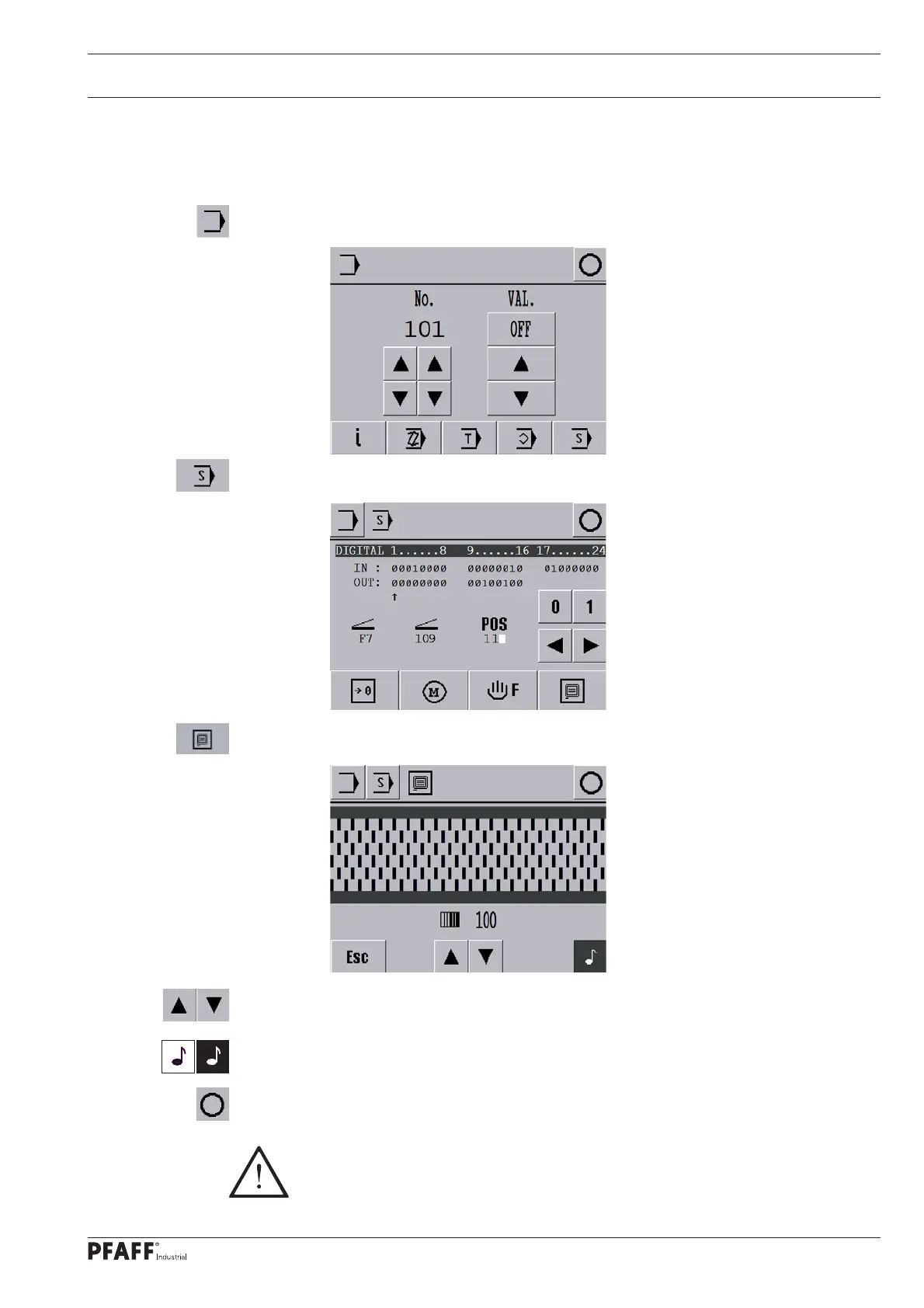

Setting the control panel
Switc
h the mac
hine on.
Call up input mode.
Call up the ser
vice menu.
Call up the control panel functions.
It is not possible to c
hange the display contrast on the BDF P
1
.
Switc
h the key tone of
f or on.
Conclude the input.
Nev
er reduce the display contrast to suc
h an extent that the displa
y can no
longer be read!
42
44
