7.09 Edge trimmer -725/04 for PFAFF 1591

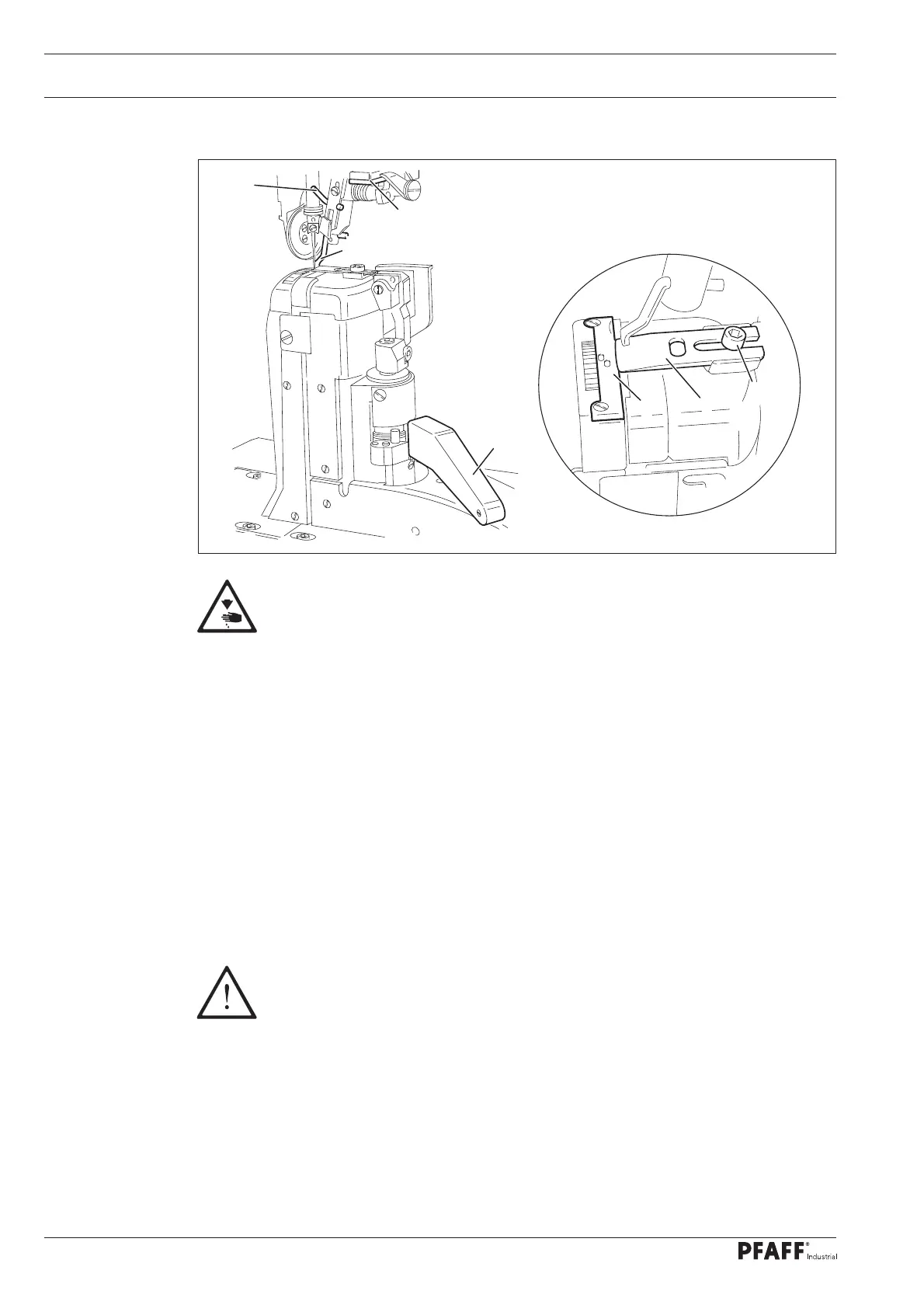

Fig. 7 - 09
1
3
2
4
Do not reach into the knife during operation! Risk of injury!
Switching on the knife drive:
 Swivel the lever 1 backwards; the knife moves to the operating position.
Switching off the knife drive:
 Press the lever 1; the knife swivels away backwards.
Switching on the edge guide:
 Swing in the edge guide 2 by hand and press the lever 3; the edge guide 2 moves to the
operating position.
Switching off the edge guide:
 Raise the edge guide 2 and allow it to engage; the edge guide 2 is out of operation.
 Raise the lever 4; the edge guide swivels away backwards.
Replacing knives:
The work described below may only be carried out by technical staff or people
with appropriate training!
 Switch off the machine.
 Release the screw 5 and remove the knife 6.
 Insert a new knife and slide it fully towards the needle plate insert 7.
 Gently tighten the screw 5.
 Adjust the knife as described in chapter 15.05.07 Knife position of the adjustment man-
ual and tighten the screw 5.
