Pfaff 1591 User Manual

Set-up and Initial Start-up
24
2
8

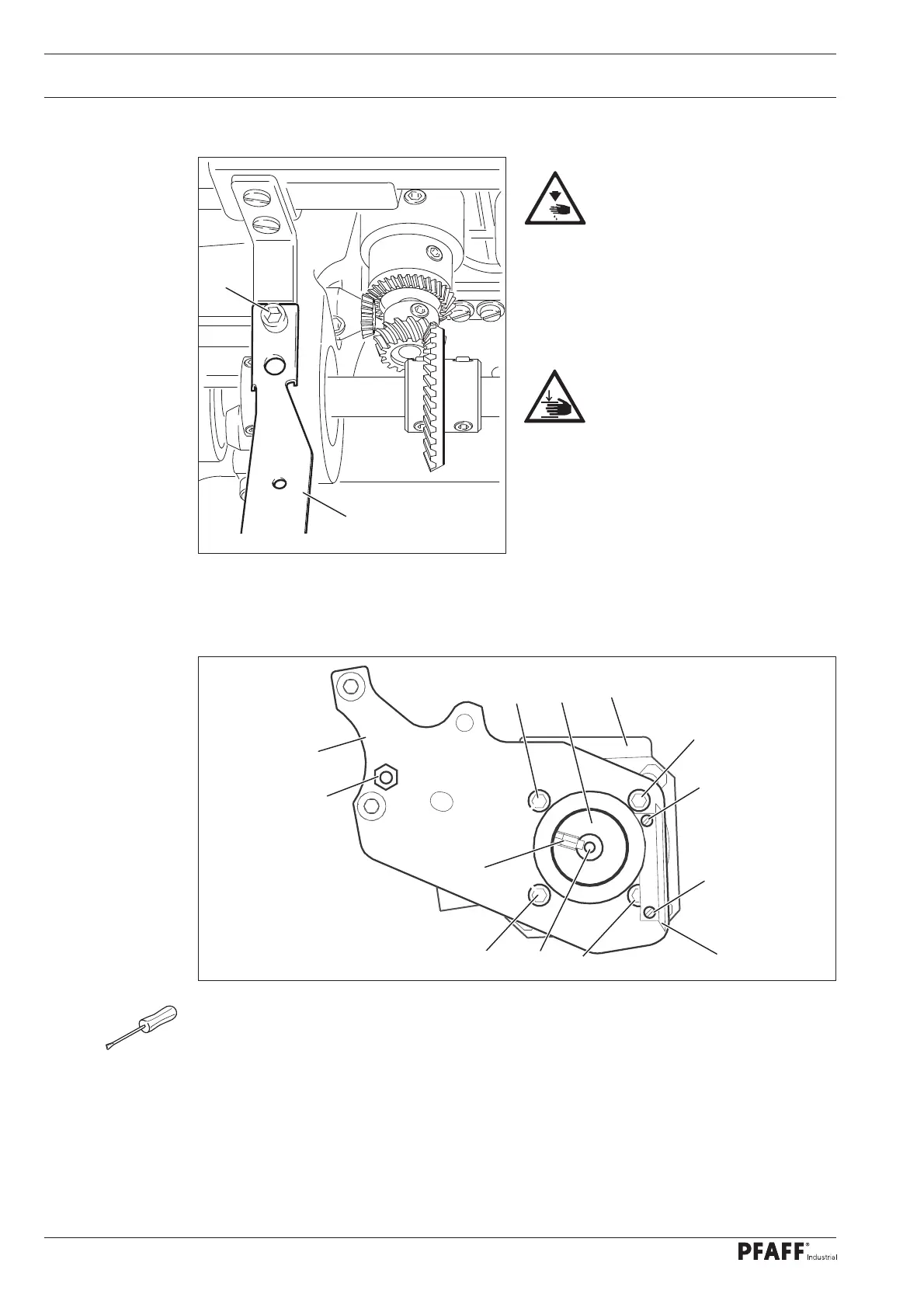

.01.03 Assembling the anti-tipping device
Fig. 8 - 03
Switch off the machine!
Risk of injury due to accidental
machine start-up!
 Screw on the anti-tipping device 1 includ-
ed in the accessories with the screw 2.
 Do not operate the machine without the
anti-tipping device 1!
Risk of injury from crushing be-
tween the sewing head and the
table top!
1
8.02 Mounting the fl ange motor
8.02.01 Mounting the fl ange motor on the bearing plate
 Fix the bearing plate 1 onto the motor 2 using the screws 3, as shown in fi g. 8-04.
 Remove the wedge from the motor shaft 4.
 Attach the angle bracket 5 with the screws 6.
 Mount the toothed belt wheel 7 onto the motor shaft 4 so that the screw 8 is positioned
with the lug in the motor shaft slot 4.
 Screw the threaded pins 9 into the bearing plate 1.
Fig. 8 - 04
1
2
3
4
5
6
7
9
8
3
3
3
6
