Pfaff 1591

Set-up and Initial Start-up
28

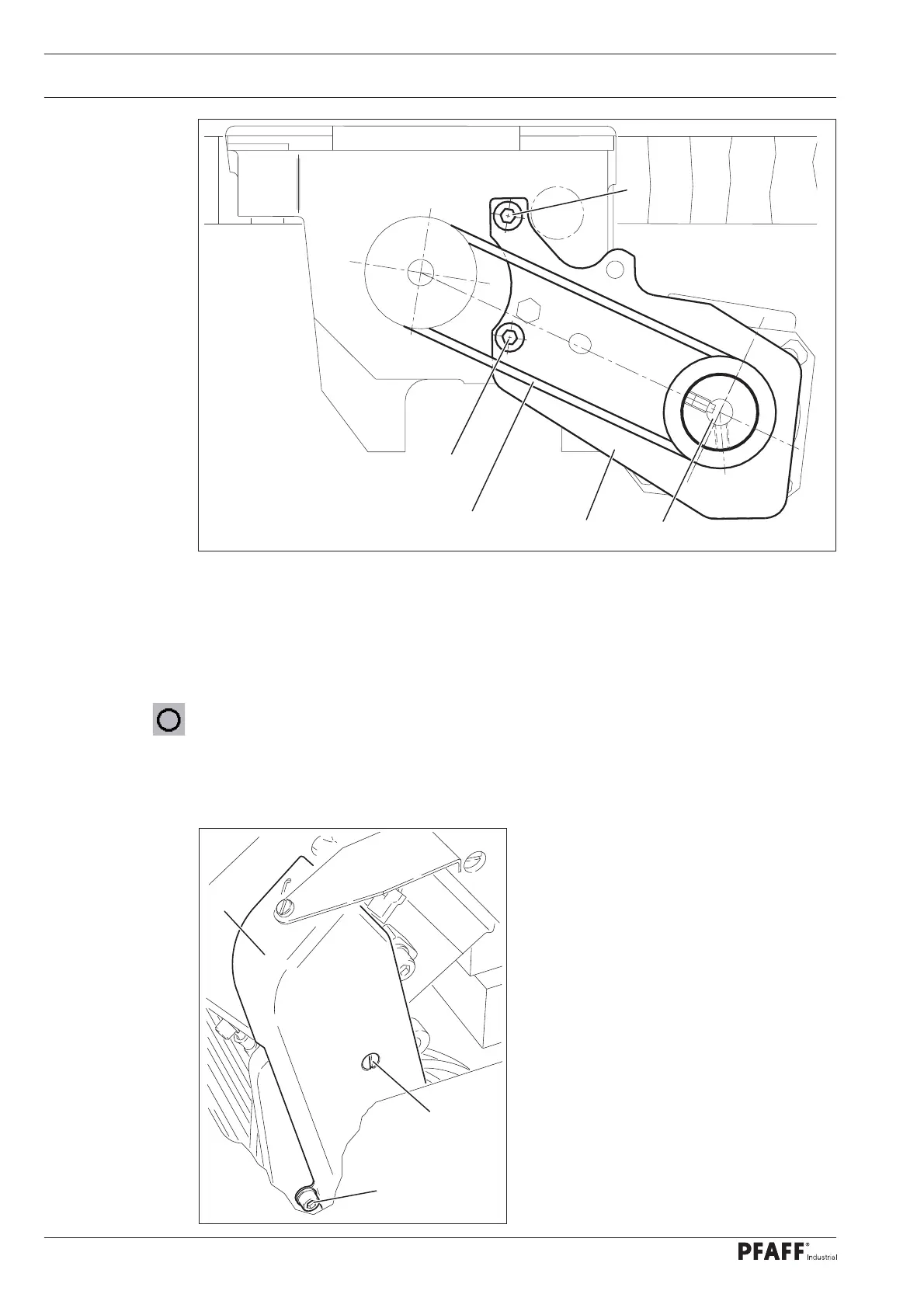

Fig. 8 - 08
 Pivot the motor bearing plate 6 so that the toothed belt 5 is taut.
 Tighten the screws 7 in this position.
 Turn the handwheel in the direction of rotation until the needle point (approaching from
above) is on the upper edge of the needle plate and check the value again. ± 2 incre-
ments are permitted as a tolerance.
 Conclude the entry.
4
5
7
6
7
8.02.06 Mounting the fl ange motor belt guard
 Attach the belt guard 1 with the screws
2 and 3.
Fig. 8 - 09
1
2
3
