Set-up
35
9
.06

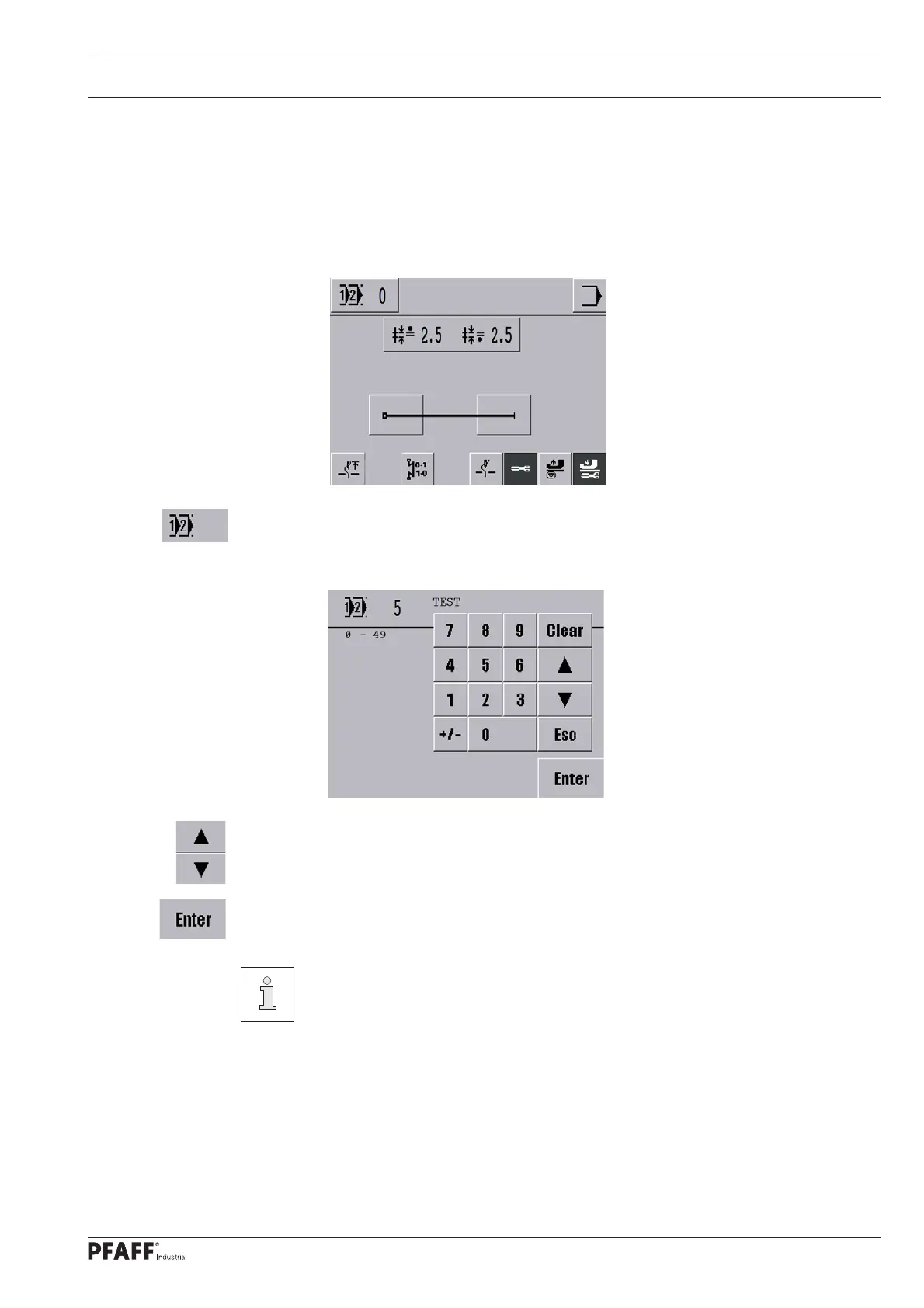

Selecting a program number
Switc
h the mac
hine on.
Call up the menu to input the program number
.
Select the desired program number or enter it via the ke
ypad
Confi
rm the selection and leav
e the selection menu.
The selection of the program number determines the type of sewing,
see
chapter 10 Sewing
.
Program number
0
: Manual
sewing
Program numbers
1
and
2
:
Sewing with fi
xed programs
Program numbers
3
to
49
: P
rogrammed
sewing
34
36
Table of Contents
Table of Contents
3
Safety
6
Directives
6
General Safety Instructions
6
Safety Symbols
7
Special Points of Attention for the Owner-Operator
7
Operating Personnel and Technical Staff
8
Operating Personnel
8
Technical Staff
8
Danger Warnings
9
Proper Use
10
Technical Data
11
Pfaff 1591
11
Pfaff 1593
12
Disposal of the Machine
13
Transportation, Packaging and Storage
14
Transport to the Customer's Premises
14
Transport Within the Customer's Premises
14
Disposal of the Packaging Materials
14
Storage
14
Work Symbols
15
Operating Controls
16
Main Switch
16
Keys on the Machine Head
16
Bobbin Thread Monitoring Using Stitch Counting
17
Pedal
17
Hand Lever to Raise the Roller Presser
18
Swivelling out the Roller Presser
18
Knee Switch
19
Knee Lever
19
Edge Trimmer -725/04 for PFAFF 1591
20
Control Panel
21
Set-Up and Initial Start-Up
22
Set-Up
22
Setting the Table Height
22
Inserting the Sewing Machine into the Stand
23
Assembling the Anti-Tipping Device
24
Mounting the Fl Ange Motor
24
Mounting the Fl Ange Motor on the Bearing Plate
24
Mounting the Fl Ange Motor on the Machine
25
Mounting the Machine Cover
25
Connecting the Plug-In Connections and Ground Cable
26
Machine Drive Home Position / Fi Tting the Toothed Belt
27
Mounting the Fl Ange Motor Belt Guard
28
Connecting the Safety Switch
29
Checking the Start Inhibitor Function
29
Assembling the Reel Stand
30
Initial Start-Up
30
Switching the Machine on / off
30
Set-Up
31
Inserting the Needle
31
Winding the Bobbin Thread, Adjusting the Thread Tension
32
Removing / Inserting the Bobbin Case
33
Inserting the Bobbin Case, Adjusting the Bobbin Thread Tension
33
Threading the Needle Thread / Adjusting the Needle Thread Tension
34
Selecting a Program Number
35
Setting Stitch Lengths
36
Entering Start and End Backtacks
37
Switching on / Setting the Bobbin Thread Monitoring Using Stitch Counting
39
Entering / Changing the Code Number
41
Setting the Control Panel
43
Inserting and Removing the SD Memory Card
44
Sewing
45
Manual Sewing
45
Sewing with Fi Xed Programs
47
Programmed Sewing
49
Program Interruption
51
Error Messages
51
Input
52
Entering Seam Programs
53
Basic Seam Program Input Settings
53
Seam Program Input Via the "Create/Correct Program" Function
55
Seam Program Input Via the "Teach-In" Function
57
Examples for Setting Seam Programs
59
Examples of Seam Program Input Using the "Create/Correct Program" Function
59
Example for Seam Program Input Via the "Teach-In" Function
61
Managing Seam Programs
63
Parameter Settings
65
Overview of Parameter Functions
65
Example of a Parameter Entry
66
List of Parameters for Control P320 and 321
67
Error Messages and Description
71
Sewing Motor Errors
72
Maintenance and Care
73
Maintenance Intervals
73
Cleaning the Machine
73
Oiling the Hook
74
Checking the Oil Level of the Hook and Front Parts
74
Lubricating the Bevel Gears
75
Topping up the Thread Lubrication Oil Reservoir
75
Lubricating the Roller Presser Drive Gear Mechanism (Only for a Diameter of 25 MM and 35 MM)
76
Cleaning the Blower Air Fi Lter
76
Tilt Base
77
Table Top
77
Table Top Cutout
78
Wear and Tear Parts
79
