Set-up and Initial Start-up
26
Fig. 8 - 07

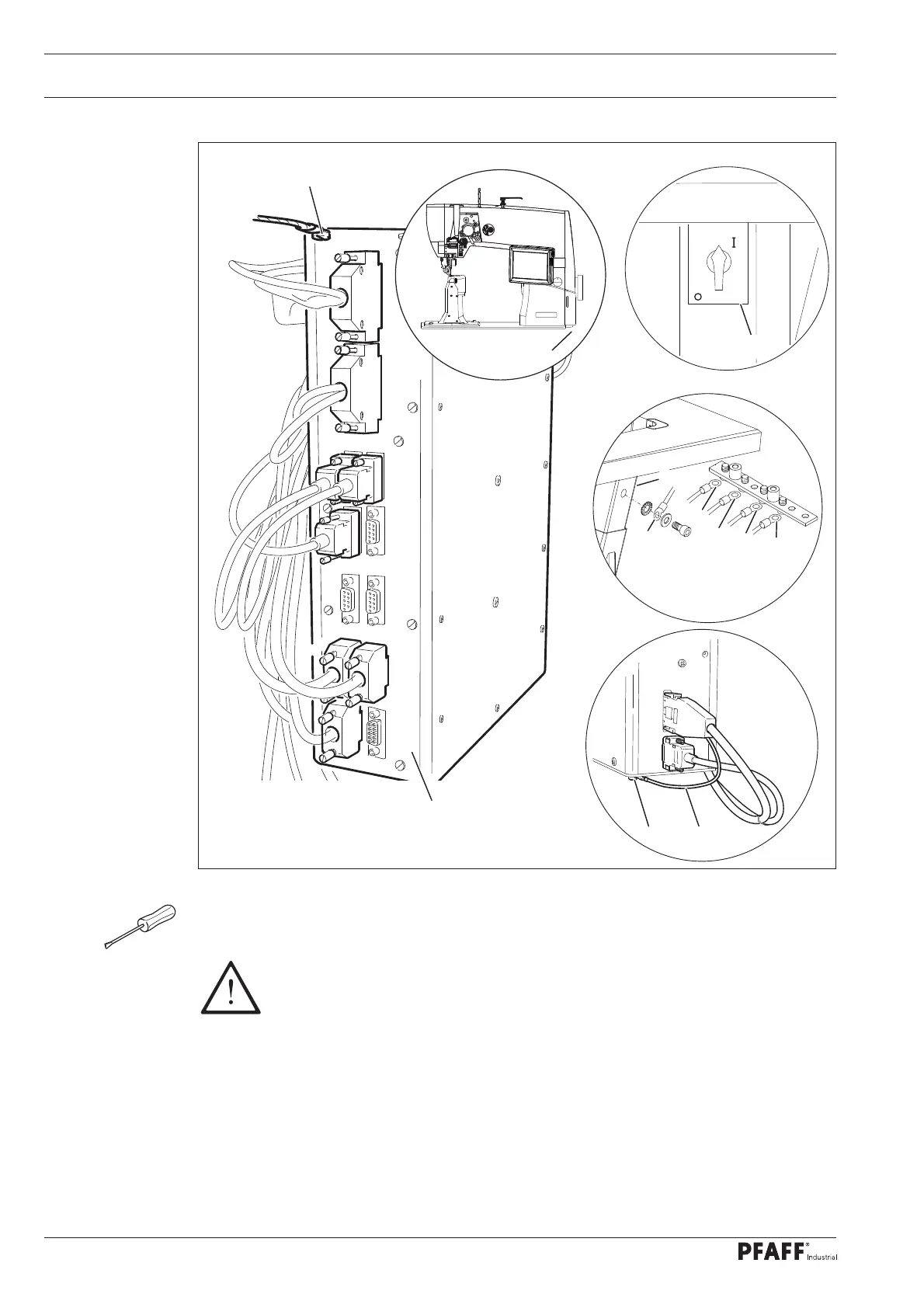

8.02.04 Connecting the plug-in connections and ground cable
Insert all plugs on the control 2 in accordance with their designation.
Attention
Plugging in connectors incorrectly can damage the control!
Attach the following ground cables in order to discharge static electricity
Securely attach the ground cable from the sewing head 1 to ground point A.
Securely attach the ground cable from the control point B to ground point B.
Securely attach the ground cable from the main switch 3 to ground point C.
Securely attach the ground cable from the stand 4 to ground point D.
Securely attach the ground cable from the motor cable M to ground point E.
B
2
1
0
3
A
B
C
D
4
D
E
M
