Pfaff 5483 Service Manual

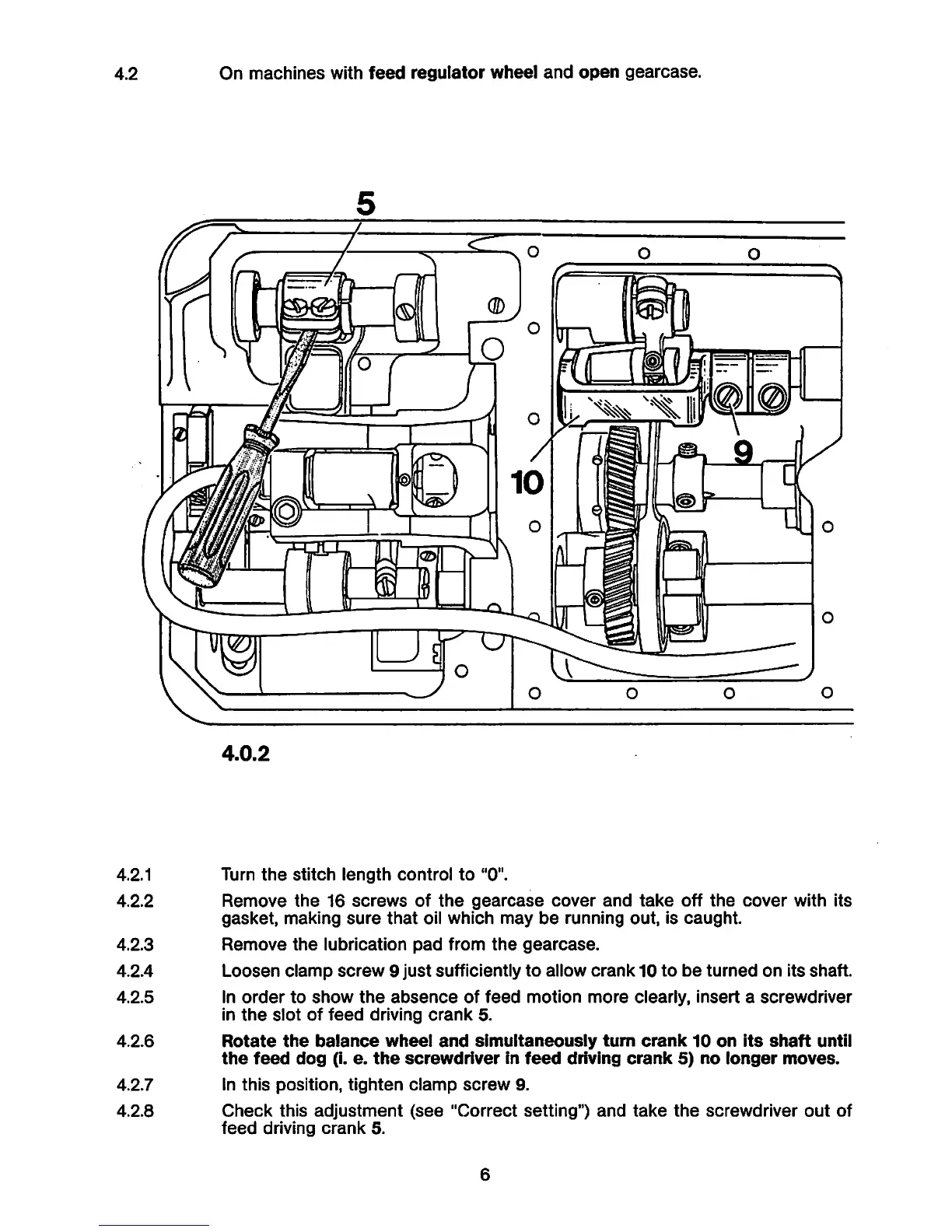

4.2
On machines with feed regulator wheel and open gearcase.
4.0.2
4.2.1 Turn the stitch length control to "0".
4.2.2 Remove the 16 screws of the gearcase cover and take off the cover with its
gasket, making sure that oil which may be running out, is caught.
4.2.3 Remove the lubrication pad from the gearcase.
4.2.4 Loosen clamp screw 9 just sufficiently to allow crank 10 to be turned on its shaft.
4.2.5 In order to show the absence of feed motion more clearly, insert a screwdriver
in the slot of feed driving crank 5.
4.2.6 Rotate the balance wheel and simultaneously tum crank 10 on Its shaft until
the feed dog (i. e. the screwdriver in feed driving crank 5) no longer moves.
4.2.7 In this position, tighten clamp screw 9.
4.2.8 Check this adjustment (see "Correct setting") and take the screwdriver out of
feed driving crank 5.
