6 The MultiOne interfaces
6.1 DALI

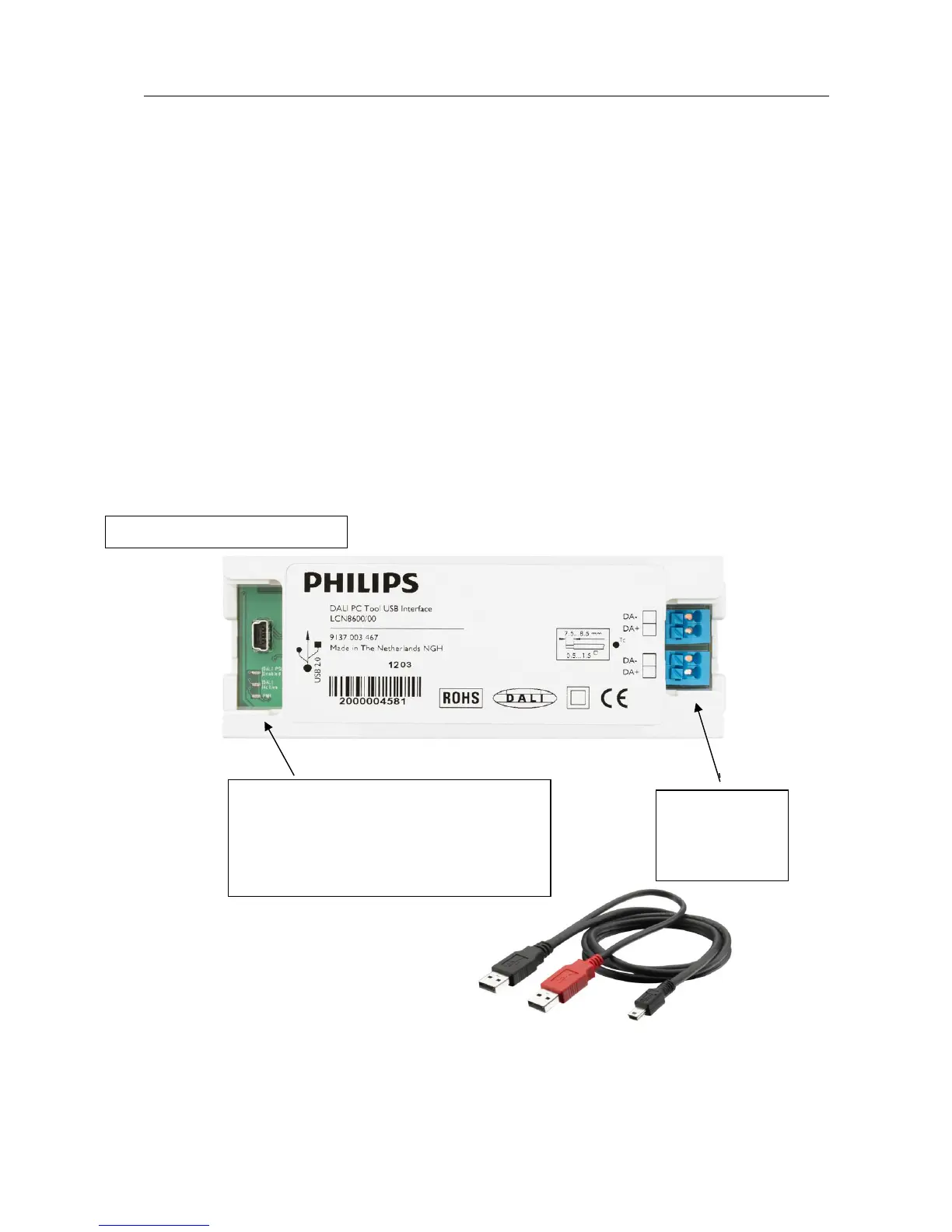

The Philips LCN8600 MultiOne interface USB2DALI (USB2DALI interface) is the
interface between the PC and the DALI devices. It has a mini- USB input connector
and two parallel DALI output connectors. The USB2DALI interface status is indicated
by three LED’s located near the mini-USB connector.
The USB2DALI interface is supplied with a USB cable that can supply the DALI
network with up to 220mA. It is advised to only use the supplied cable, in order to
assure correct functioning of the USB2DALI interface.
 Safety: Class II, double insulated
 DALI open circuit voltage (when power supply enabled): 15V
mini-USB input connector
Status LEDs:
 DALI power supply enabled
 DALI active
 Power
Double DALI
output
connector
