System description
103503_en_03 PHOENIX CONTACT 2-11
Wiring check If the connection editor is in startup mode, the wiring check can be used to easily check the
terminal block position of the input used in the logic. A graphical link directs the user to the
right position and provides a better overview of the control cabinet.
1. Requirement: The PSR-TRISAFE-S safety module must be running.
Switch the connection editor to online mode, then to startup mode.
2. In the connection editor, position the cursor over the symbol for the input or output you
want to check, without clicking. The symbol starts to flash after around one second.
At the same time, the LED for the corresponding I/O also starts to flash on the
PSR-TRISAFE-S safety module.

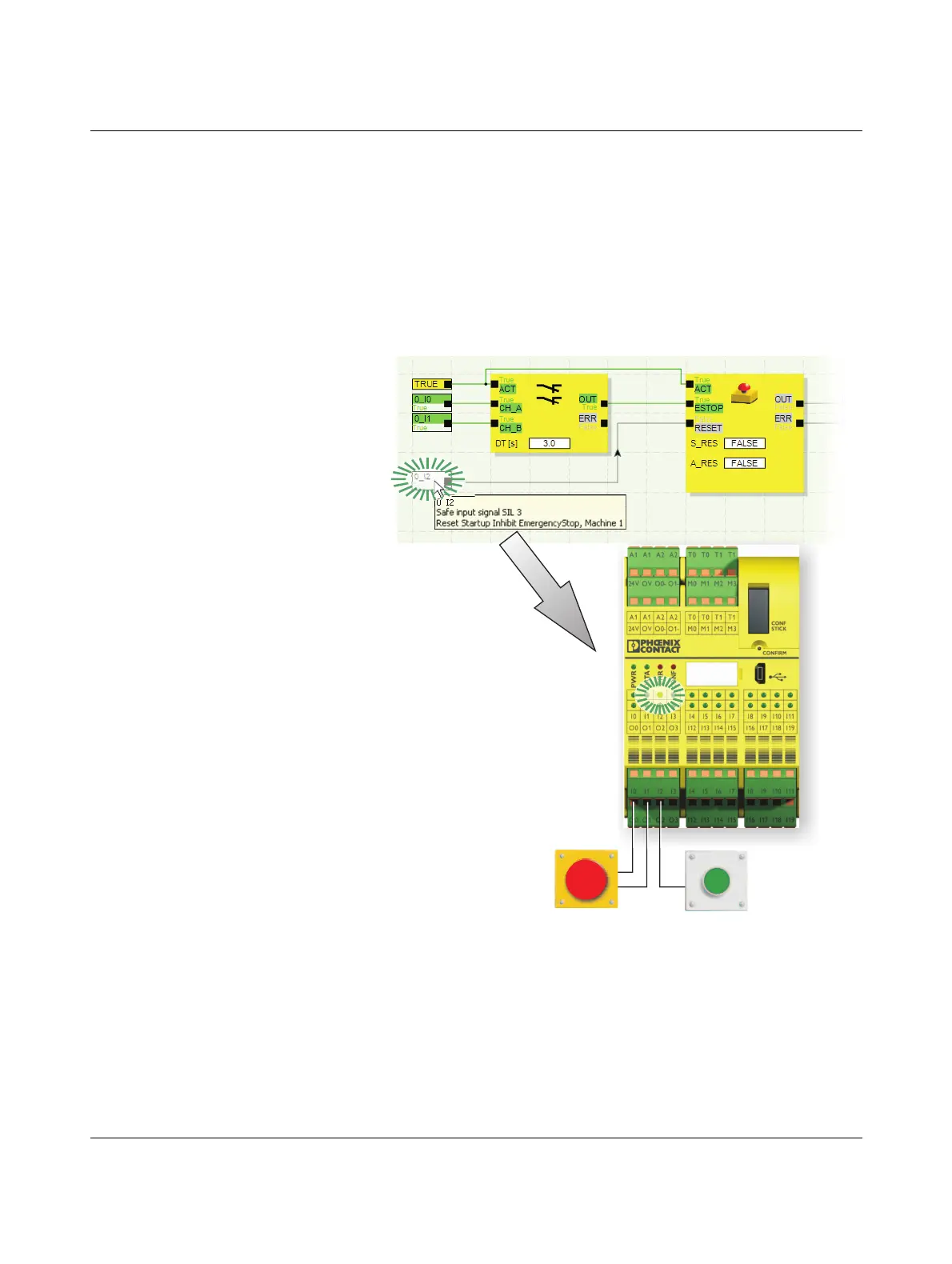

Figure 2-7 Simplified schematic view: Wiring check
103503a015.eps
LED for the wired input
flashes on the safety
module
Emergency stop Reset
Do not click
