PSR-TRISAFE-S
3-12
PHOENIX CONTACT 103503_en_03
3.6 IFS-CONFSTICK
The PSR-TRISAFE-S safety module is equipped with a plug-in memory module, the
IFS-CONFSTICK.

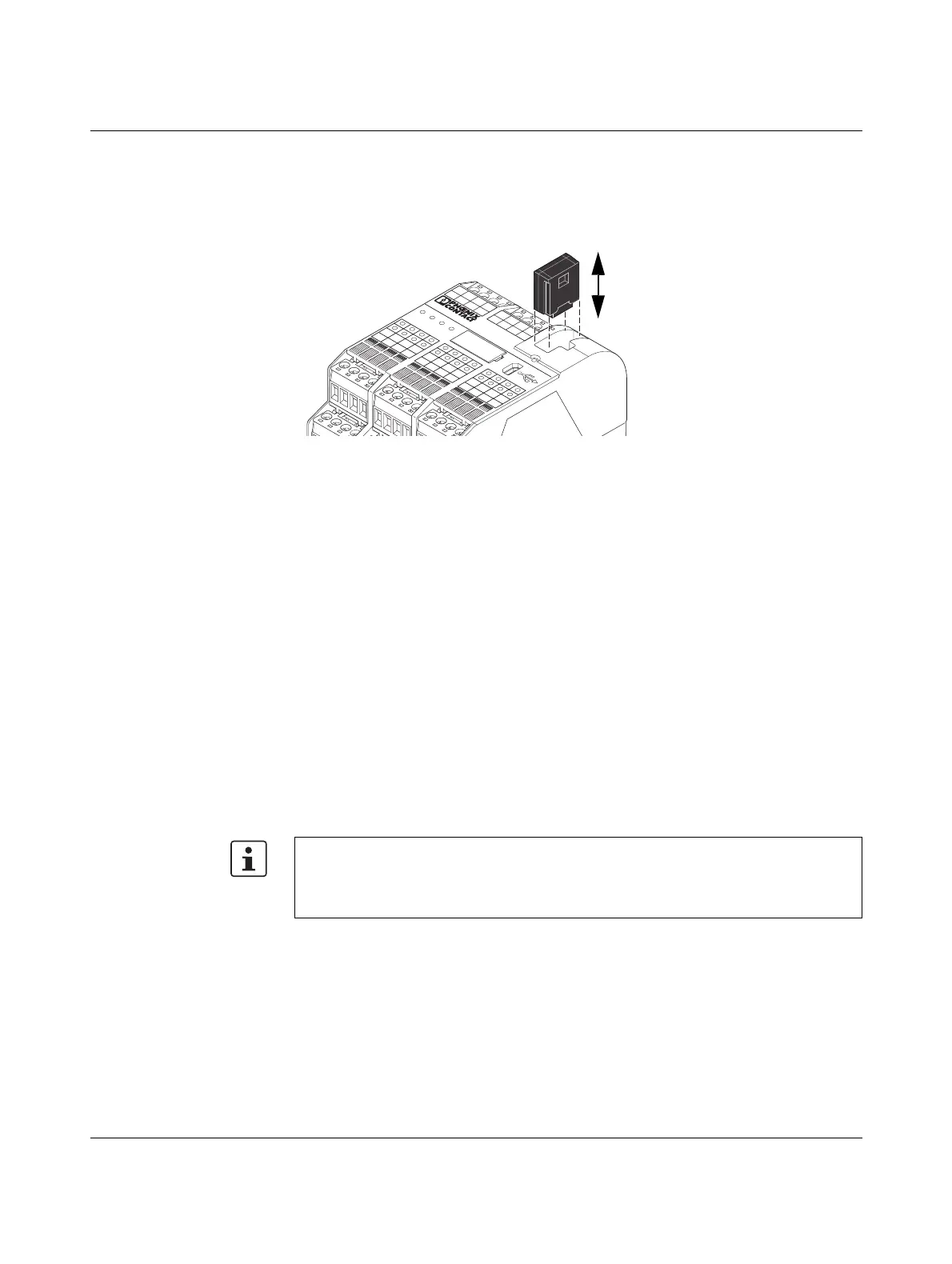

Figure 3-8 IFS-CONFSTICK on the PSR-TRISAFE-S
IFS-CONFSTICK as a
hardkey
The IFS-CONFSTICK must be inserted in the PSR-TRISAFE-S safety module both during
normal operation and for downloading configuration data from SAFECONF via the USB
interface.
If no IFS-CONFSTICK is inserted in the safety module or if it is removed, the safety module
behaves as follows:
– If no IFS-CONFSTICK is inserted when downloading configuration data, the
configuration cannot be downloaded and SAFECONF outputs an error message.
– If no IFS-CONFSTICK is inserted when the safety module is started, the module sets
all outputs to FALSE and indicates an error. The safety module does not execute any
functions.
– If the IFS-CONFSTICK is removed during operation, the safety module sets all outputs
to FALSE and indicates an error. The safety module does not execute any more
functions.
– If the IFS-CONFSTICK is removed from the safety module and reinserted as described
in "Downloading the configuration using the IFS-CONFSTICK" on page 5-7, the safety
module sets all outputs to FALSE and does not execute any functions until the
IFS-CONFSTICK is inserted again correctly. The safety module does not indicate an
error.
I0
P
W
R
DATA
ERR
C
O
N
F
I8
I4
I12
I1
I9
I5
I13
I2
I10
I6
I14
I3
I11
I7
I15
O0
I16
O1
I17
O2
I18
O3
I19
A1
A1
A2
A2
24V
0V
O0-
01-
T0
T0
T1
T1
M
1
M
2
M
3
M
0
CONFIRM
PSR-TRISAFE-S
CONF
STICK
As an alternative to downloading the configuration via the USB interface, it can be
downloaded to the PSR-TRISAFE-S safety module using the IFS-CONFSTICK. For a
description of this procedure, please refer to "Downloading the configuration using the
IFS-CONFSTICK" on page 5-7.
