4.5 Operating the SAFECONF configuration software
Intuitive operation The SAFECONF configuration software follows the Windows standard for all user activities.
However, SAFECONF offers a wide range of functions, which far exceeds the standard
level of performance in this sector. Examples include online diagnostic tools and simulation
of the safety module.
Details in the online help A description of the wide range of functions exceeds the scope of this user manual,
therefore please refer to the online help, which contains a detailed description of each
software function.
For an overview of the steps required when configuring a project, please refer to
"Configuration overview from A to Z" on page 5-1.
The following sections provide a brief introduction to the most important software functions.
4.5.1 Creating the configuration project
When creating a new project, either use a project template or create an empty project using
the Project Wizard.
"Empty" means that although the safety module is already available in the hardware editor
for "wiring" the signals, the connection editor does not yet contain any safety logic.
If a project template is used, a predefined circuit, which can be modified or extended as
required, will be inserted into the connection editor.
To create a new project, select "New Project..." in the "File" menu, use the keyboard
shortcut <Ctrl>+<N> or click on the following icon:
In the "New Project" dialog box that appears, select either the Project Wizard or a specific
project template.

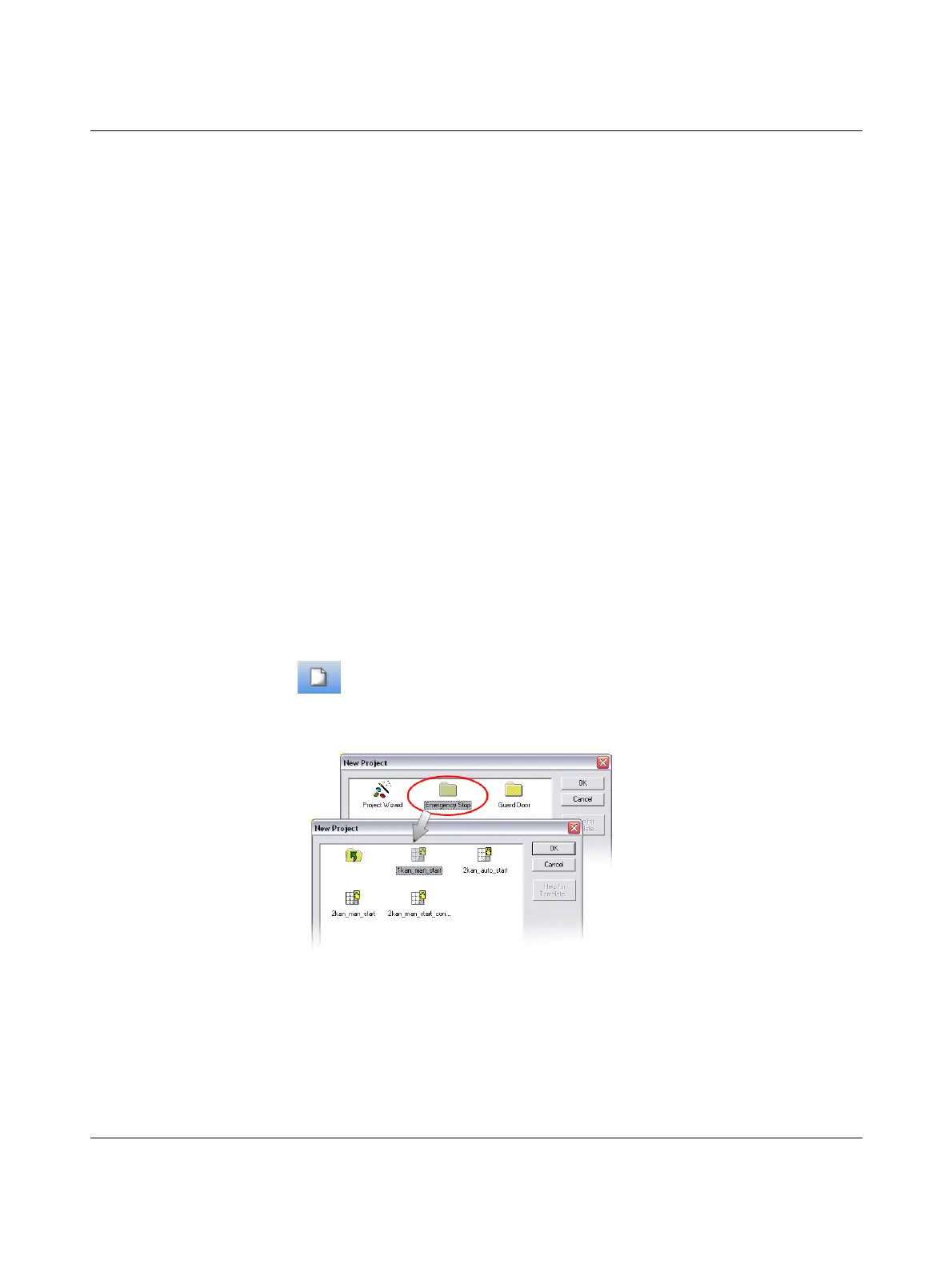

Figure 4-3 Project Wizard for creating a new configuration project, using a project
template
