6. Reinsert the IFS-CONFSTICK while holding down the "Confirm" button.

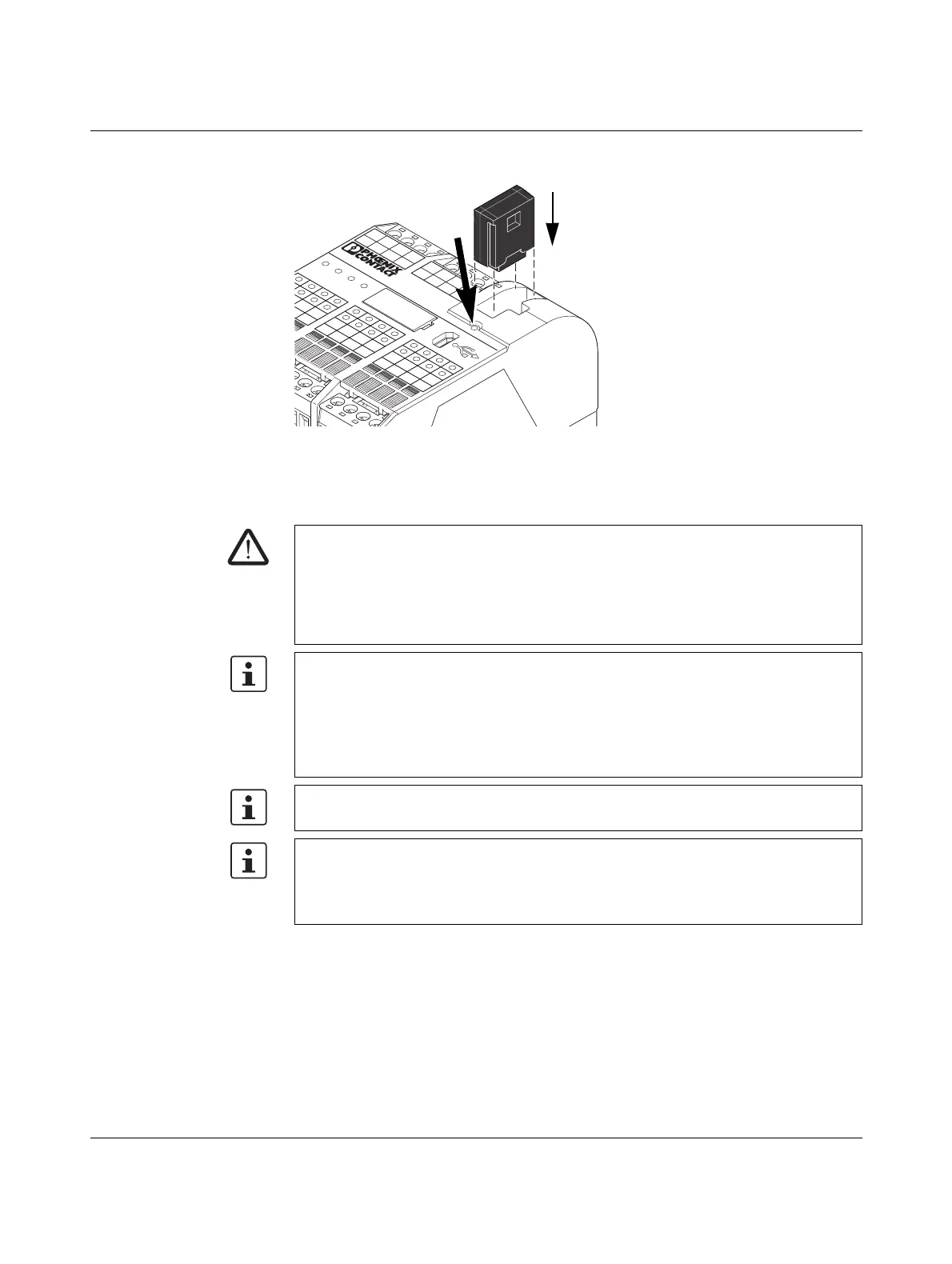

Figure 5-7 Pressing the "Confirm" button while inserting the IFS-CONFSTICK
7. Release the "Confirm" button once the IFS-CONFSTICK is inserted correctly. The
safety module now initializes with the new configuration.
WARNING: Risk due to activated outputs.
When the IFS-CONFSTICK is replaced, outputs may be activated. Once the configuration
has been downloaded in this way, the safety module starts with the program execution.
Provided that no startup inhibit, which must be cancelled manually, is active, outputs may
be activated immediately. Make sure that the safety module startup will not lead to any
hazardous situations.
Startup inhibit active?
If a startup inhibit has been predefined in the configuration, it will now be active following
startup. An active startup inhibit must be cancelled by pressing a reset button which is
connected to the safety module according to the configuration.
For additional information, please refer to "System startup and restart behavior" on
page 2-5.
If the safety module is not initialized correctly, proceed as described in "Problems and
solutions" on page 7-1.
When the IFS-CONFSTICK has been removed correctly, all of the safety module outputs
are FALSE. While the IFS-CONFSTICK is not inserted, the safety module has no function.
If the IFS-CONFSTICK is not removed correctly, the safety module also displays an error
message.
PW
R
DATA
ERR
CONF
I8
I4
I12
1
I9
I5
I13
I2
I10
I6
I14
I3
I11
I7
I15
I16
I17
O2
I18
O3
I19
A1
A1
A2
A2
24V
0V
O0-
01-
T0
T0
T1
T1
M1
M2
M3
M0
CO
NFIRM
PSR-TRISAFE-S
CO
NF
STIC
K
Hold down the "Confirm" button
while inserting the
IFS-CONFSTICK
