3. Now trigger a safety demand via the safe control devices. Monitor the response of the
machine and the configuration in the connection editor, which has been switched to
online mode.
Example:

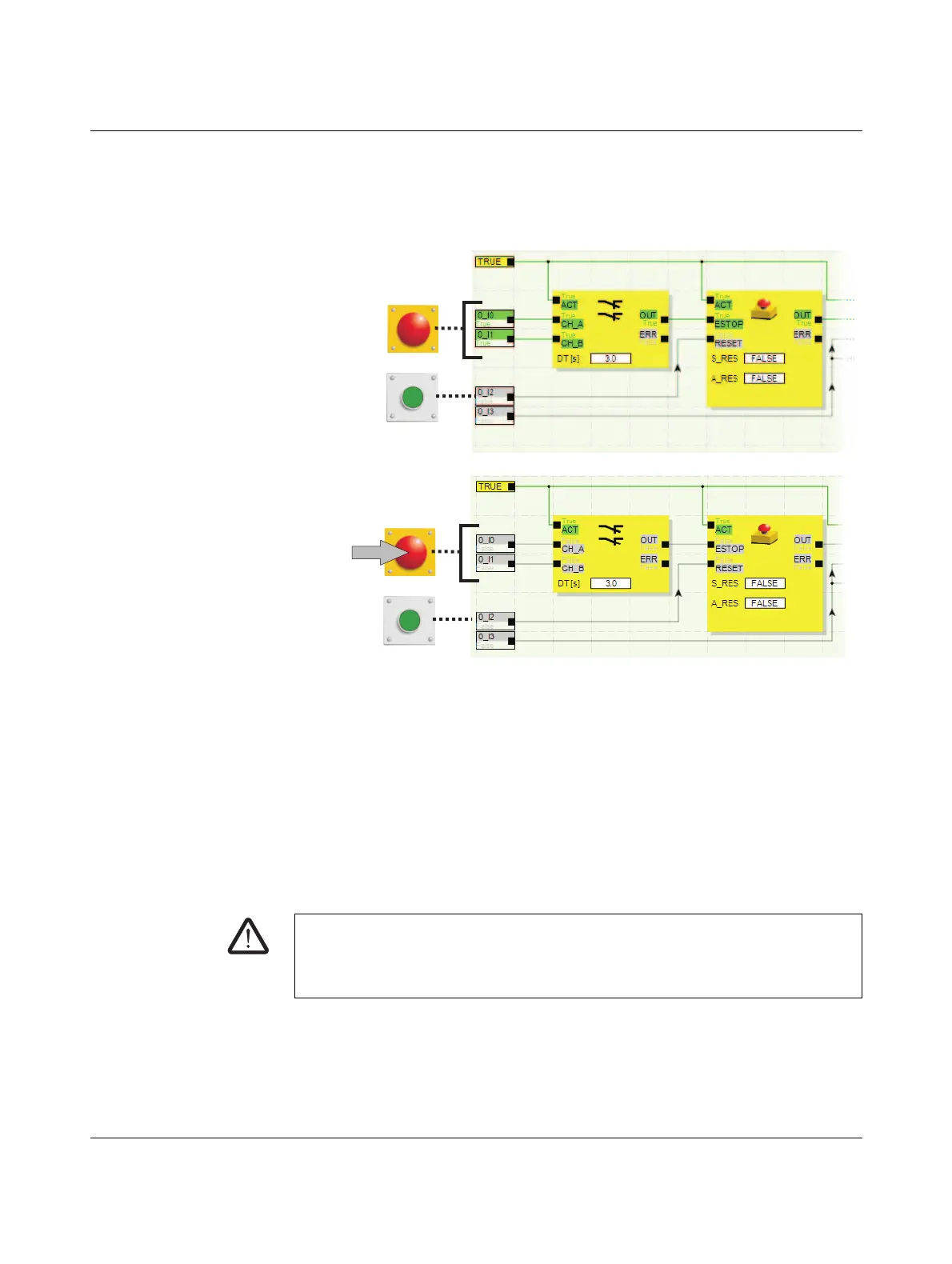

Figure 5-8 Example of a function test for the safety system using SAFECONF online
mode
5.6 Startup mode
In addition to the mandatory function test using online mode (see "Function test" on
page 5-10), startup mode can also be used.
For example, instead of pressing the emergency stop control device or opening the safety
door, in startup mode you can force the signal corresponding to the safe control device in
the connection editor.
WARNING: The test in startup mode does not replace the proper function test.
The test of the safety application using startup mode must not replace the proper function
test using safe control devices. The test in startup mode may only be performed in
addition to the standard function test, as a preliminary test, for example.
103503a011.eps
Emergency stop not
pressed, no safety
demand
Safety demand
