PSR-TRISAFE-S
4-12
PHOENIX CONTACT 103503_en_03
1. Display the hardware editor ("Hardware Editor" in the "View" menu). If the auto-hide
function is enabled, position the cursor over the minimized window as shown in the
figure below.

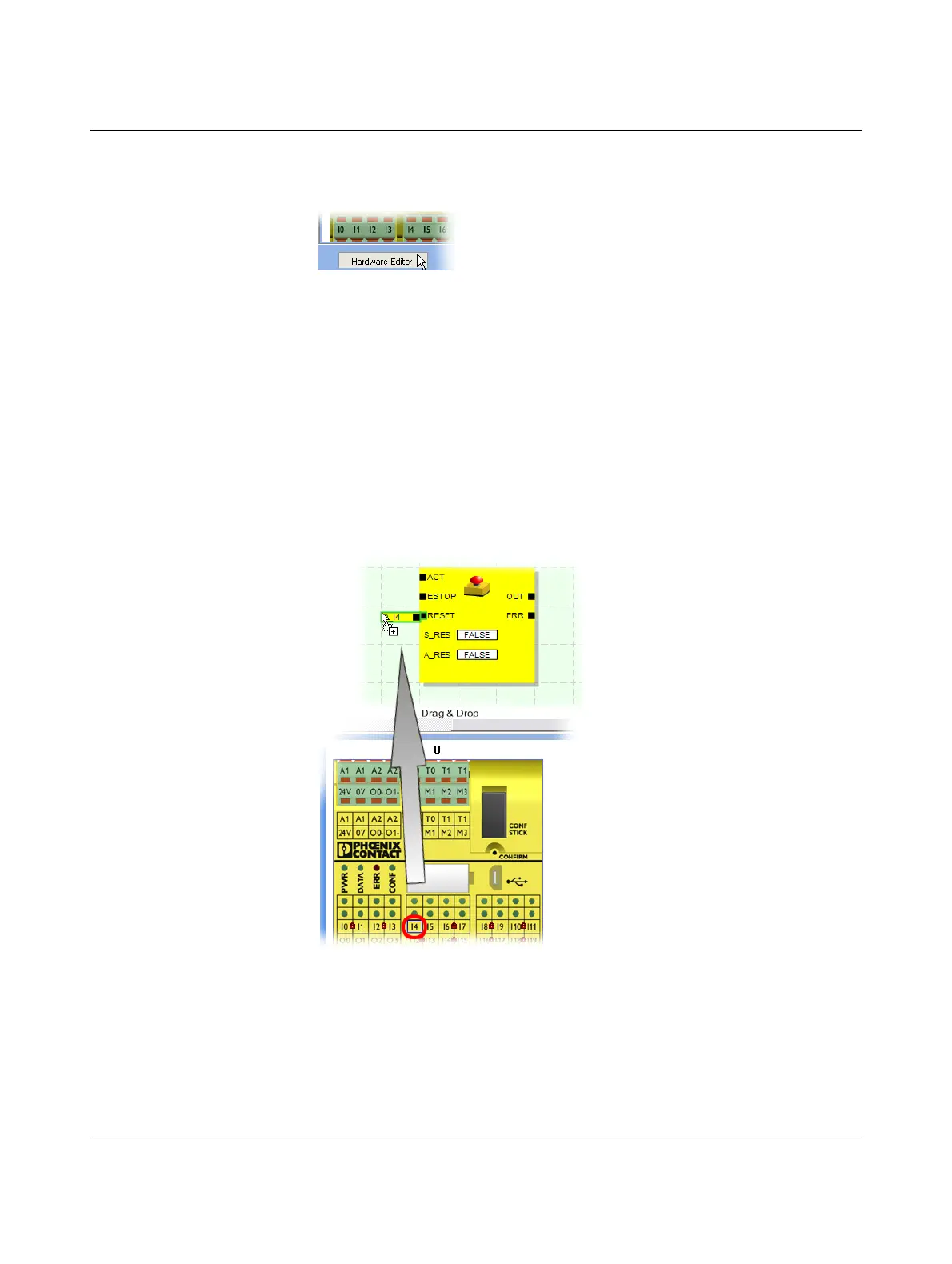

Figure 4-5 Opening the hardware editor with the auto-hide function enabled
2. Drag the required (dual) input signal or output signal from the hardware editor into the
connection editor as follows (see Figure 4-6 on page 4-12):
– Left-click on the required (dual) signal and hold the mouse button down. Please
refer to the information below on using dual signals.
– Hold the left mouse button down and drag the (dual) signal from the hardware
editor directly to a free connection (or two free connections, in the case of a dual
signal) in the safety logic, then release the mouse button.
– Alternatively, you can store signals at any free position in the connection editor.
The free signals must then be linked to free functional block connections manually
(see "Connecting objects" on page 4-14).
The (dual) signal is stored at the selected position (aligned with the grid) and, if
applicable, directly connected to the corresponding connection.
Figure 4-6 Inserting a signal in the connection editor
