PSR-TRISAFE-S
5-6
PHOENIX CONTACT 103503_en_03
Do not confirm this message yet, first complete the following step.

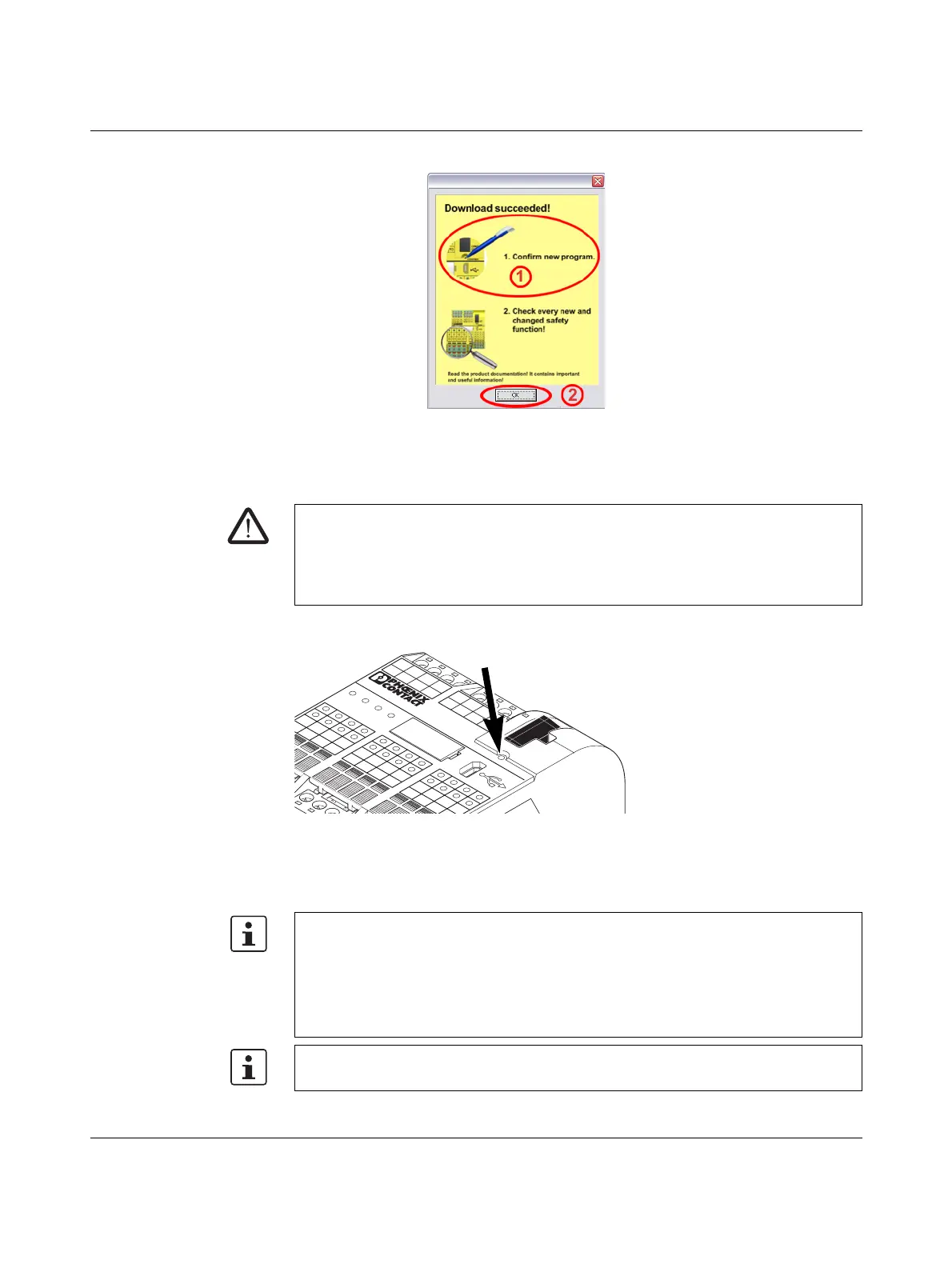

Figure 5-5 Message dialog box following successful data transmission
6. Confirm the new configuration by pressing the "Confirm" button using a pen (see
Figure 5-6).
Figure 5-6 Confirming the configuration with the "Confirm" button
The safety module is then reinitialized (all status indicators are on briefly) and then switches
to safe normal operation (only "PWR" LED on).
WARNING: Risk due to activated outputs.
Following the confirmation described in this step, the safety module starts running
immediately. Provided that no startup inhibit, which must be cancelled manually, is active,
outputs may be activated immediately after startup. Make sure that the safety module
startup will not lead to any hazardous situations.
Startup inhibit active?
If a startup inhibit has been predefined in the configuration, it will now be active following
startup. An active startup inhibit must be cancelled by pressing a reset button which is
connected to the safety module according to the configuration.
For additional information, please refer to "System startup and restart behavior" on
page 2-5.
If the safety module is not initialized correctly, proceed as described in "Problems and
solutions" on page 7-1.
First acknowledge the configuration on
the safety module
(see step 6.) ...
Please note:
... before clicking "OK".
I0
PW
R
DATA
ERR
CONF
I8
I4
I12
I1
I9
I5
I13
I2
I10
I6
I14
I3
I11
I7
I15
O0
I16
O1
I17
O2
I18
O3
I1
A1
A1
A2
A2
24V
0V
O0-
01-
T0
T0
T1
T1
M1
M2
M3
M0
C
ONFIRM
PSR-TRISAFE-S
CO
NF
STICK
