PDP-5000EX
119
5678
56
7
8
C
D
F
A
B
E
8.1.3 OPERATION OF SERVICE FACTORY MODE
8.1.4 REMOTE CONTROL CODE
¶ User data
User data will be treated as follows:
• User data on picture- and audio-quality adjustments are not reflected, and factory-preset data are output (user data will be
retained in memory). When the unit enters Factory mode, the current audio-quality adjustment data will still be retained in
memory.
• As to data on various settings, user data will be applied to the items that are associated with signal format change (screen
size switching, etc.).
• Data on screen (i.e., screen position; meaning clock dividers, and not including data on screen size) are reset to the default
values (data stored in memory will be retained). Screen size will be retained.
¶ Functions whose settings are set to OFF
The following functions are set to off when Service Factory mode is entered (including when the FAY command is
received).
Function Remarks Function Remarks
2-screen operation
The main input signal is
displayed.
ORBITER Center-value operation
Mask control Panel mask
Table 1. Functions whose settings are set to OFF
SR Function Main Function Remarks
Muting Switching the main items Shifting to the next main item (top)
(5) UP Switching the sub items Shifting upward to the next upper layer
(∞) DOWN Switching the sub items Shifting downward to the next subtitled item
(2) LEFT
Decreasing the adjustment
value
Decreasing the adjustment value/Modify setting of
selections.
(3) RIGHT
Increasing the adjustment
value
Increasing the adjustment value/Modify setting of
selections.
SET
Switching layers
Shifting downward or upward to the next lower or upper
layer/Decision
INPUT Selecting input Shifting the input to the next function
INPUT **
Selecting input
Switching the input to (**=1 to 6)
DRIVE ON/OFF DRIVE OFF Turning the Drive mode off (Factory remote control)
POWER Power OFF Turning the power off
FACTORY Factory OFF Turning Service Factory mode off (Factory remote control)
MENU Menu ON Turning Service Factory mode off and Menu mode on

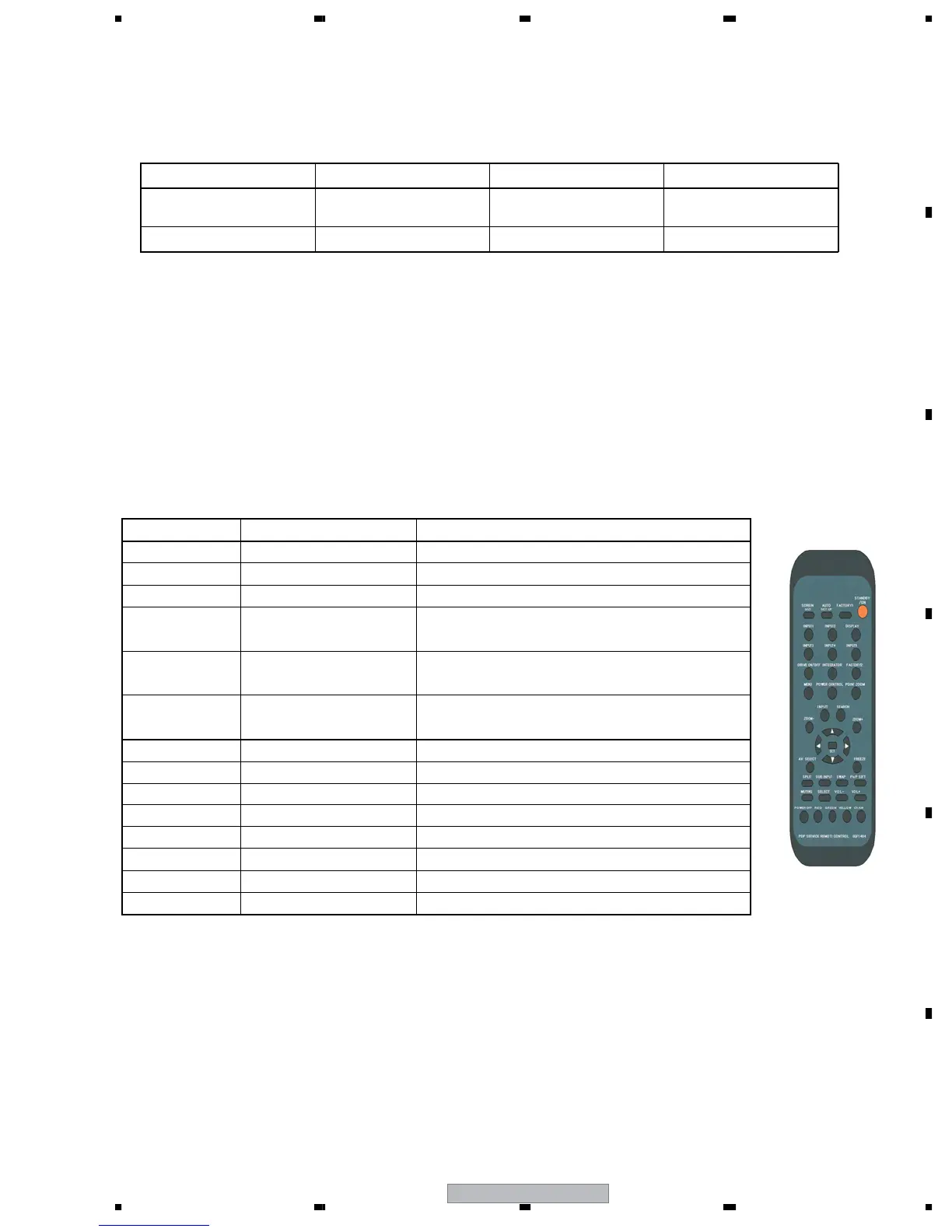

Table 2. Functions of the keys on the remote control unit while in Service Factory mode
Factory remote
control unit
VOLUME+ Volume UP. Increasing 10 the adjustment value. (PANEL FACTORY)
VOLUME- Volume DOWN. Increasing 10 the adjustment value. (PANEL FACTORY)
