Pioneer PDP-5000EX Service Manual

PDP-5000EX
114
1234
1234
C
D
F
A
B
E

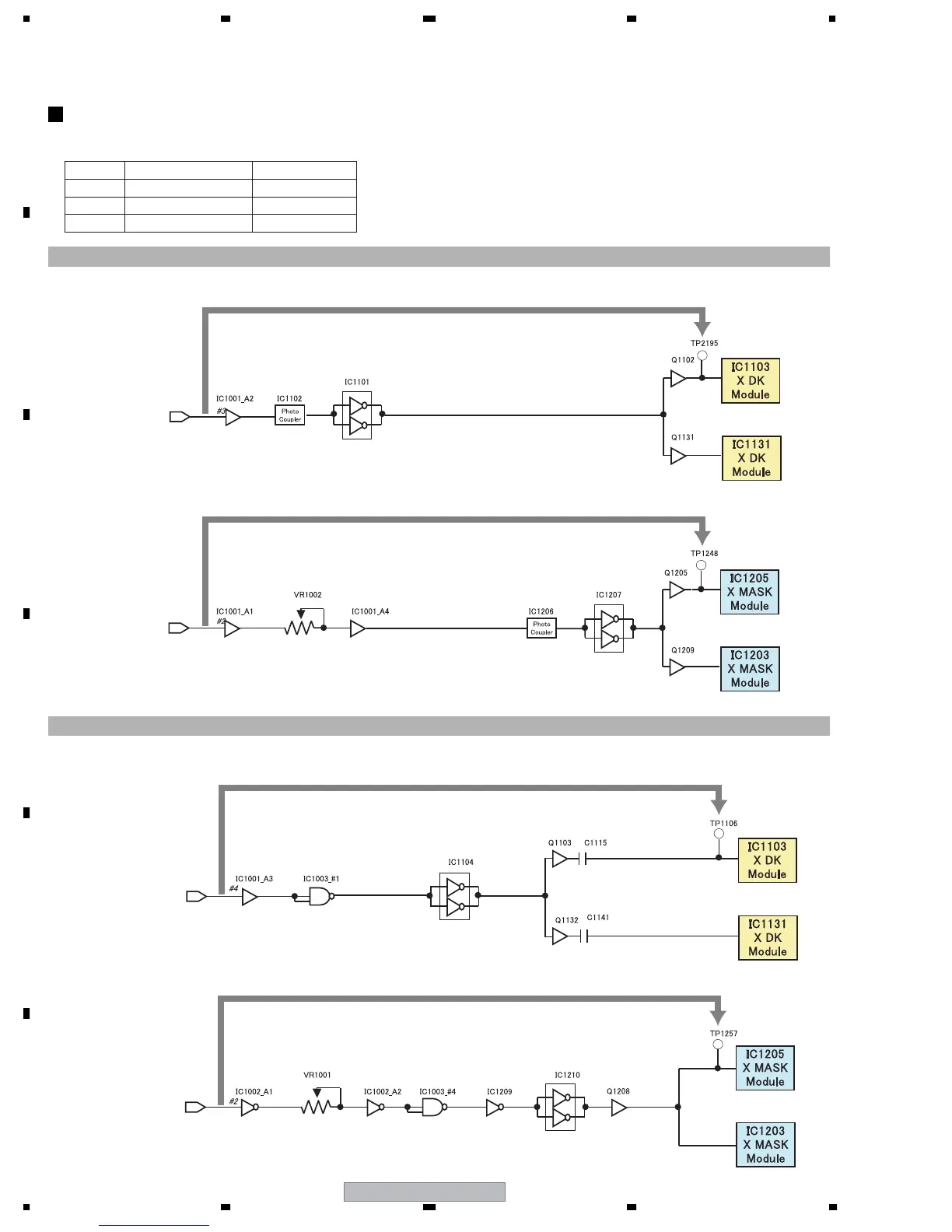

7.5 ADJUSTMENTS WHEN THE DRIVE ASSYS ARE REPLACED
1 Measure the SUS-U input delay time (∆ Tsus-u).
2 Adjust the SUS-B input delay time so that it becomes "∆ Tsus-u + α ± 5 nsec."
2 Adjust the SUS-G input delay time so that it becomes "∆ Tsus-d + β ± 5 nsec."
1 Measure the SUS-D input delay time (∆ Tsus-d).
XSUS-U
XSUS-B
XSUS-D
XSUS-G
50 FHD X DRIVE Assy
SUS-B ADJUSTMENT
SUS-G ADJUSTMENT
from
DIGITAL Assy
from
DIGITAL Assy
from
DIGITAL Assy
from
DIGITAL Assy
Object parts
Ref. No. Part Category Part No.
IC1206 Photo Coupler PS9117-TLB
IC1207 FET Driver TND307TD-TBB
IC1210 FET Driver TND307TD-TBB

Pioneer PDP-5000EX Specifications

General

Depth	98 mm
Width	1282 mm
Height	750 mm
Weight	39800 g
Pixel pitch	- mm
Product color	Black
Audio (L/R) in	1
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	50 \
Display brightness	1000 cd/m²
Display technology	Plasma
Power requirements	AC 110 - 240 V, 50/60 Hz
Contrast ratio (typical)	3000:1
Power consumption (standby)	0.4 W
Power consumption (typical)	420 W
