Pioneer PDP-5000EX Service Manual

PDP-5000EX
22
1234
1234
C
D
F
A
B
E

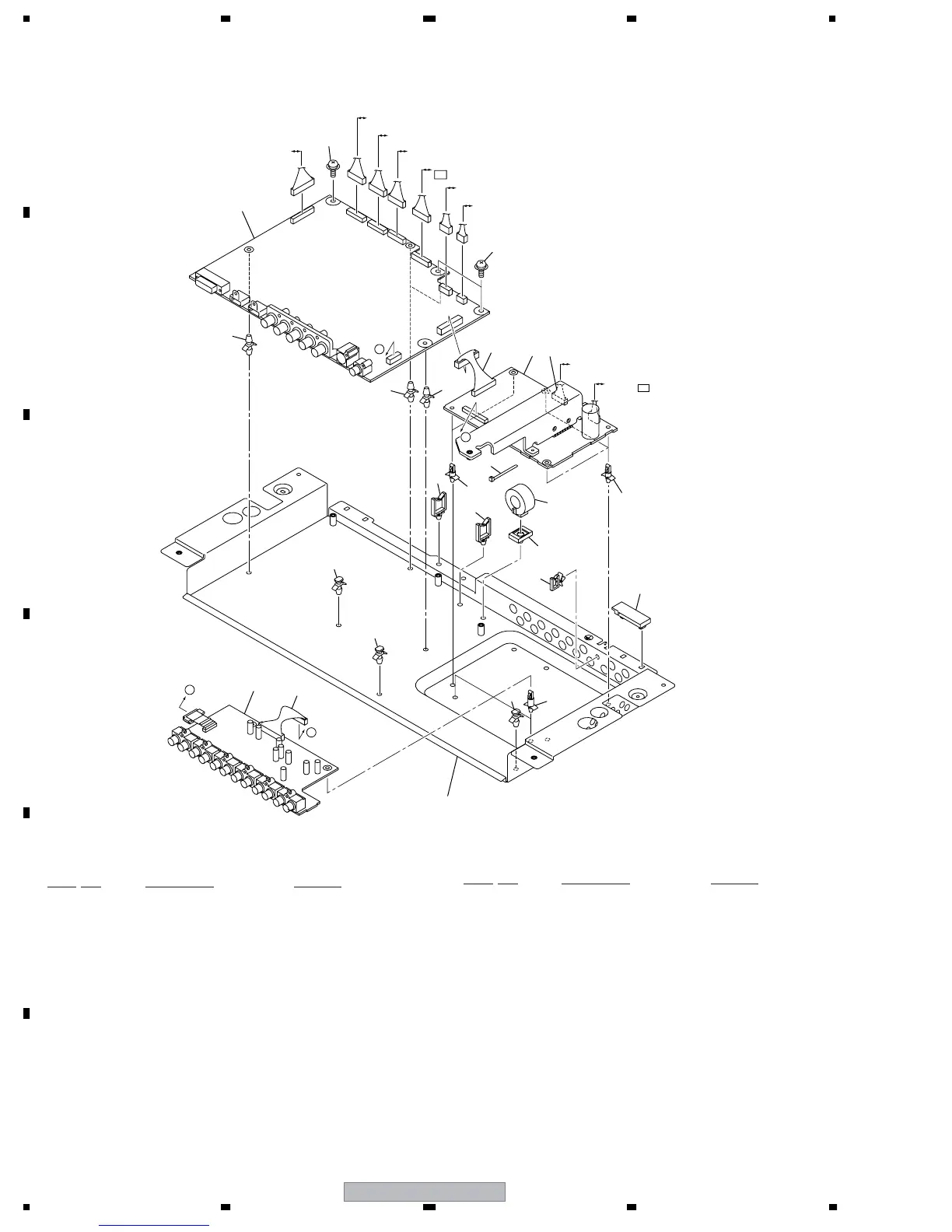

2.7 MULTI BASE SECTION
MULTI BASE SECTION PARTS LIST
A
A
B
B
LED
CN8601
RS232C+SR
CN8851
FHD DIGITAL
CN3703
FHD DIGITAL
CN3002
FHD DIGITAL
CN3001
FAN CONNECT
CN8651
POWER SUPPLY
SP LR1 CN8401
SP LR2 CN8501
P8
POWER
SUPPLY P5
10
15
18
18
10
5
2
7
1
10
14
14
12
17
13
11
16
9
4
8
3
6
12
11
11
Mark
No. Description Part No.
1 FHD MAIN Assy AWV2292
2 FHD POWER AMP Assy AWW1117
3 FHD PRE AUDIO Assy AWW1118
4Ferrite Core ATX1044
5 14P Housing Wire (J118) ADX3310
6 15P Housing Wire (J122) ADX3314
7 6P/3P Housing Wire (J123) ADX3315
8 Multi Base (F) ANA1936
9 Binder AEC-093
10 PCB Support AEC1215
NSP 11 PCB Support AEC1232
12 Wire Saddle AEC1745
13 Clamp AEC1884
14 PCB Spacer AEC1941
15 Circuit Board Spacer AEC1960
16 Wire Saddle AEC2031
17 Ferrite Core Holder AEC1818
18 Screw ABA1364
Mark
No. Description Part No.

Pioneer PDP-5000EX Specifications

General

Depth	98 mm
Width	1282 mm
Height	750 mm
Weight	39800 g
Pixel pitch	- mm
Product color	Black
Audio (L/R) in	1
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	50 \
Display brightness	1000 cd/m²
Display technology	Plasma
Power requirements	AC 110 - 240 V, 50/60 Hz
Contrast ratio (typical)	3000:1
Power consumption (standby)	0.4 W
Power consumption (typical)	420 W
