Pioneer PDP-5000EX Service Manual

PDP-5000EX
90
1234
1234
C
D
F
A
B
E
6. DISASSEMBLY

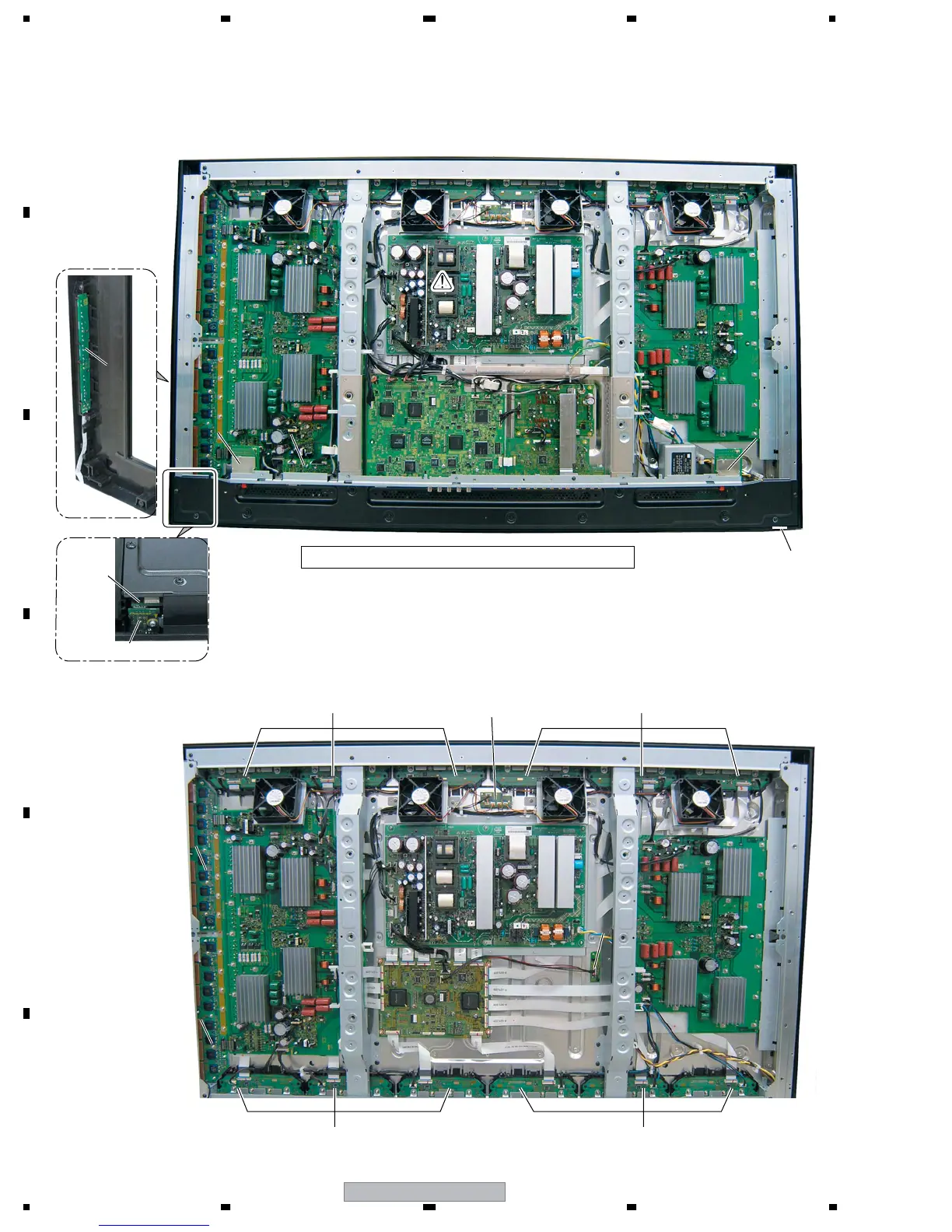

6.1 PCB LOCATION
Side of the front
case (inside)
FAN CONNECT Assy
50FHD ADDRESS B Assy
POWER SUPPLY Unit
POWER SUPPLY UnitPOWER SUPPLY UnitPOWER SUPPLY Unit
50FHD Y DRIVE Assy50FHD Y DRIVE Assy
50 FHD X DRIVE Assy50 FHD X DRIVE Assy
50FHD ADDRESS A Assy
50FHD ADDRESS B Assy50FHD ADDRESS A Assy
FHD MAIN AssyFHD MAIN Assy
FHD LED Assy
FHD IR Assy
PANEL SENSOR AssyPANEL SENSOR Assy
50FHD SCAN A
Assy
50FHD SCAN A
Assy
50FHD SCAN B
Assy
50FHD SCAN B
Assy
FHD DIGITAL AssyFHD DIGITAL Assy
FHD SP LR2 AssyFHD SP LR2 Assy
FHD POWER AMP Assy
FHD PRE AUDIO Assy
FHD POWER AMP Assy
FHD PRE AUDIO Assy
FHD KEY CONTROL
Assy
FHD KEY CONTROL
Assy
FHD Key AssyFHD Key Assy
FHD SP LR1 AssyFHD SP LR1 Assy
FHD RS232C+SR AssyFHD RS232C+SR Assy
∗ FHD SP LR1 Assy and FHD SP LR2 Assy can be replaced.

Pioneer PDP-5000EX Specifications

General

Depth	98 mm
Width	1282 mm
Height	750 mm
Weight	39800 g
Pixel pitch	- mm
Product color	Black
Audio (L/R) in	1
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	50 \
Display brightness	1000 cd/m²
Display technology	Plasma
Power requirements	AC 110 - 240 V, 50/60 Hz
Contrast ratio (typical)	3000:1
Power consumption (standby)	0.4 W
Power consumption (typical)	420 W
