Pioneer PDP-5000EX Service Manual

PDP-5000EX
14
1234
1234
C
D
F
A
B
E

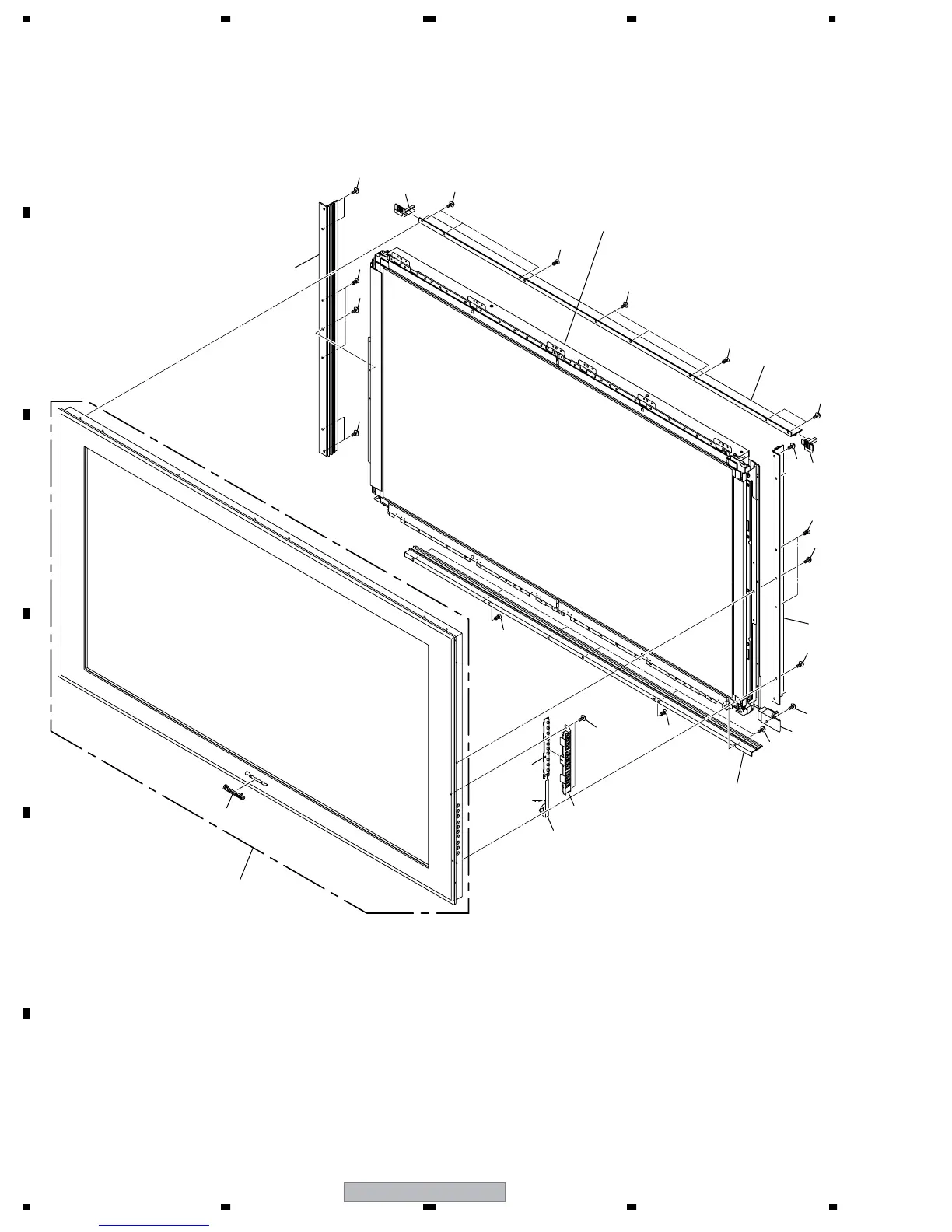

2.3 FRONT SECTION
KEY CONTROL
CN8802
4
1
2
5
14
7
8
9
14
14
14
11
13
3
13
14
14
14
14
14
10
8
14
14
14
13
13
13
6
13
Refer to
"2.4 CHASSIS SECTION (1/2)".

Pioneer PDP-5000EX Specifications

General

Depth	98 mm
Width	1282 mm
Height	750 mm
Weight	39800 g
Pixel pitch	- mm
Product color	Black
Audio (L/R) in	1
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	50 \
Display brightness	1000 cd/m²
Display technology	Plasma
Power requirements	AC 110 - 240 V, 50/60 Hz
Contrast ratio (typical)	3000:1
Power consumption (standby)	0.4 W
Power consumption (typical)	420 W
