PDP-5000EX
23
5678
56
7
8
C
D
F
A
B
E
50FHD SCAN A Assy
50FHD SCAN B Assy

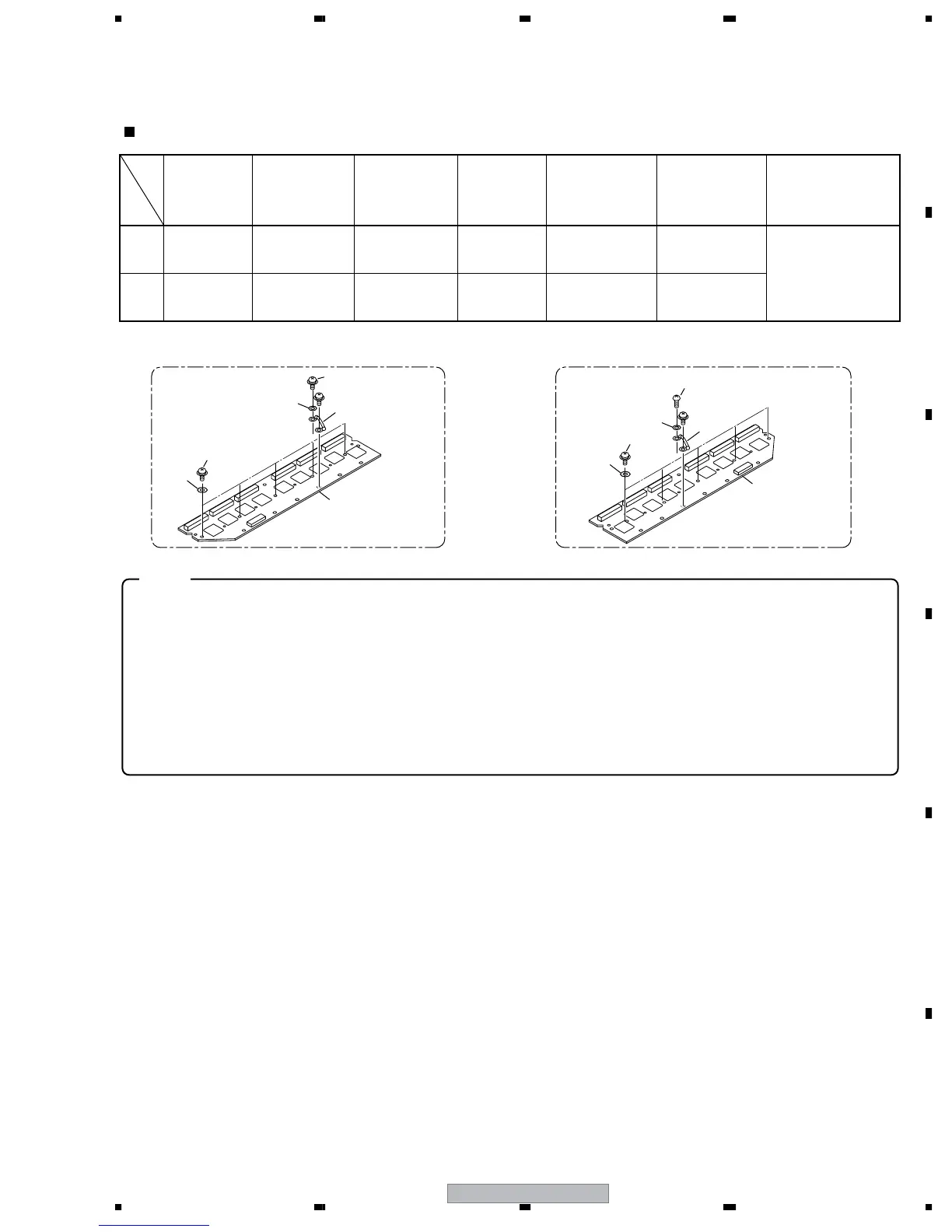

Differences in the old and new Panel Chassis Assys
[ NOTES ON THE PANEL CHASSIS ASSY ]
• There are two (new and old) types of the Panel Chassis Assys.
3
4
4
2
2
1
3
3
3
2
2
1
Panel chassis
Assy
1
50FHD SCAN A
Assy
2
Washer
(ABF1040)
3
Heatsink screw
4
Earth lead with
resistor
(R2781, R2881)
Note
Old AWU1152 AWW1129 Used PMH30P080FNI Used
Although there is a
screw with the
remove-this-screw
mark near the 3
Heatsink screw, never
remove this screw.
New AWU1201 AWW1229
1
50FHD SCAN B
Assy
AWW1130
AWW1230 Not used PMH30P060FNI Not used
Notes:
1 The old type of the Panel Chassis Assys was mounted in about the first 1090 units produced.
(As for PRO-FHD1, the old type of the Panel Chassis Assys was mounted in about the first 10 units produced.)
2 Either the old or new type of the SCAN Assy can be attached to a Panel Chassis Assy of the old type.
However, be careful of the following:
• When the old type of the SCAN Assy (50FHD SCAN A Assy: AWW1129, 50FHD SCAN B Assy: AWW1130) is used,
a ground wire with resistance is attached. After replacing the SCAN A/B Assy, be sure to secure the ground wire with
resistance as it was originally. (Be careful not to mix up the washers.)
• When the new type of the SCAN Assy (50FHD SCAN A Assy: AWW1229, 50FHD SCAN B Assy: AWW1230) is used,
a ground wire with resistance is not attached. Attaching a ground wire with resistance is not required after
replacement of the SCAN Assy.
To Next Page
