PDP-5000EX
4
1234
1234
C
D
F
A
B
E

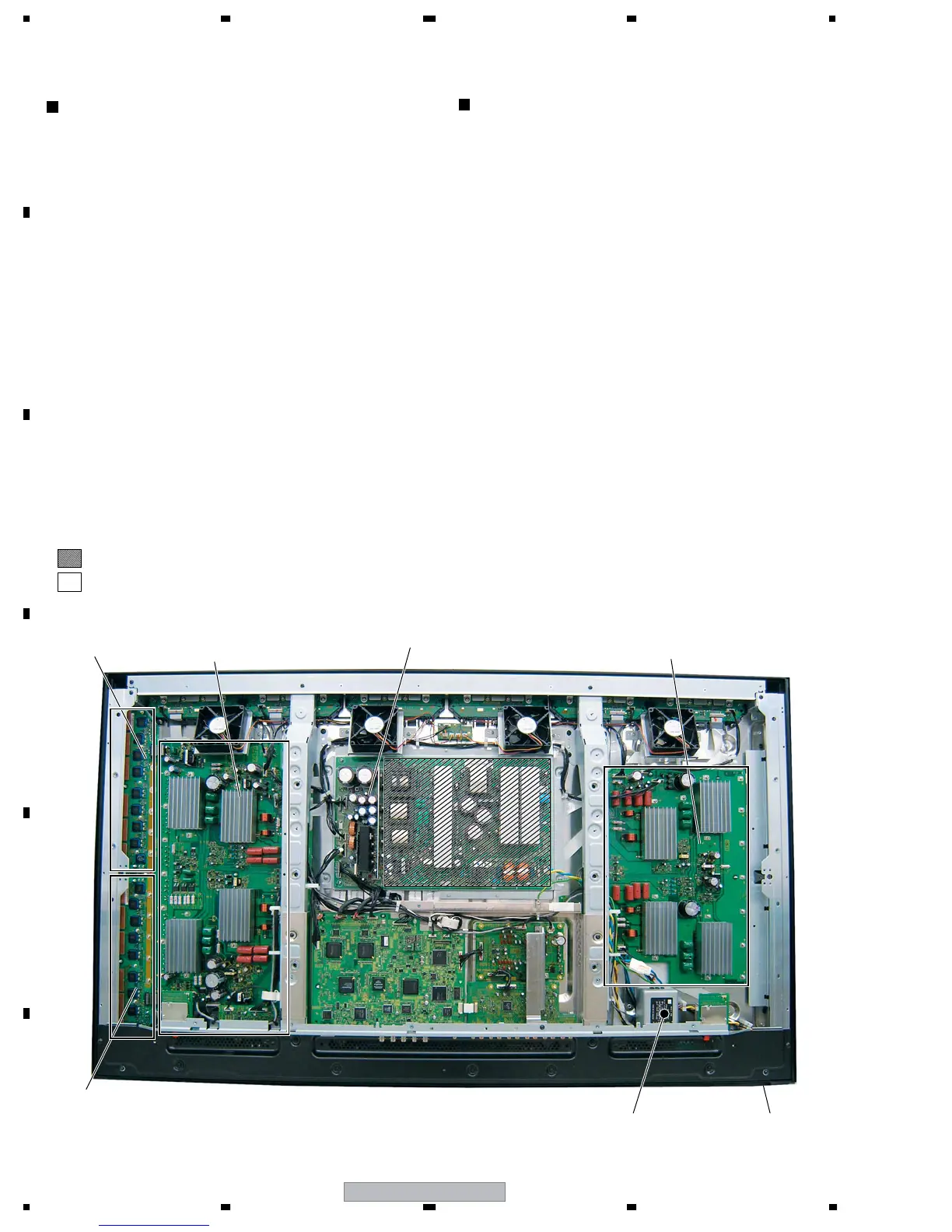

Fig.2 Charged Section and High Voltage Generating Point (Rear View)
Charged Section
The places where the commercial AC power is used without
passing through the power supply transformer.
If the places are touched, there is a risk of electric shock. In
addition, the measuring equipment can be damaged if it is
connected to the GND of the charged section and the GND of the
non-charged section while connecting the set directly to the
commercial AC power supply. Therefore, be sure to connect the
set via an insulated transformer and supply the current.
1. AC Power Cord
2. AC Inlet with Filter
3. Power Switch (S1)
4. Fuse (In the PANEL POWER SUPPLY Unit and MR POWER
SUPPLY Unit)
5. STB Transformer and Converter Transformer
(In the PANEL POWER SUPPLY Unit and MR POWER
SUPPLY Unit)
6. Other primary side of the PANEL POWER SUPPLY Unit and
MR POWER SUPPLY Unit
High Voltage Generating Point
The places where voltage is 100V or more except for the charged
places described above. If the places are touched, there is a risk of
electric shock.
If the procedures described in “10.2 POWER ON/OFF
FUNCTION FOR THE LARGE-SIGNAL SYSTEM” are
performed before the power is turned off, the voltage will be
discharged in about 1 minutes.
1. POWER SUPPLY Unit................................................. (205 V)
2. 50FHD X DRIVE Assy ................................ (–180 V to 205 V)
3. 50 FHD Y DRIVE Assy ...................................(–60 V to 500 V)
4. 50FHD SCAN A Assy ....................................(–60 V to 500 V)
5. 50FHD SCAN B Assy ....................................(–60 V to 500 V)
: Part is the High Voltage Generating Points
other than the Charged Section.
: Part is Charged Section.
50FHD SCAN B Assy
Power Switch (S1)
50 FHD Y DRIVE Assy
50FHD X DRIVE Assy
AC Inlet
POWER SUPPLY Unit
50 FHD SCAN A Assy50FHD SCAN A Assy
To Next Page
