PDP-5000EX
7
5678
56
7
8
C
D
F
A
B
E
Structure of Layers in Service Factory Mode
INFORMATION mode
1. VERSION (1)
Version indications for the main system and panel system
2. MAIN NG Shutdown history for the main system (To shift to the
CLEAR layer, press [SET].)
2-1.CLEAR To clear data, select "YES", using [|] or [\], then hold
[SET] pressed for several seconds.
3. TEMPERATURE Indications of converted temperature values for
temperature sensors 1 and 2 and fan operation
4. HOUR METER Indications of the accumulated power-on time and
power-on count of the panel
5. HDMI SIGNAL INFO 1 Items for use by engineers
6. HDMI SIGNAL INFO 2 Indications of data such as HDMI signal judgment
(For details, see the corresponding page.)
7. VDEC SIGNAL INFO Items for use by engineers
PANEL FACTORY mode See "Structure of Layers in Panel Factory Mode."
INITIALIZE
1. SYNC DET (+) Items for use by engineers
2. SG MODE ON/OFF of the SG signal from the MAIN VDEC
(composite input signal required)
3. SG PATTERN SG Selection of the SG signal
4. SIDE MASK LEVEL (+) Items for use by engineers
4-1. R MASK LEVEL
4-2. G MASK LEVEL
4-3. B MASK LEVEL
5. FINAL SETUP Factory-preset items (Setup must be executed after
replacement of the Main Assy.)
5-1. DATA RESET
6. HDMI INTER POSITION (+) Items for use by engineers
PDP-5000EX Quick Reference upon Service Visit 2
Mode transition and structure of layers in Service Factory mode
Structure of Layers in Panel Factory Mode 1
1. PANEL INFORMATION Version indication of the panel
2. PANEL WORKS Indications of the accumulated power-on time, pulse-meter
count, and power-on count of the panel
3. POWER DOWN Indication of the Power-down history
4. SHUT DOWN Indication of the Shutdown history
5. PANEL-1 ADJ (+)
1. X-SUS B
2. Y-SUS B
3. Y-SUSTAIL T1
4. Y-SUSTAIL T2 Modification not required because these items are basically
5. Y-SUSTAIL W for factory presetting
6. XY-RST W1
7. XY-RST W2
8. VOL SUS
9. VOL OFFSET Settings required after replacement of the panel
10. VOL RST P
11. SUS FREQ. For AM noise prevention (Depending on the mode,
brightness of the screen changes.)
6. PANEL-2 ADJ (+)
1. R-HIGH
2. G-HIGH
3 .B-HIGH Parameters for the WB adjustment of the panel, which are
4. R-LOW required during adjustment after panel replacement
5. G-LOW
6. B-LOW
7. ABL Setting of the power consumption. A setting table is
available for each vertical signal.
To "Structure of Layers in Panel Factory Mode 2"
Structure of Layers in Panel Factory Mode 2
7. PANEL REVISE(+)
R-LEVEL
G-LEVEL Items for use by engineers
B-LEVEL
8. ETC(+)
1. BACKUP DATA For transferring backup data (after replacement of
the DIGITAL Assy)
2. DIGITAL EEPROM To clear data of the digital video
3. PD INFO.
4. SD INFO. For clearance of data for the corresponding items.
5. HR-MTR INFO. The clearing method is the same: Select "CLEAR",
6. PM/B1-B5 using [\], then hold [SET] pressed for at least 5
7. P COUNT INFO. seconds. After clearance is completed, {ETC} is
8. MAX TEMP. automatically selected.
9. RASTER MASK SETUP (+)
1. MASK OFF
2. RST MASK 01 For use while Raster Mask (full mask) is displayed.
• • • • • Use [»] or [«] to select the type of mask.
25. RST MASK 24
10. PATTEN MASK SETUP (+)
1. MASK OFF
2. PTN MASK 01 For use while Pattern Mask is displayed. Use [»] or
• • • • • [«] to select the type of mask.
40. PTN MASK 39
11. COMBI MASK SETUP (+)
1. MASK OFF
2. CMB MASK 01 For use while Combination Mask is displayed.
• • • • • Use [»] or [«] to select the type of mask.
11. CMB MASK 10
INFORMATION mode
1. VERSION (1)
2. MAIN NG
3. TEMPERATURE
4. HOUR METER
5. HDMI SIGNAL INFO1
6. HDMI SIGNAL INFO2
7. VDEC SIGNAL INFO
INITIALIZE mode
1. SYNC DET
2. SG MODE
3. SG PATTERN
4. SIDE MASK LEVEL
5. FINAL SETUP
6. HDMI INTR POSITION
PANEL FACTORY mode
1. PANEL INFORMATION
2. PANEL WORKS
3. POWER DOWN
4. SHUT DOWN
5. PANEL-1 ADJ
6. PANEL-2 ADJ
7. PANEL REVICE
8. ETC.
9. RASTER MASK SETUP
10. PATTEN MASK SETUP
11. COMBI MASK SETUP
Up
Down
• To shift to another mode, press [MUTING].
• To shift to another item in a specific mode,
press [»] or [«].
• To shift to the next nested layer below for an
item with a "(+)" indication, press [ENTER].
To return to the next nested layer above,
also press [ENTER].

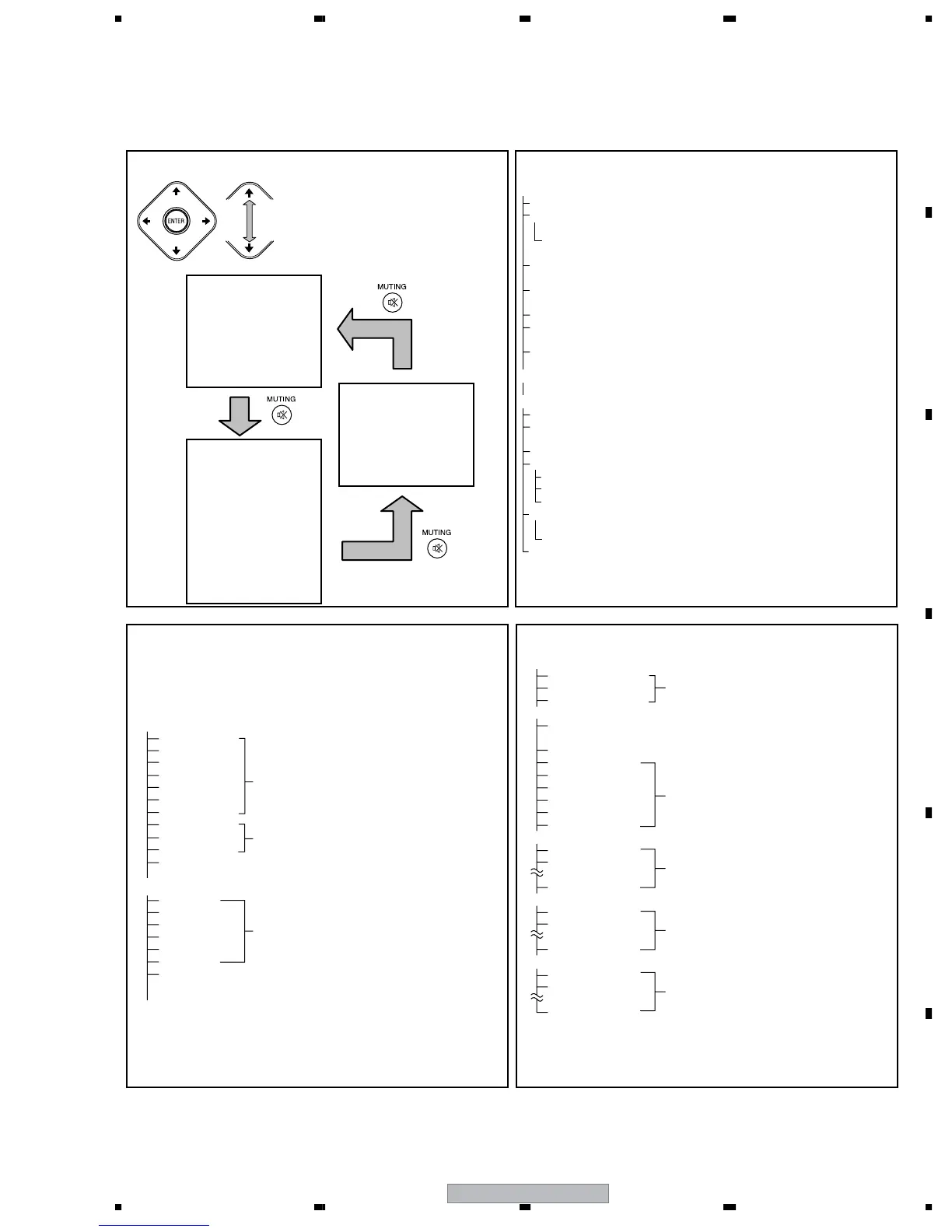

Mode transition in Service Factory mode
To Next Page
