Pioneer PDP-5000EX Service Manual

PDP-5000EX
97
5678
56
7
8
C
D
F
A
B
E

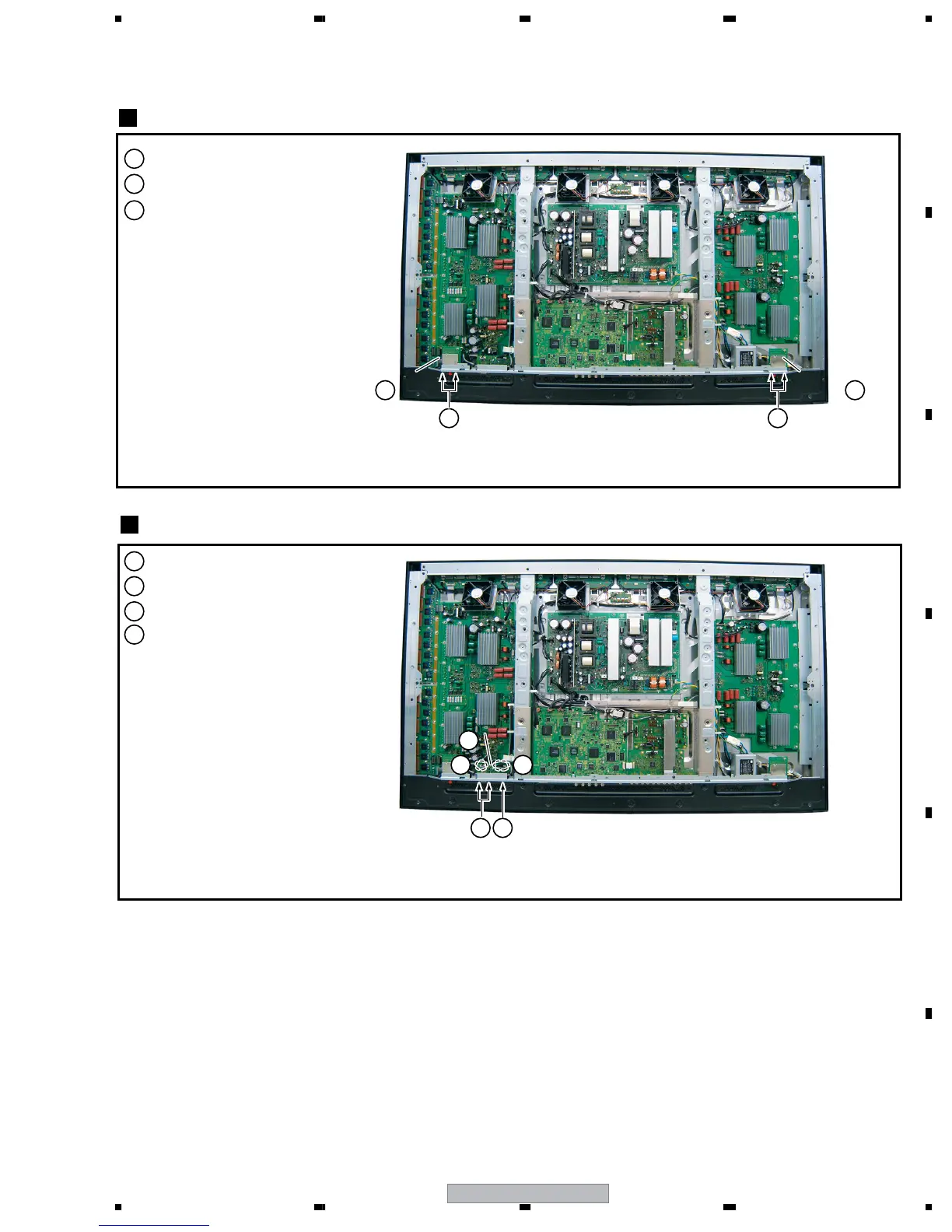

FHD SP1, FHD SP2 Assys
2 -10
1
1
Remove the two screws.
3
Disconnect the one connectors.
Remove the FHD SP1 Assy (FHD SP2 Assy) .
2
1
Remove the one screws.
2
Remove the two hex head screws.
4
Disconnect the two connectors.
Remove the FHD RS232C+SR Assy.
3
2 2
1
FHD RS232C+SR Assy
2 -11
FHD SP1 AssyFHD SP1 Assy FHD SP1 Assy
FHD SP1 Assy
FHD SP2 Assy
3
2
FHD RS232C+SR AssyFHD RS232C+SR Assy
1
44

Pioneer PDP-5000EX Specifications

General

Depth	98 mm
Width	1282 mm
Height	750 mm
Weight	39800 g
Pixel pitch	- mm
Product color	Black
Audio (L/R) in	1
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	50 \
Display brightness	1000 cd/m²
Display technology	Plasma
Power requirements	AC 110 - 240 V, 50/60 Hz
Contrast ratio (typical)	3000:1
Power consumption (standby)	0.4 W
Power consumption (typical)	420 W
