Internet Telephony PBX System
IPX-2500

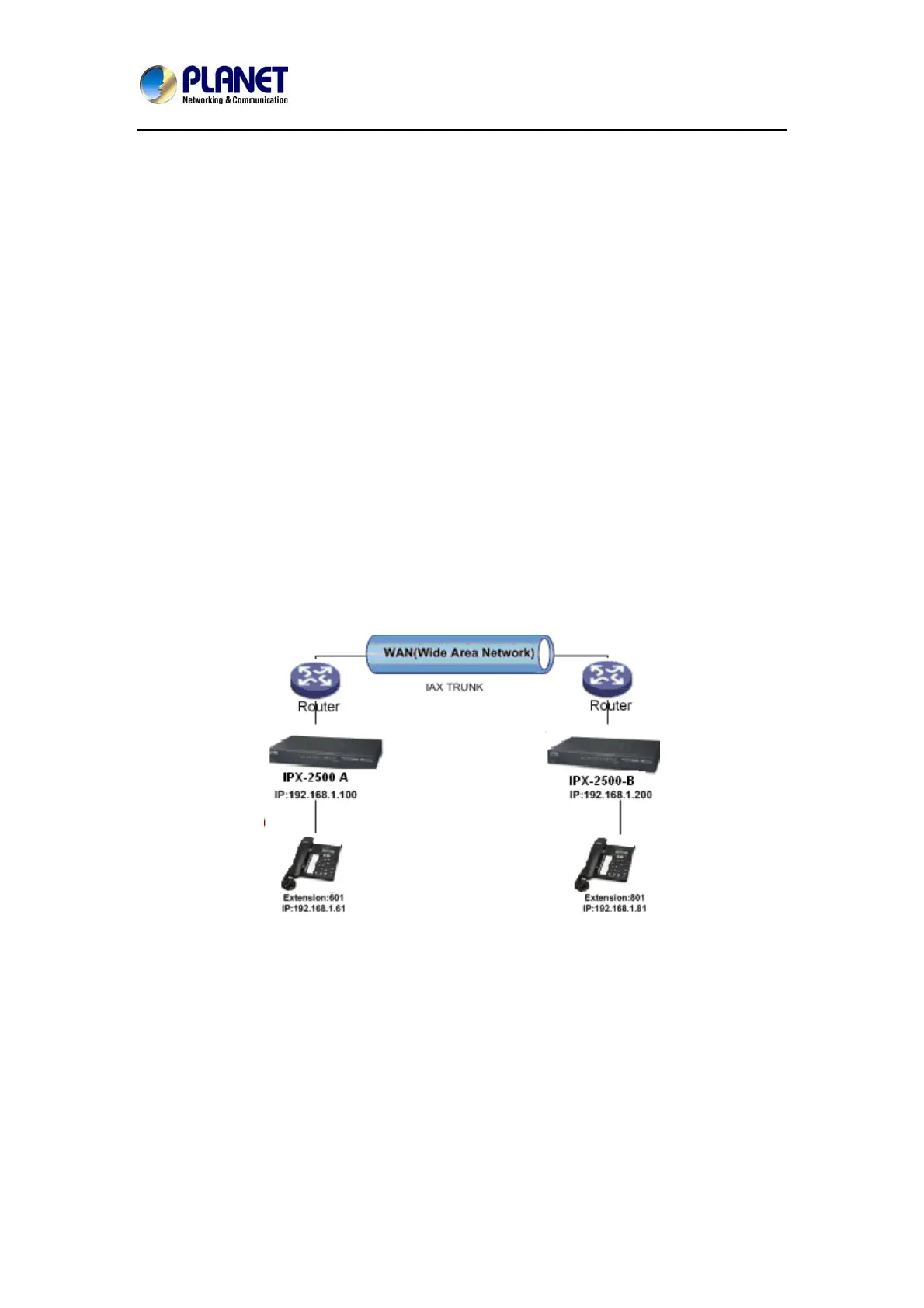

Register IPX-2500-B IP to a trunk of IPX-2500-A with authentication.
Configuration Rule:
1. IP Phone registers on IPX-2500-A as extension 601.
1. Another IP Phone registers on U50-B as extension 801.
2. IPX-2500-A IP:192.168.1.100.
3. IPX-2500-B IP:192.168.1.200.
4. Extension format of IPX-2500-A: 6XX.
5. Extension format of IPX-2500-B: 8XX
6. Create an extension 888 with password 123456 on IPX-2500-B.
7. All extensions on IPX-2500-A can call extensions on IPX-2500-B with format 8XX.
8. All extensions on IPX-2500-B can call extensions on IPX-2500-A with format 6XX.
For detailed steps, please take chapter 8.2 as reference.
Two sets of IPX-2500 behind router
Sometimes the IPX-2500 doesn’t have a public IP address, and you have to configure port
mapping for your router.
Step1: Configure the mapping rule of IPX-2500-A on the router.
The IPX-2500-B is connected behind the router, and registers on IPX-2500-A through internet.
You need to configure the port mapping of IAX2 port(4569) on the router. Then, all data
received from eth0 port of router (192.168.1.100:4569) will be sent to IPX-2500-A
Now, take the web management panel of AND-4100 router as an example.
In here both UTP and TCP must open for IP PBX.
