4.4.1.1 LAN Setup

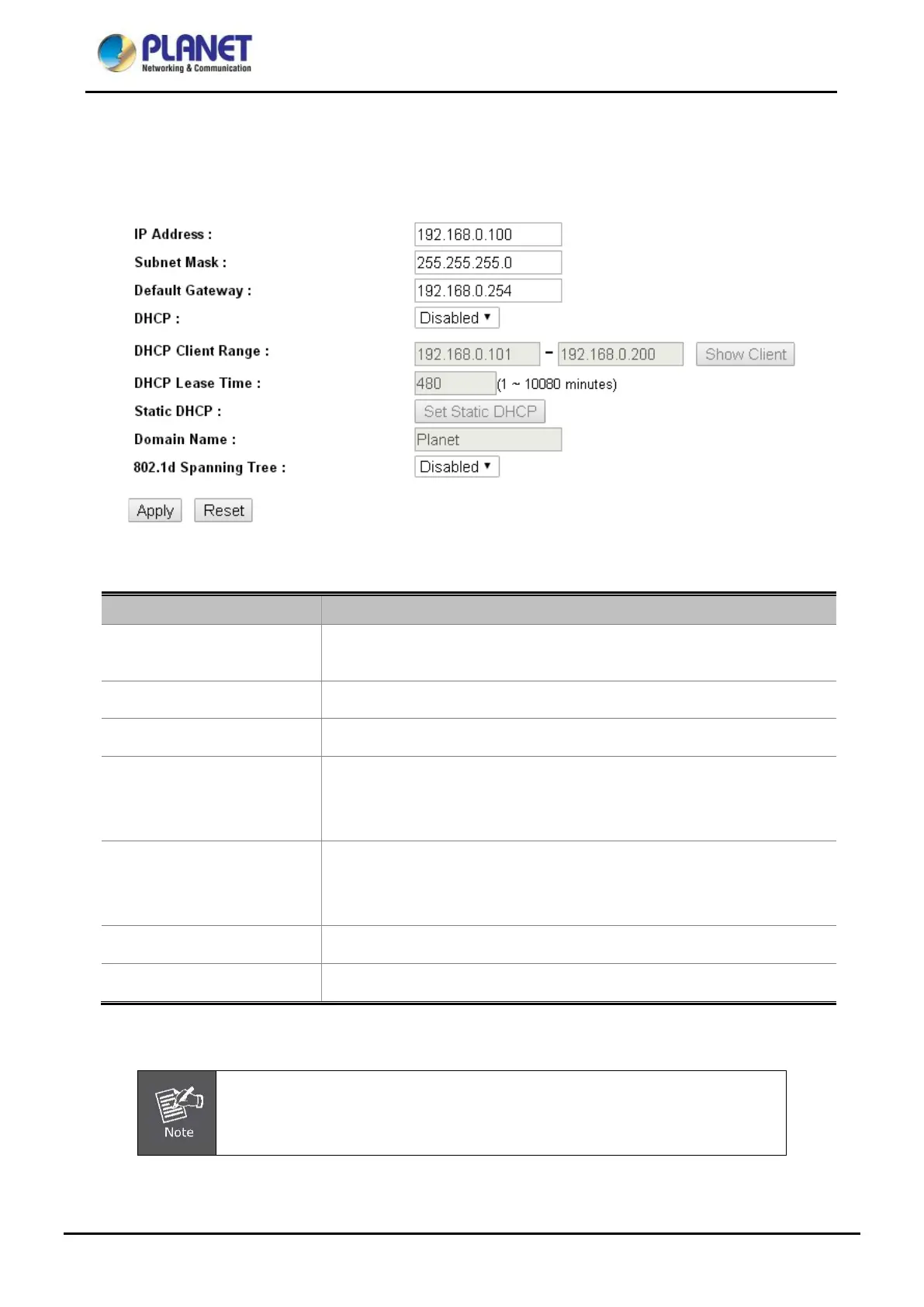

This page is used to configure the parameters for local area network which connects to the LAN port of your
Access Point as the screen in Figure 4-4-3 appears. Table 4-4-2 describes the LAN Objects Screen of
Renewable Energy Switch. Here you may change the setting for IP address, subnet mask, DHCP, etc.
Figure 4-4-
3
: LAN Interface Setup Web Page Screen
Object Description
IP Address
The LAN IP address of the Renewable Energy Switch and default is
192.168.0.100. You can change it according to your request.
Subnet Mask Default is 255.255.255.0. You can change it according to your request.
Default Gateway Default is 192.168.0.254. You can change it according to your request.
DHCP
You can select one of them -- Disable, Client, or Server. Default is
Server -- the Renewable Energy Switch can assign IP addresses to the
computers automatically.
DHCP Client Range
For the Server mode, you must enter the DHCP client IP address range
in the field. And you can click the “Show Client” button to show the
Active DHCP Client Table.
Domain Name
Default is Planet.
802.1d Spanning Tree
You can enable or disable the spanning tree function.
Table 4-4-
2
: Descriptions of the DDNS Objects
If you change the device’s LAN IP address, you must enter the new one in your
browser to get back to the web-
based configuration utility. And LAN PCs’ gateway
must be set to this new IP for successful Internet connection.

Planet Switch Specifications

General

Form Factor	Desktop
Port Speed	10/100/1000 Mbps
MAC Address Table	8K
Switching Capacity	16 Gbps
Operating Temperature	0 to 50°C
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
