Industrial Renewable Energy 4-Port 10/100/1000T
802.3at PoE+ Managed Ethernet Switch/Router
BSP-360
58
4.6.1 PoE Configuration
This section provides PoE (Power over Ethernet) Configuration and PoE output status of Renewable Energy
Switch as screen in Figure 4-6-2 appears. Table 4-6-1 describes the PoE Configuration objects of Renewable
Energy Switch.

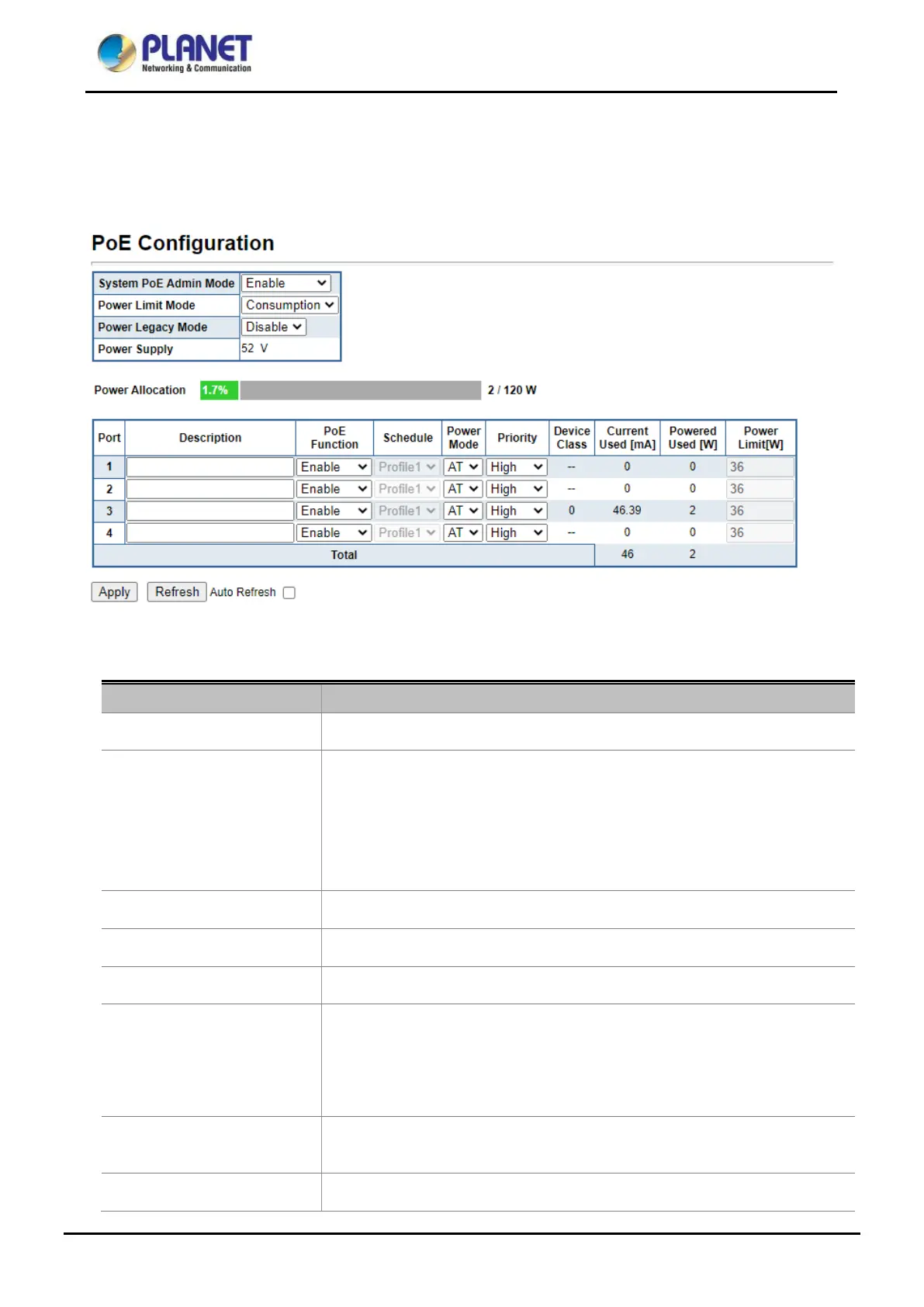

Figure 4-6-2: PoE Configuration Web Page Screen
Object Description
System PoE Admin Mode
Allows user to disable / enable PoE function.
Power Limit Mode
Allows user to configure power limit mode, which can be chosen.
Consumption: Based on the real device power consumption where PoE
power is delivered as system default setting is in this mode.
Allocation: Users are allowed to assign how much PoE power to each port
and the system will reserve PoE power to PD.
Power Legacy Mode
Allows user to configure power legacy mode for PoE output
Power Supply
Displays PoE power supply status.
Power Allocation
Displays the current total power consumption status.
Description
This function provides input per port description and the available letters
are 30.
NOTE: The total maximum letters are only 800. Punctuations and others
will be counted as 5 per word, like ‘, “, \, < and >.
PoE Function
Allows user to disable or enable per port PoE function, and also allows
users to choose schedule by enabling PoE Schedule function of each port.
Schedule
Indicates the scheduled profile mode. Possible profiles are:
To Next Page
